WEICHAI

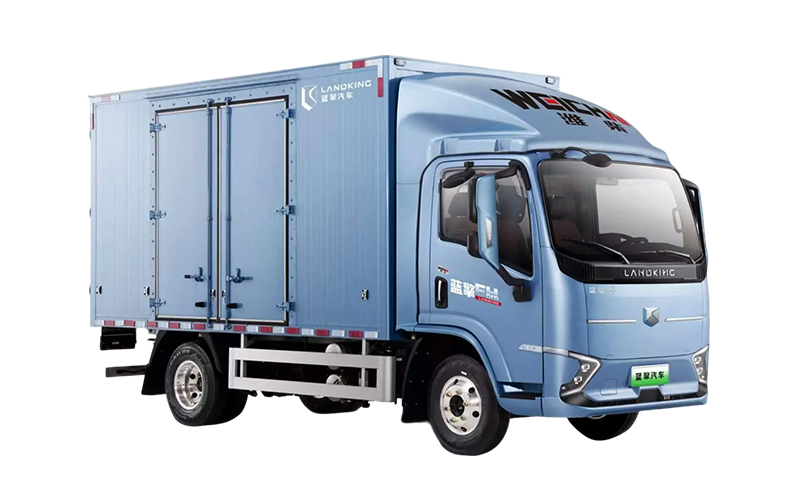

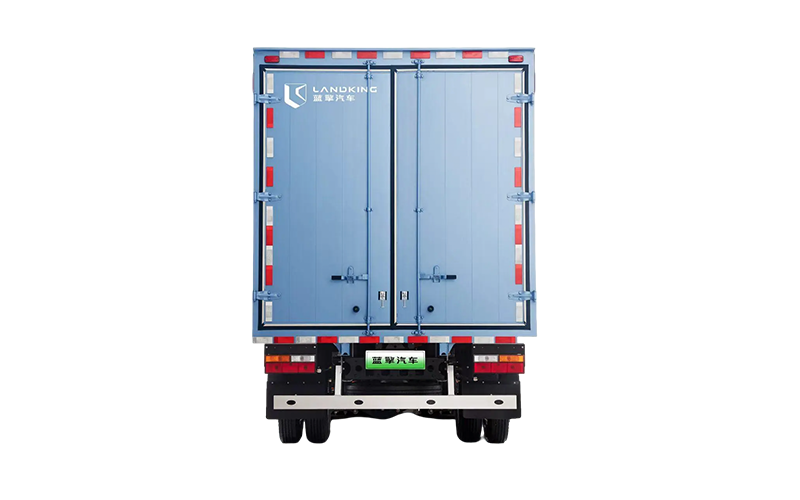

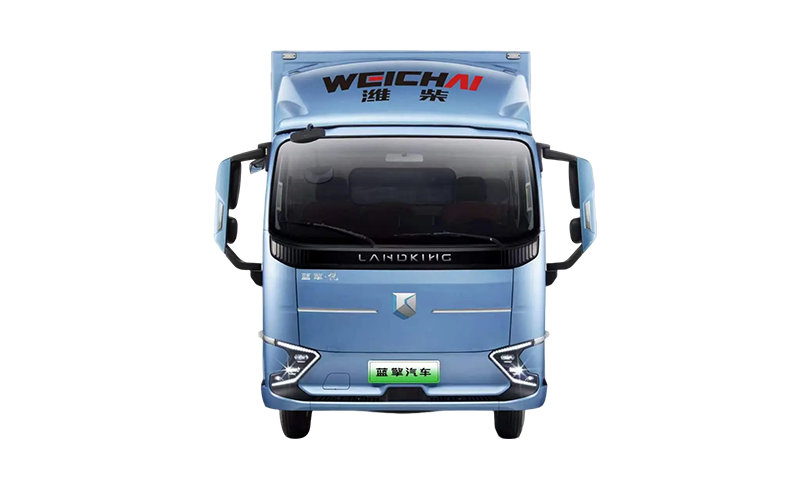

Weichai Landking EHPro

A new choice for metropolitan logistics.

Compatible with dropside, stake, box, and refrigerated configurations.

最大流量 L/min

额定流量 L/min

产品概述

Meeting the requirements for intercity and cross-city transport.

产品优势

Superior Load Capacity

Hande 8-ton reinforced rear axle housing, featuring a comprehensive upgrade in load-bearing performance.

180/193 specification straight beam chassis, structurally reinforced for greater load-bearing capacity.

Available with a Bosch 200 kW high-output motor, delivering a peak torque of 500 N·m for more powerful torque output.

Available with a Yida 185 kW dual-speed flat-wire motor, delivering a peak torque of 510 N·m for enhanced climbing performance.

Ultra-long range

Features a golden powertrain combination of Weichai FinDreams liquid-cooled blade battery, Inovance all-in-one electronic control, and Hande electric drive axle, offering a maximum comprehensive range exceeding 520 km.

Supports 3-level coasting energy recovery and braking energy regeneration, capturing electrical energy during operation to effectively reduce power consumption.

Safety and Peace of Mind

Hande front and rear axles feature a maintenance-free design, with long oil-change intervals of 300,000 km over 5 years.

Equipped with ABS + ASR (Acceleration Slip Regulation) as standard, with options for dual driving alerts and a 360° panoramic view system, providing multiple layers of protection for a safer driving experience.

产品规格

Product Model

Weichai Landking EHPro

Battery (Capacity Platform)

100/120/135/156 kWh capacity platforms (FinDreams)

Electric Motor (kW/N·m)

Inovance 165 kW/400 N·m single-speed motor, Hande 185 kW/510 N·m dual-speed motor, Bosch 200 kW/500 N·m single-speed motor

All-in-One Controller

Inovance/Bosch/Weichai

Rear Axle

5T/6T/8T rated load Hande maintenance-free rear axle

Frame (mm)

180/800 and 193/865 straight beams

Wheelbase (mm)

3360/3600

Brake System

Air brake

备注:产品参数及图片仅供参考;如有变动,不另行通知。
