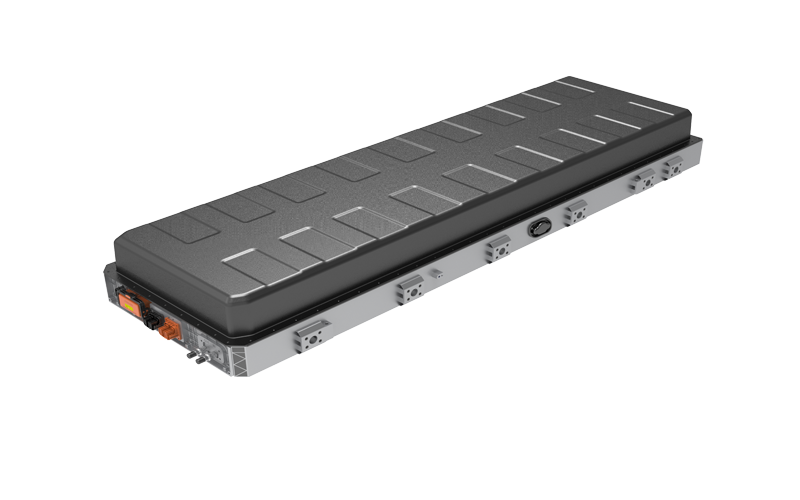

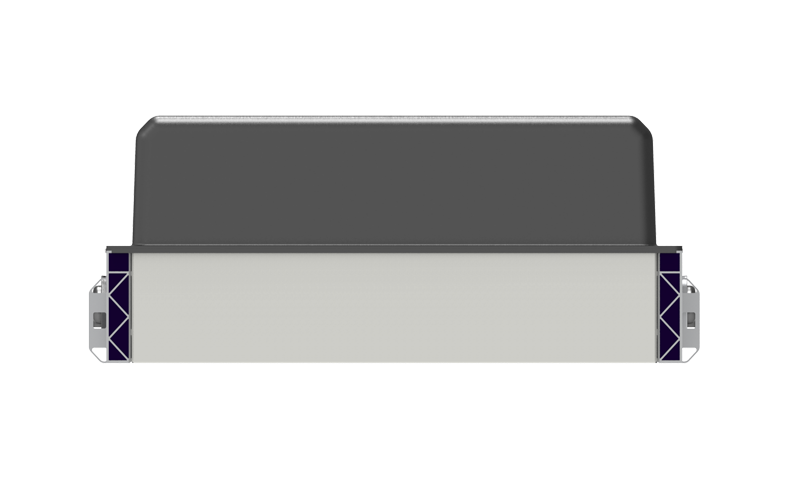

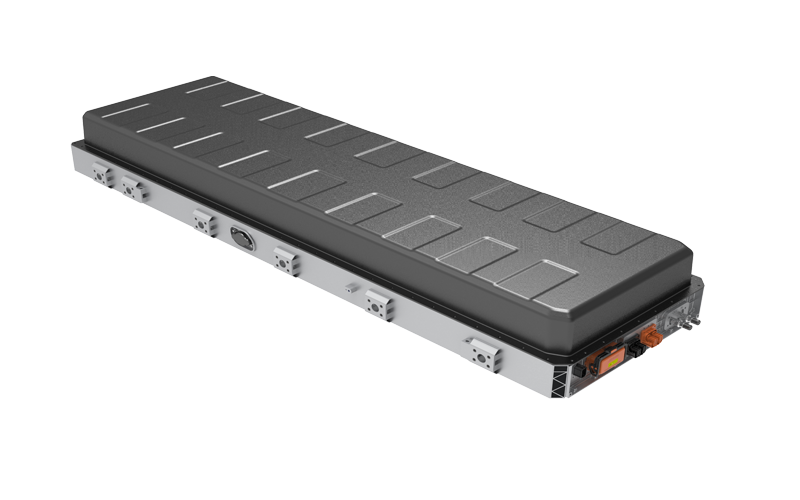

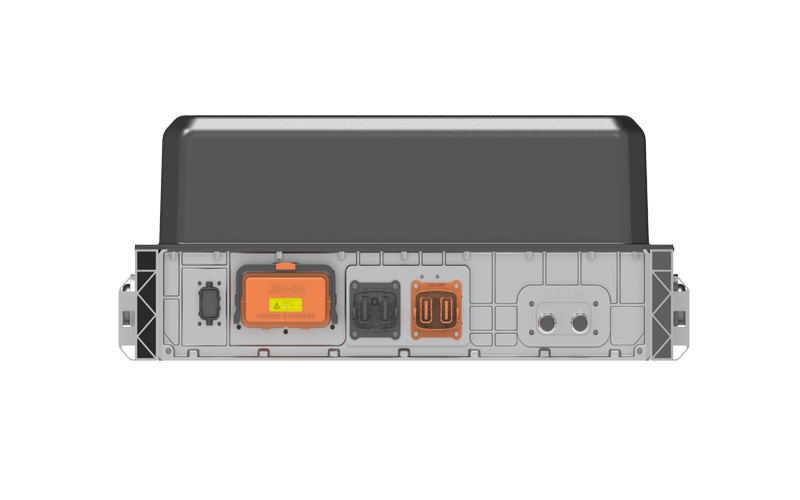

Light-Duty Truck Power Battery L100

电量覆盖 kWh

额定电压 v

产品手册下载服务图标

概述优势规格型谱表

产品概述

A battery system with comprehensive energy coverage and high mobility

产品优势

Higher voltage platform with reduced energy consumption.

Higher C-rate for shorter charging times.

Compact width for optimized vehicle integration.

Lightweight design for increased annual payload capacity.

产品规格

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Nominal Voltage (V)	Rated Capacity (Ah)	Energy per Pack (kWh)	Continuous Charging Rate	Continuous Discharging Rate	Weight (kg)	Overall Dimensions (mm)	Applications
L100	640	156.5	100	1.9C	1.9C	665±18	2300×732×275	Light-duty Truck
