Heavy-Duty Truck Power Battery H83

电量覆盖 kWh

额定电压 v

产品手册下载服务图标

概述优势规格型谱表

产品概述

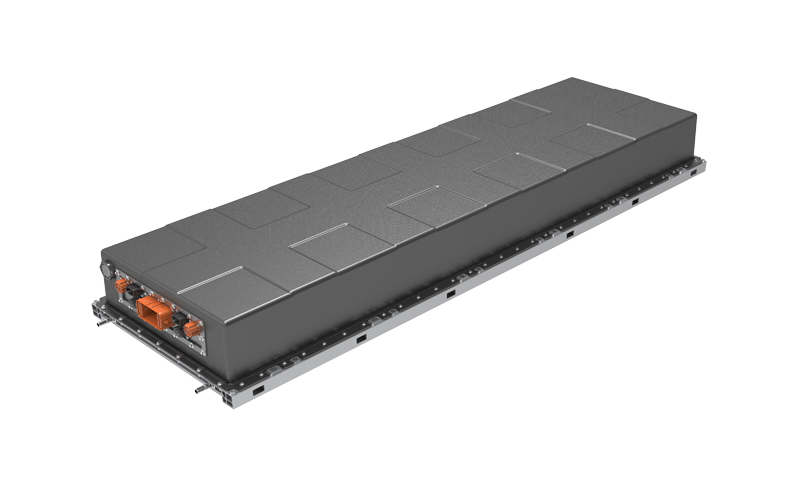

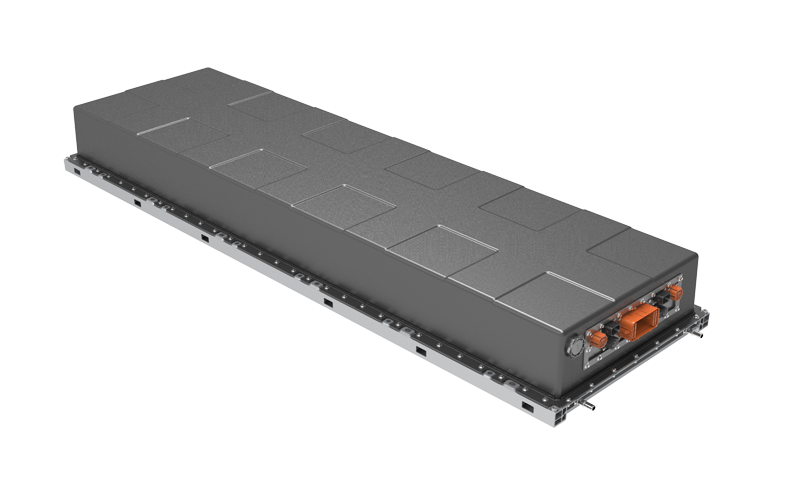

A standardized battery system with large energy capacity

产品优势

High-strength design: Honeycomb-like aluminum panel structure, meeting twice the duration of GB/T 31467.3 test conditions.

Extended service life: 4,500-cycle warranty life with minimal capacity degradation.

Broad temperature adaptability: Supports low-temperature charging at -20°C and full-range operation from -35°C to 65°C.

Comprehensive energy coverage: Energy capacity ranges from 165 kWh to 496 kWh, offering superior scalability.

产品规格

备注：产品参数及图片仅供参考；如有变动，不另行通知。

型谱表

Model	Nominal Voltage (V)	Rated Capacity (Ah)	Energy per Pack (kWh)	Continuous Charging Rate	Continuous Discharging Rate	Weight (kg)	Overall Dimensions (mm)	Applications
H83	332.8	248.5	83	1.2C	1.2C	517±15	2087×637×246	Heavy-duty Truck
