产品概述

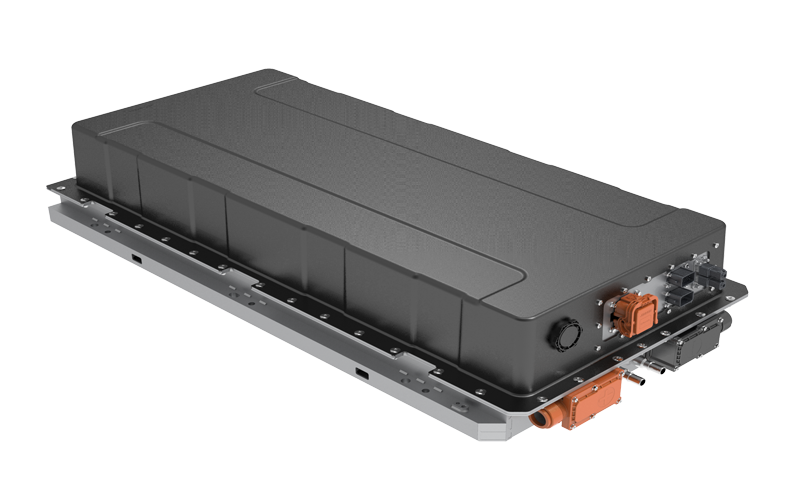

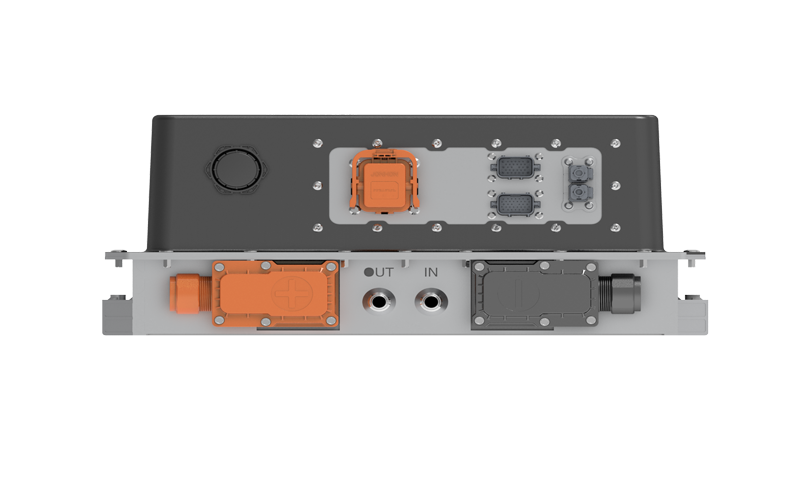

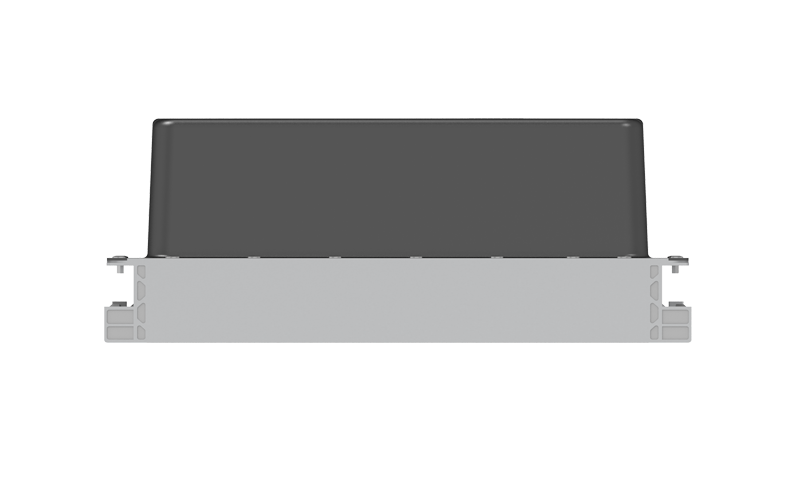

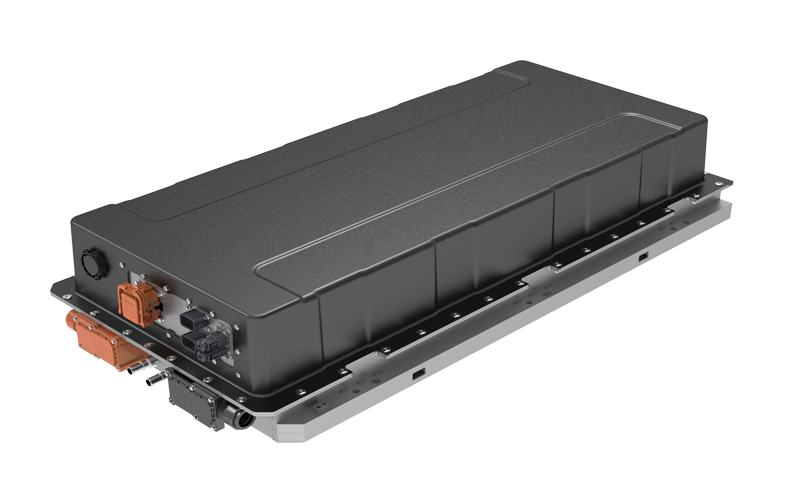

A 29 kWh hybrid battery system tailored for the construction machinery market
产品优势
Continuous charge/discharge rate of 4C, with a peak rate of 5C/6C; supports worry-free regenerative braking, with an SOC charging time of only 10 minutes from 20% to 80%.
Adapted to harsh environments with altitudes up to 5,500m and humidity ≥ 95%.
System cycle life reaches 7,000 cycles, meeting durability requirements for various application scenarios.
Enhanced pack rigidity, with vibration resistance meeting the 2.35g Z-axis requirement for mining truck applications.
Complies with stringent CASS anti-corrosion standards, ensuring adaptability to diverse harsh and corrosive environments.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Nominal Voltage (V) |
Rated Capacity (Ah) |
Energy per Pack (kWh) |
Continuous Charging Rate |
Continuous Discharging Rate |
Weight (kg) |
Overall Dimensions (mm) |
Applications |
|
D29 |
320 |
90 |
29 |
4C(360A) |
4C(360A) |
245 ± 7.2 |
1220×580×250 |
Loaders, excavators, mining trucks, etc. |
