WEICHAI

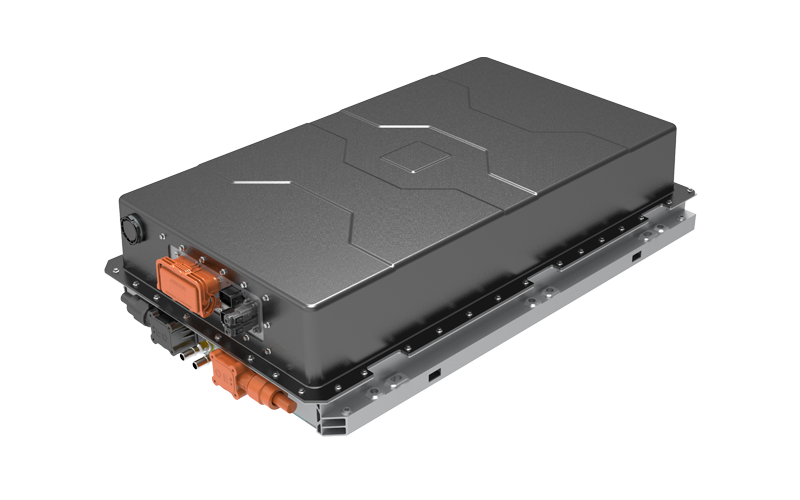

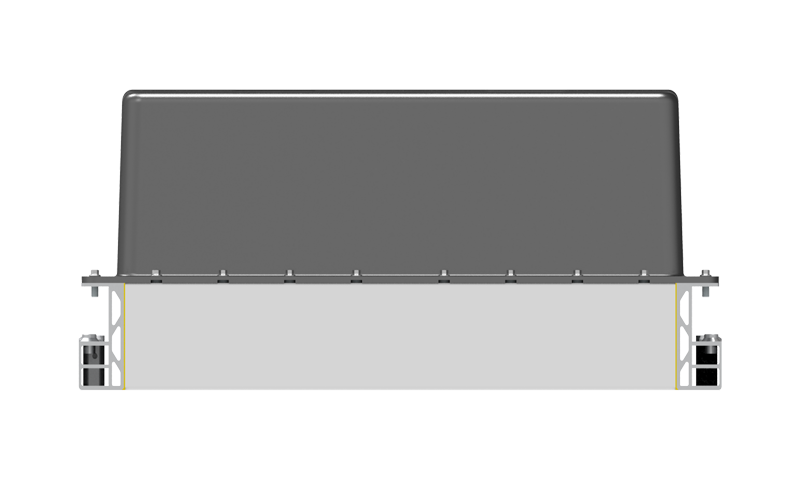

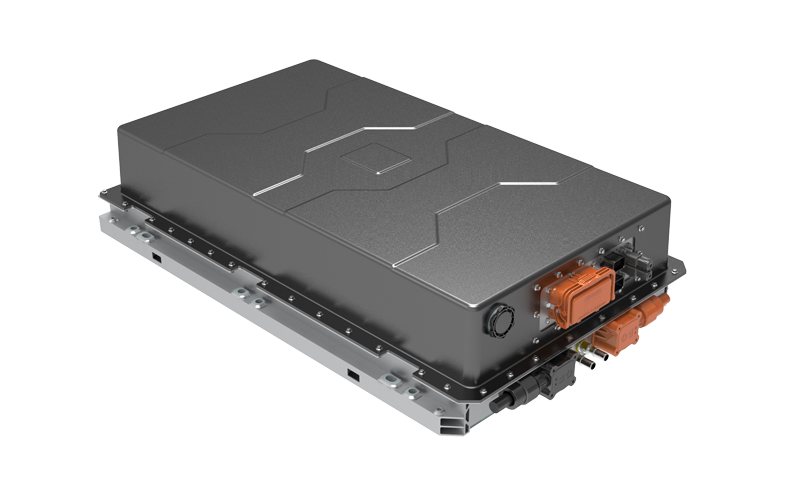

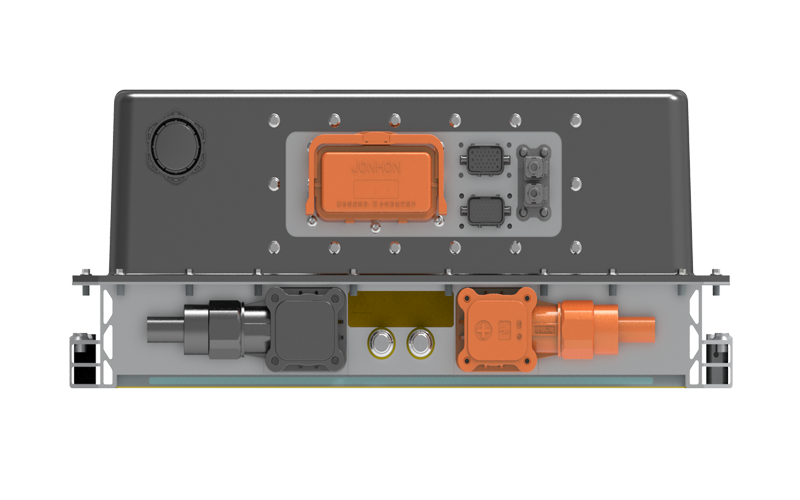

Mining Dump Truck Power Battery H37B

30-1000

电量覆盖 kWh

112

额定电压 v

产品概述

A battery system with comprehensive energy coverage and high mobility

产品优势

Supports 400A fast charging and -20°C charging, with a 60% increase in charging capability.

Adapted to harsh environments with altitudes up to 5,500m and humidity ≥ 95%.

System cycle life reaches 4,500 cycles, a 60% improvement.

Ultra-high vibration resistance, meeting the 2.8g Z-axis requirement for mining truck applications to withstand severe operating conditions.

Complies with stringent CASS international anti-corrosion standards, ensuring adaptability to diverse harsh and corrosive environments.

Full-spectrum energy coverage from 30 to 1000 kWh, providing broader selection options.

产品规格

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Nominal Voltage (V)

Rated Capacity (Ah)

Energy per Pack (kWh)

Continuous Charging Rate

Continuous Discharging Rate

Weight (kg)

Overall Dimensions (mm)

Applications

H37B

112

332

37

1.2C

1.2C

232 ± 6.7

1060×630×245

Loaders, excavators, mining trucks, etc.
