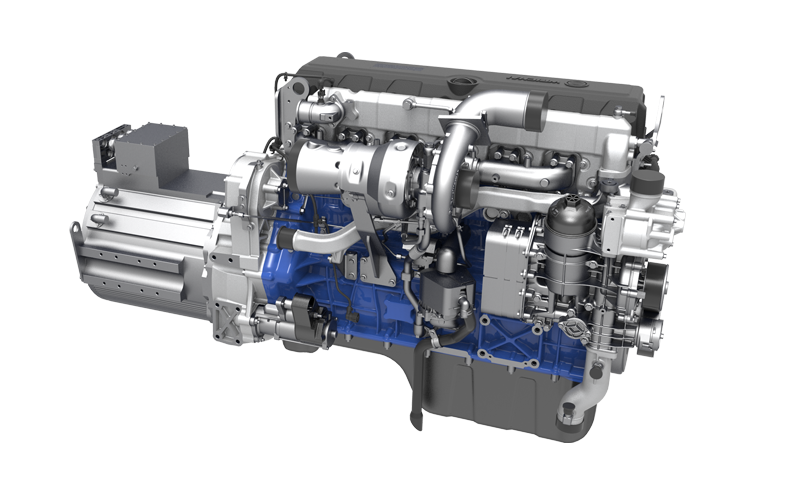

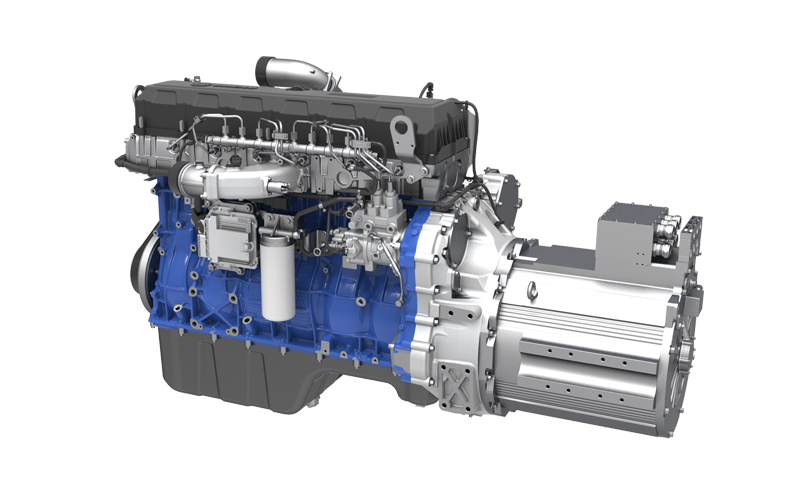

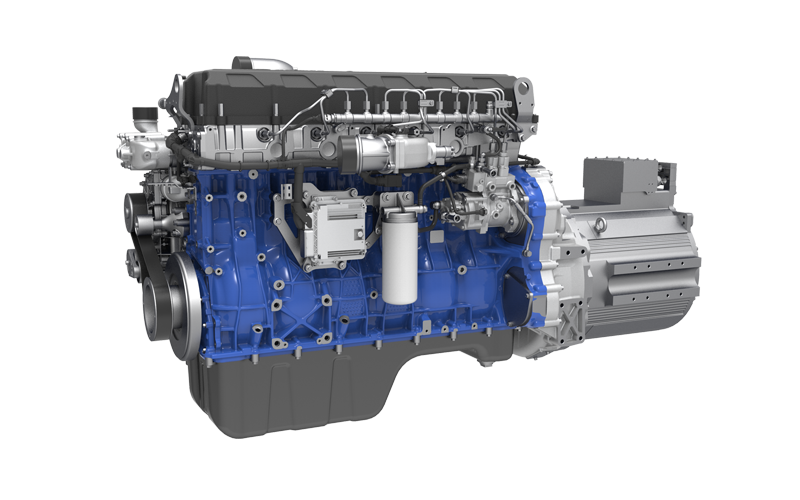

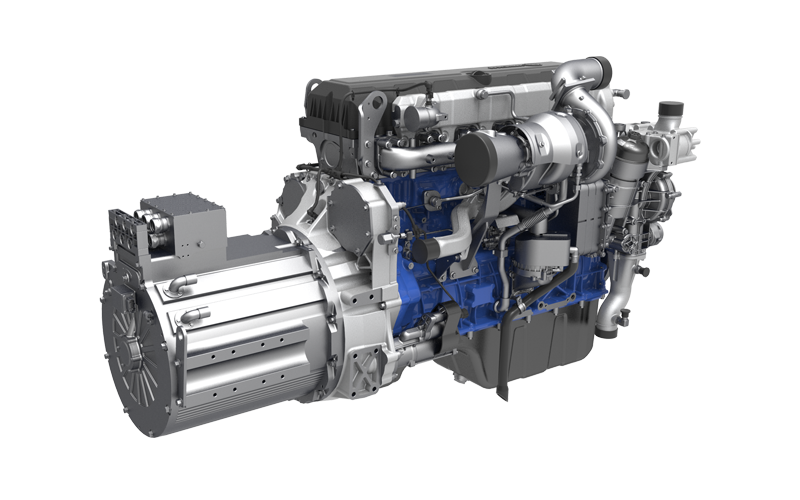

400kW Range Extender for Mining Trucks

Power performance: Powered by a WP14T engine, with a rated generation power of 400 kW, effectively improving the vehicle's electrical power supply capacity; Supports multiple control modes including single-point, multi-point, and power-following to adapt to complex operating requirements.

Economic efficiency: Power generation efficiency can reach 4.6 kW·h/L, resulting in higher fuel utilization and reduced user operating costs; The product features a split clutch/coupling structure, which facilitates easier maintenance and heat dissipation, thereby enhancing system stability.

Lightweight design: The total weight of the unit is 1563 kg, outperforming competing products, which improves vehicle range and maneuverability; The range extender dimensions are 1980 * 990 * 1180 mm, which is superior to competing products, saving vehicle space and facilitating better installation.

Reliability: Start-stop function optimized so the RCU directs the engine to idle-drag before shutdown upon receiving VCU instructions, extending component life; The B10 lifespan reaches 20,000 hours, meeting the requirements of harsh operating environments and demonstrating high reliability.
