产品概述

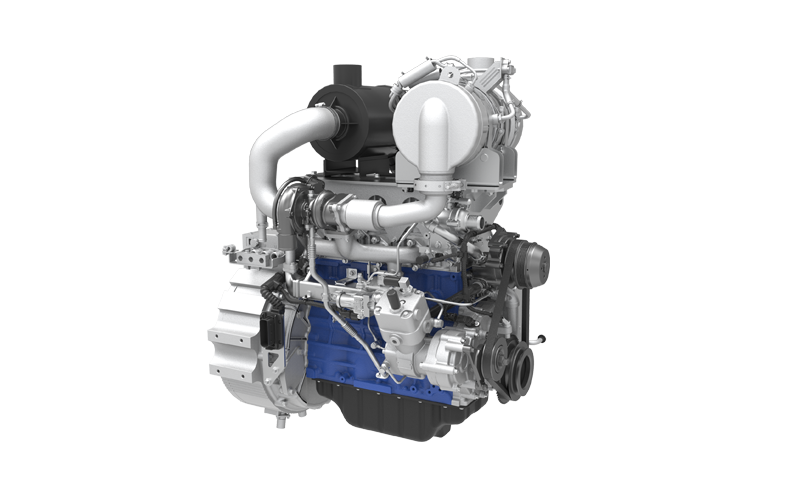

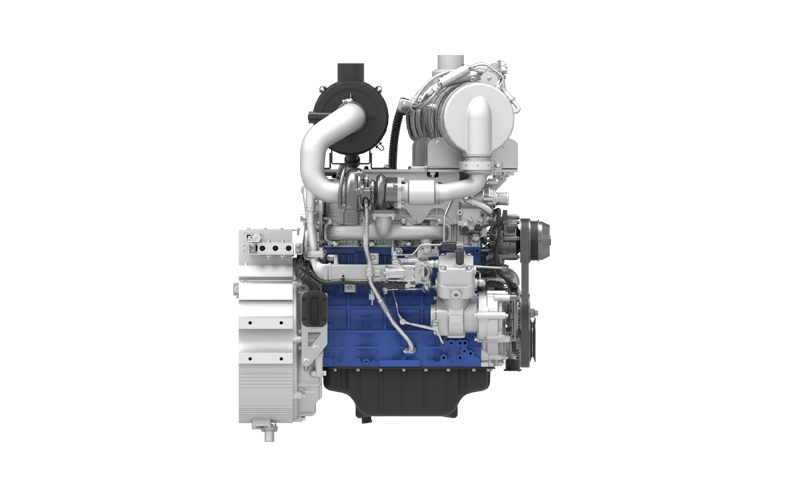

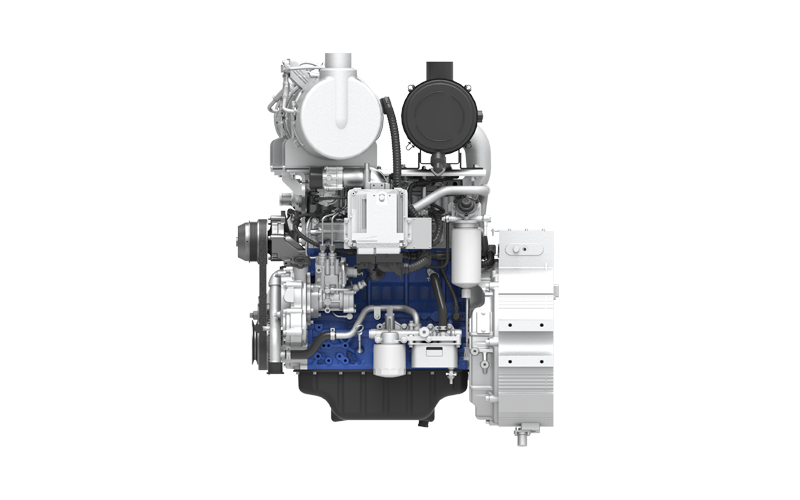

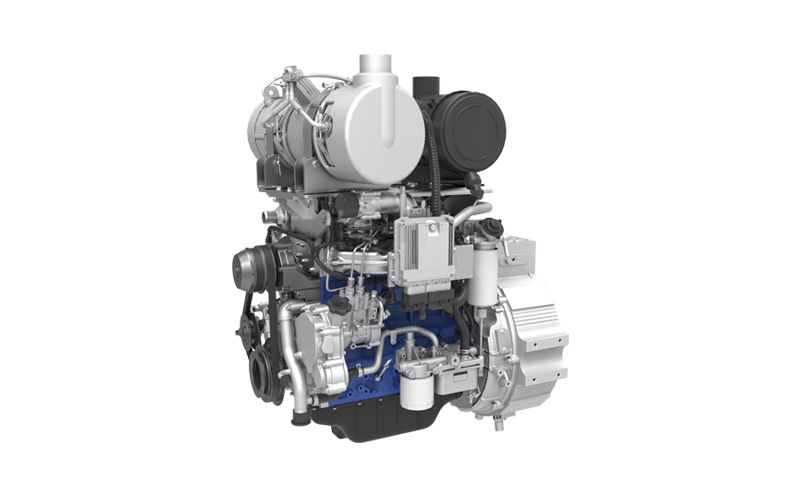

Integrated structure range extender featuring compact dimensions and cost-efficiency; Power generation efficiency is 7% better than competing products.
产品优势
Higher power generation: achieving higher output power under the same displacement; Increased electrical power output without adding volume or weight, meeting the needs of a wider range of application scenarios.
Higher power generation efficiency: 7% lower engine base fuel consumption compared to competitors, saving more fuel costs for the same unit of workload.
Greater Reliability: Focuses on long-term stability and durability, ensuring consistent optimal performance under various operating environments and conditions; Higher reliability, reducing downtime and maintenance costs caused by failures.
产品规格
| Assembly | Rated power (kW/Ps) | 100/136 |
| Assembly | Rated speed (r/min) | 1800 |
| Assembly | Optimal power generation efficiency (kW·h/L) | ＞4.2 |
| Engine | Rated power (kW/Ps) | 129/176 |
| Engine | Rated speed (rpm) | 2400 |
| Motor system | Rated voltage (VDC) | 600 |
| Motor system | Continuous/Peak power (kW) | 106/150 |
| Motor system | Continuous/Peak torque (N·m) | 675/1100 |
| Motor system | Maximum efficiency | 95.59% |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power generation (kW) |
Target applications |
|
WPH3.6N-100-01 |
100 |
5t–7t hybrid loader |
