产品概述

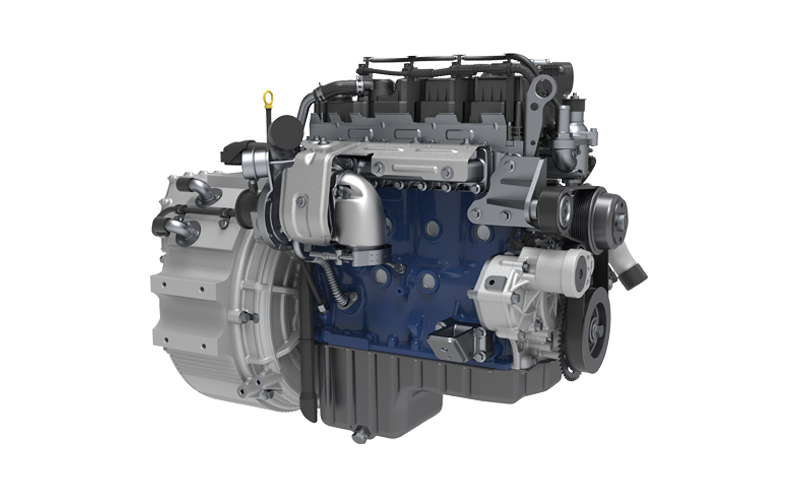

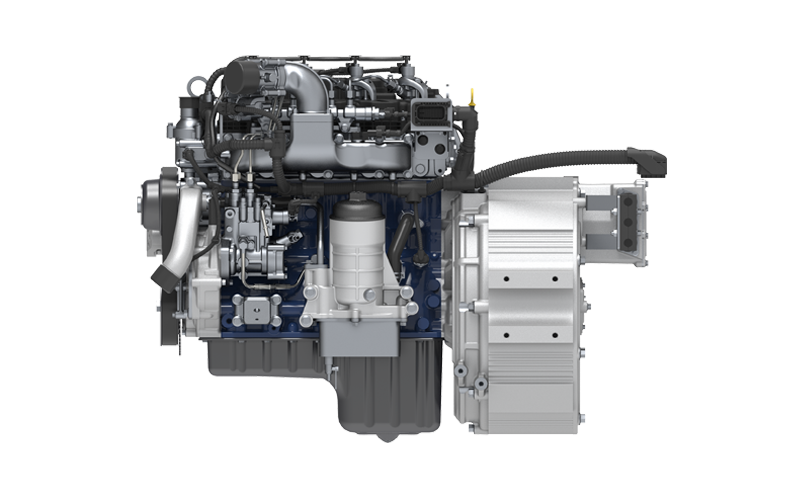

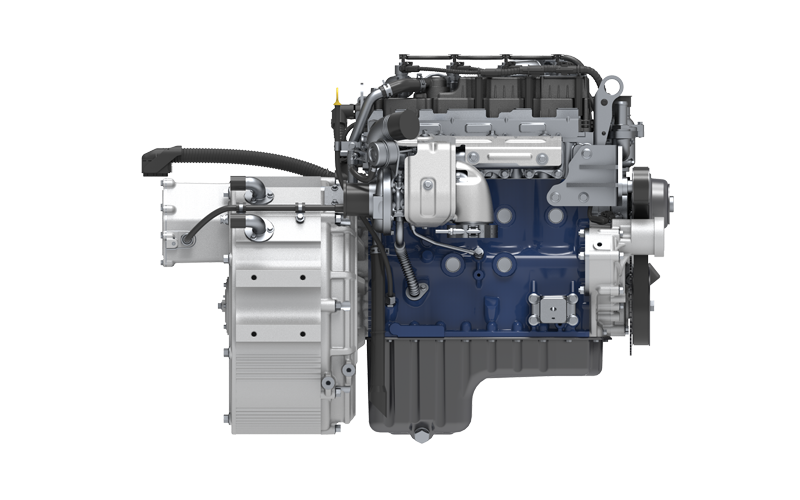

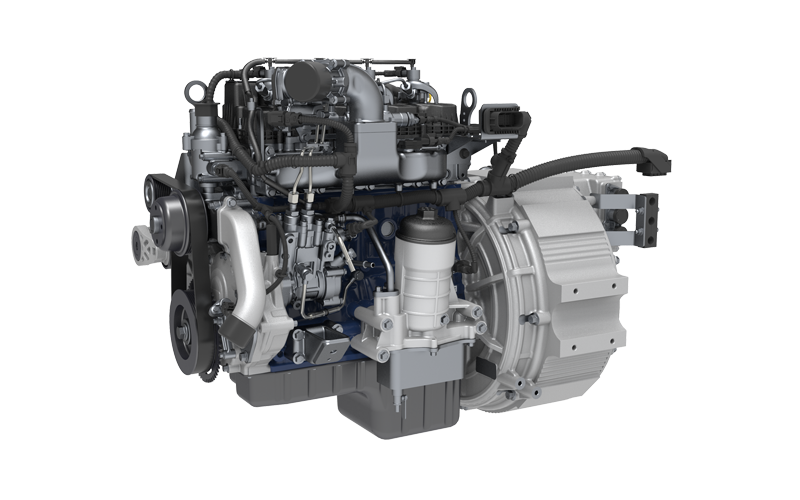

Integrated structure range extender featuring compact dimensions, cost-efficiency, and higher power generation efficiency.
产品优势
Integrated structure range extender featuring compact dimensions, cost-efficiency, and higher power generation efficiency.
产品规格
| Assembly | Rated power (kW/Ps) | 65/88 |
| Assembly | Rated speed (r/min) | 1700 |
| Assembly | Power generation efficiency (kW·h/L) | ≥4.2 |
| Assembly | Voltage platform (V) | 444 |
| Assembly | Emission standard | Euro VI / China VI |
| Engine | Model | WP2.5N |
| Engine | Rated power (kW) | 132 |
| Engine | Rated speed/torque (r/min/N·m) | 2900/500 |
| Motor | Continuous/Peak power (kW) | 70/85 |
| Motor | Continuous/Peak speed (r/min) | 1800/2900 |
| Motor | Continuous/Peak torque (N·m) | 372/540 |
| Motor | Maximum efficiency | ≥97% |
| Motor controller | Rated voltage (V) | 444 |
| Motor controller | Continuous/Peak current (A rms) | 160/320 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
