WEICHAI

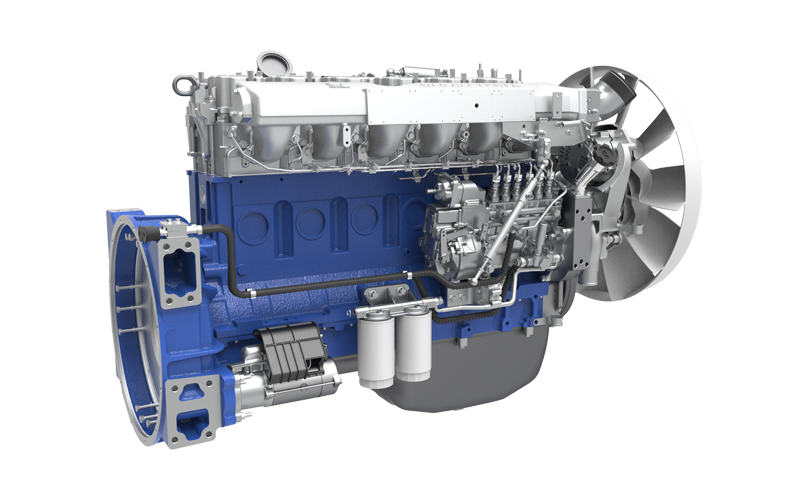

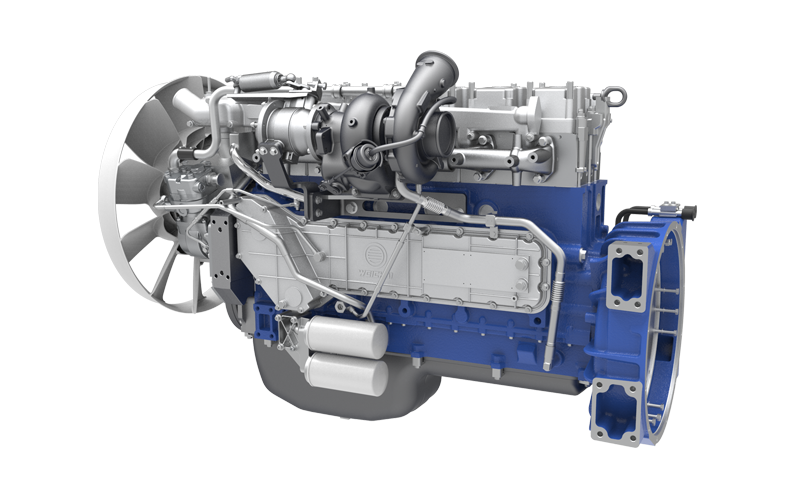

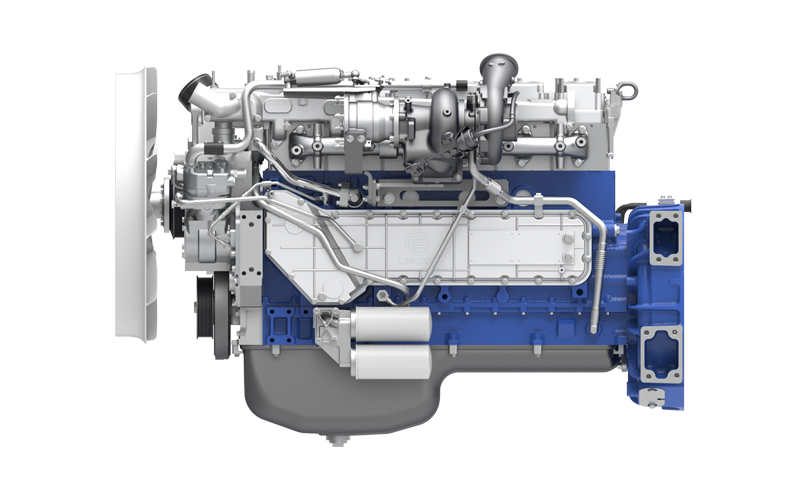

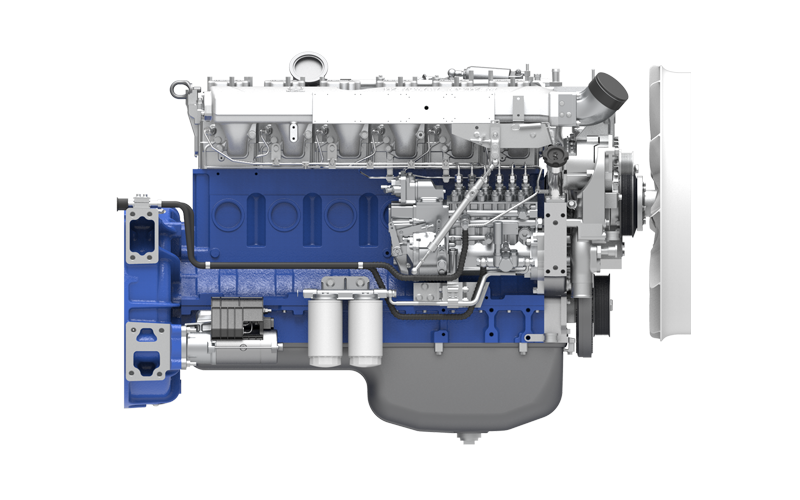

WP10 Engine for Special-purpose Vehicle

Suitable for concrete mixer trucks, truck-mounted cranes, etc.

220-280/300-380

功率范围 kW/Ps

1600/1300-1500

最大扭矩/转速 N·m / r/min

产品概述

Simple structure, high reliability, easy maintenance, high low-speed torque, excellent fuel adaptability, low purchase and operating costs, and outstanding cost-effectiveness.

产品优势

Performance: Featuring a large-displacement mechanical injection pump, the engine delivers high low-end torque and ample torque reserve. It achieves peak torque at 1300–1500 rpm, ensuring fewer gear shifts and stable vehicle speed during climbing or overtaking; Comprehensive power coverage (300–380 Ps) suits standard load, heavy-duty, and mountainous highway applications with rapid power response.

Economy: Mature mechanical injection pump technology ensures optimized combustion and low fuel consumption; Simple structure leads to low maintenance costs, immunity to electronic control failures, affordable servicing, and an extended overhaul interval.

Reliability: The pure mechanical injection pump design eliminates the need for an ECU, offering high resistance to high temperatures, dust, and poor-quality fuel, resulting in an extremely low failure rate.

产品规格

功率范围 kW/Ps
220-280/300-380
最大扭矩转速 N·m / r/min
1600/1300-1500
排放标准
Euro II
燃料
Diesel
发动机型式
In-line
气缸数
6
气门数
4
排量 L
9.726
进气方式
Turbocharged and intercooled
发动机尺寸(长×宽×高) mm
1525×730×1063
G重量 kg
875

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Displacement (L)

Emission standard

Technical route

Target applications

Number of valves

WP10.300E22

220/2200

1240 / 1300–1500

9.726

Euro II

Mechanical injection pump

Tractor, cargo truck, special-purpose vehicle, dump truck

4

WP10.300E22

220/2200

1150 / 1300–1500

9.726

/

Mechanical injection pump

Tractor, cargo truck, special-purpose vehicle, dump truck

4

WP10.340E22

250/2200

1400 / 1300–1500

9.726

Euro II

Mechanical injection pump

Tractor, cargo truck, special-purpose vehicle, dump truck

4

WP10.380E22

280/2200

1600 / 1300–1500

9.726

Euro II

Mechanical injection pump

Tractor, cargo truck, special-purpose vehicle, dump truck

4

WP10.380E22

280/2200

1550 / 1200–1500

9.726

/

Mechanical injection pump

Tractor, cargo truck, special-purpose vehicle, dump truck

4
