产品概述

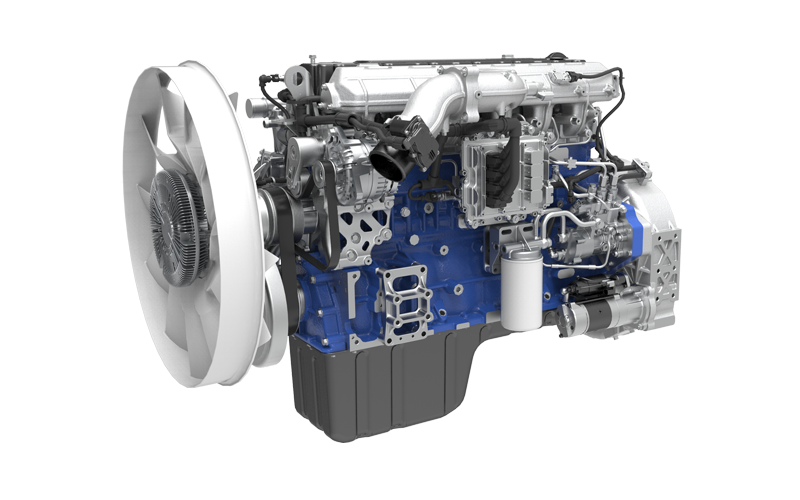

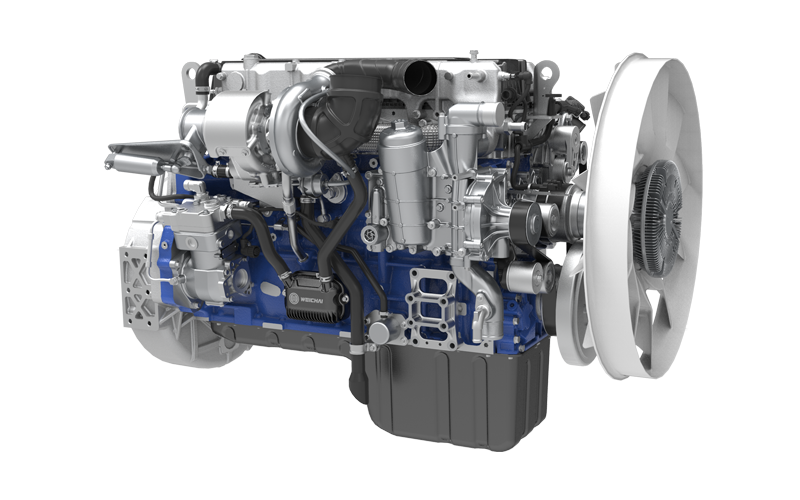

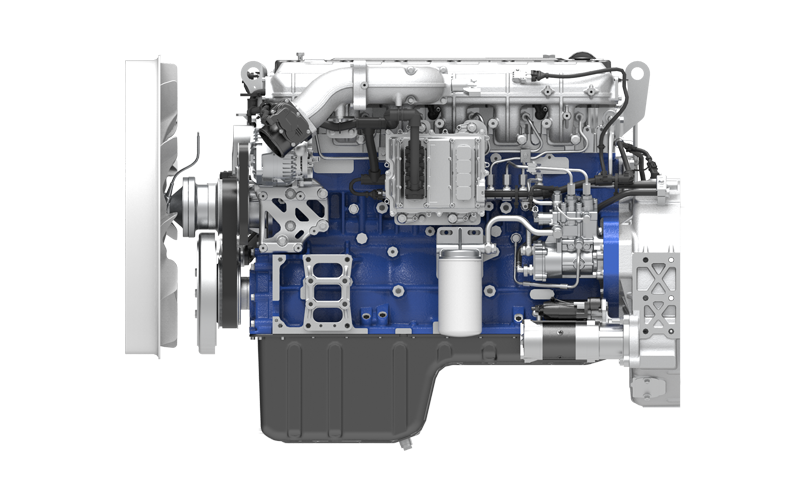

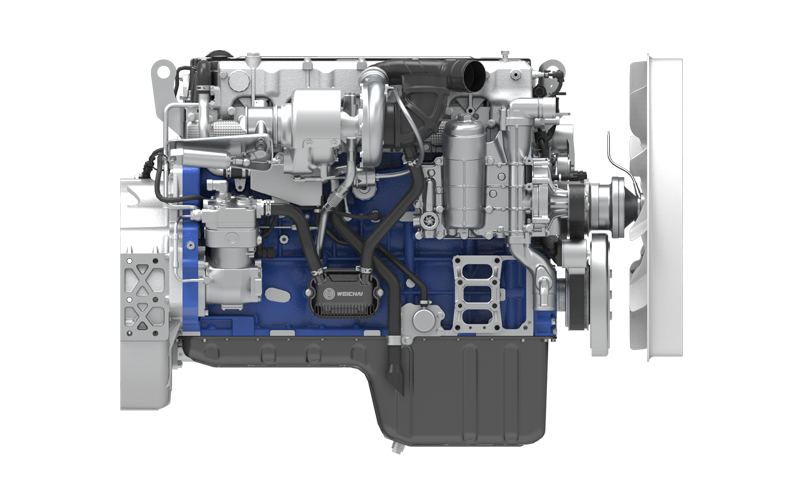

The WP8 engine is the golden power source for the medium-duty platform, featuring a wide range of application scenarios and high reliability.
产品优势
Power upgrade: Reinforced cylinder head increases torque to 1400 N·m, delivering higher power than engines of the same displacement.
Highly efficient and fuel-saving: Redesigned intake and exhaust systems enhance volumetric efficiency and optimize combustion, with a minimum fuel consumption rate as low as 185 g/kW·h.
Safe and reliable: Application of reinforced engine block and modular design increases B10 life to 1 million kilometers; standard configuration includes Weichai Exhaust Valve Brake (WEVB) system.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP8.240E201 |
176/2100 |
900/1300-1500 |
7.8 |
/ |
Mechanical injection pump |
Tractor, cargo truck, dump truck |
4 |
|
WP8.260E201 |
191/2100 |
1000/1300-1500 |
7.8 |
/ |
Mechanical injection pump |
Tractor, cargo truck, dump truck |
4 |
|
WP8.280E201 |
206/2100 |
1100/1300-1500 |
7.8 |
/ |
Mechanical injection pump |
Tractor, cargo truck, dump truck |
4 |
|
WP8.300E201 |
220/2100 |
1250/1300-1500 |
7.8 |
/ |
Mechanical injection pump |
Tractor, cargo truck, dump truck |
4 |
|
WP8.240E301 |
176/2100 |
950/1200-1600 |
7.8 |
Euro III |
CR |
Tractor, cargo truck, dump truck |
4 |
|
WP8.270E301 |
199/2100 |
1100/1200-1600 |
7.8 |
Euro III |
CR |
Tractor, cargo truck, dump truck |
4 |
|
WP8.320E301 |
235/2100 |
1300/1200-1600 |
7.8 |
Euro III |
CR |
Tractor, cargo truck, dump truck |
4 |
|
WP8.350E301 |
257/2100 |
1400/1200-1600 |
7.8 |
Euro III |
CR |
Tractor, cargo truck, dump truck |
4 |
|
WP8.320E51 |
235/2100 |
1300/1200-1600 |
7.8 |
Euro V |
CR+SCR |
Tractor, cargo truck, dump truck |
4 |
|
WP8.340E51 |
250/2100 |
1400/1200-1600 |
7.8 |
Euro V |
CR+SCR |
Tractor, cargo truck, dump truck |
4 |
