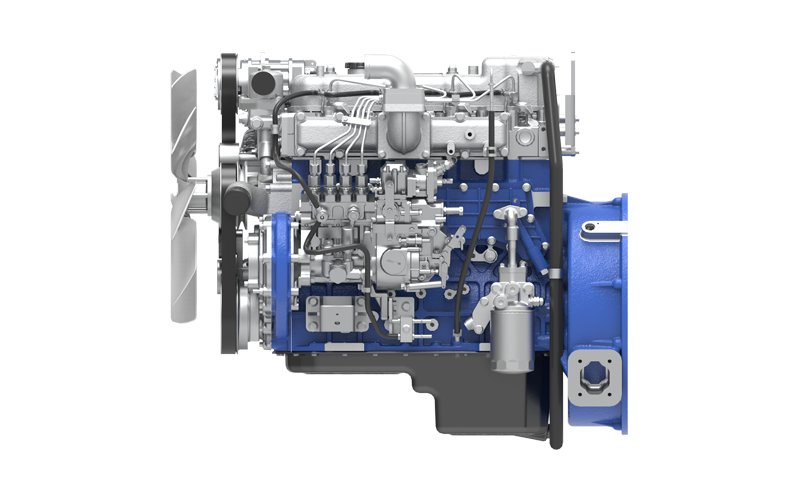

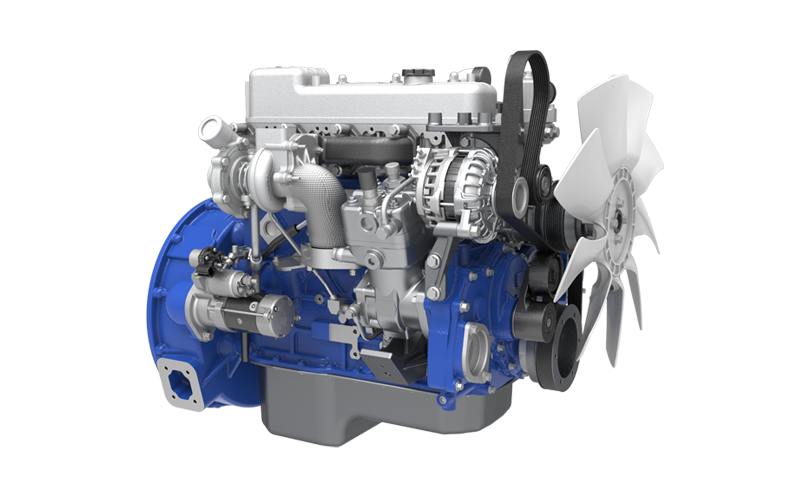

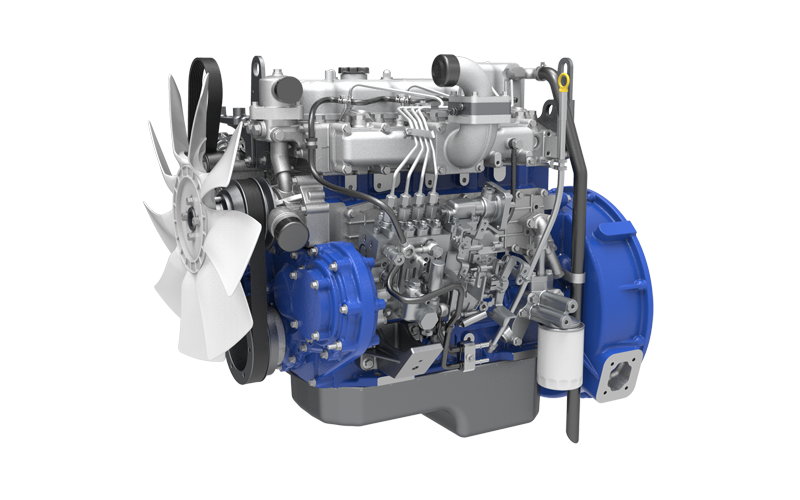

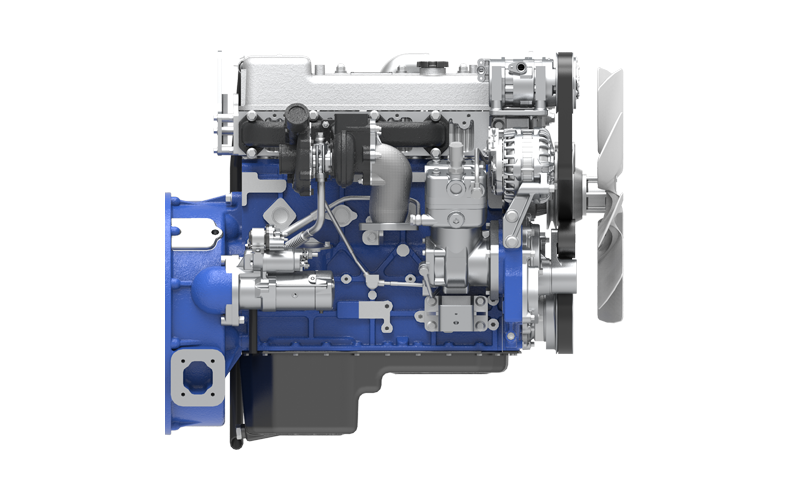

产品概述
A cost-effective power solution for cargo trucks specifically developed for low-emission regions.
产品优势
High cost-effectiveness: Employs a mechanical injection pump technical route, resulting in low total engine cost.
High reliability: Dedicated development for the fuel system; fuel pumps and injectors are equipped with wear-resistant and corrosion-resistant coatings, ensuring strong adaptability to fuel quality.
Strong power: Maximum output torque of 520 N·m ensures vehicle power requirements under severe road conditions.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP4.1Q130A1 |
96/2600 |
430/1400-1800 |
4.1 |
/ |
Mechanical injection pump |
Cargo truck |
2 |
|
WP4.1Q140A1 |
105/2600 |
465/1400-1700 |
4.1 |
/ |
Mechanical injection pump |
Cargo truck |
2 |
|
WP4.1Q150A1 |
110/2600 |
500/1400-1700 |
4.1 |
/ |
Mechanical injection pump |
Cargo truck |
2 |
|
WP4.1Q165A1 |
120/2600 |
520/1400-1700 |
4.1 |
/ |
Mechanical injection pump |
Cargo truck |
2 |
