产品概述

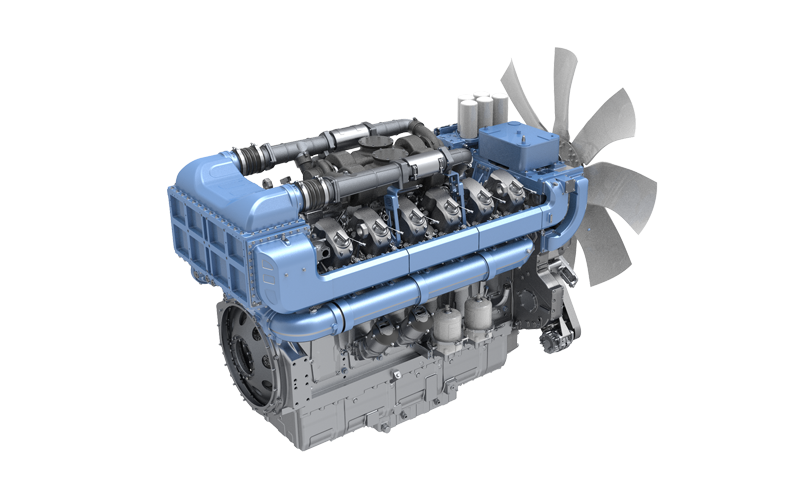

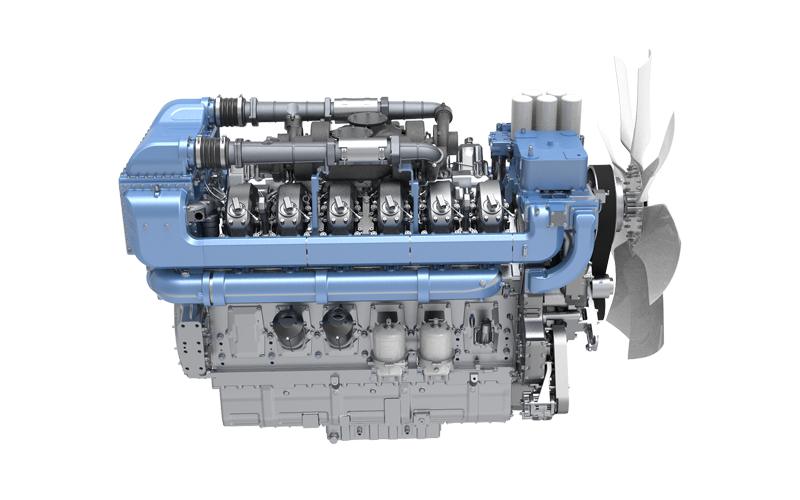

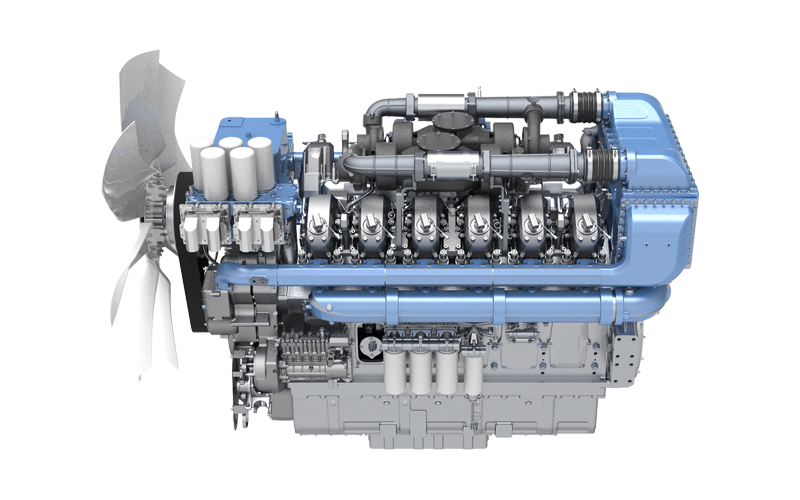

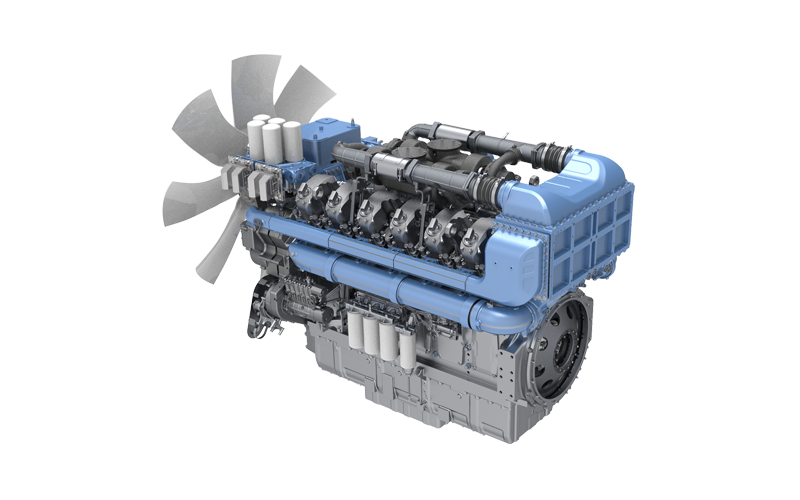

The 12M55 series engine adopts a V-type, 12-cylinder, four-stroke configuration, with an engine displacement of 65.65 L, rated power ranging from 1716 kW to 2205 kW, a rated speed of 1800 rpm, and a maximum torque/speed of 12868 N·m / 1400 rpm. Utilizes a high-pressure common rail system and a turbocharged and intercooled intake system, meeting China Non-road Stage III emission regulations.
产品优势
Economical and energy-efficient with lower fuel consumption: comprehensive fuel consumption is 8 g/kW·h lower than competing products, reducing operating costs.
Inherently robust, ready for challenges: Features high-reliability structural design technology, including a flanged cylinder block and double-sided tension bolts, with optimized front and rear end stiffness of the cylinder block to improve engine reliability; overhaul interval of 20,000 h, and maintenance interval of 500 h.
Full environmental adaptability: stable operation in extreme cold and high-temperature environments ranging from -50℃ to 50℃.
Weichai's proprietary powertrain optimization technology: reduces overall unit vibration and torsional vibration stress on the motor shaft, with NVH performance superior to competing products.
Strong high-altitude performance: no power derating at altitudes up to 2,500 meters, power derating ≤ 10% at 3,000 meters, and development for 5,000 meters available upon customer request.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
12M55G2335 |
1716/1800 |
11700/1400 |
65.65 |
Overseas version with no emission requirements |
Electronically controlled high-pressure common rail |
96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives |
4 |
|
12M55G2335E305 |
1716/1800 |
10014/1400 |
65.65 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives |
4 |
|
12M55 |
1820/1800 |
10152/1600 |
65.65 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives |
4 |
|
12M55G2535 |
1865/1800 |
11750/1400 |
65.65 |
Overseas version with no emission requirements |
Electronically controlled high-pressure common rail |
96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives |
4 |
|
12M55G2535E305 |
1865/1800 |
10884/1400 |
65.65 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives |
4 |
|
12M55G2735E305 |
2013/1800 |
11750/1400 |
65.65 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives |
4 |
|
12M55G2850 |
2095/1800 |
12500/1400 |
65.65 |
Overseas version with no emission requirements |
Electronically controlled high-pressure common rail |
96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives |
4 |
|
12M55G2850E305 |
2095/1800 |
12500/1400 |
65.65 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives |
4 |
|
12M55G3000E305 |
2205/1800 |
12868/1400 |
65.65 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives |
4 |
|
12M55G3050E305 |
2240/1800 |
12828/1400 |
65.65 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
96-head rail grinders (high-altitude), 200-head rail grinders, 2000kW locomotives |
4 |
