产品概述

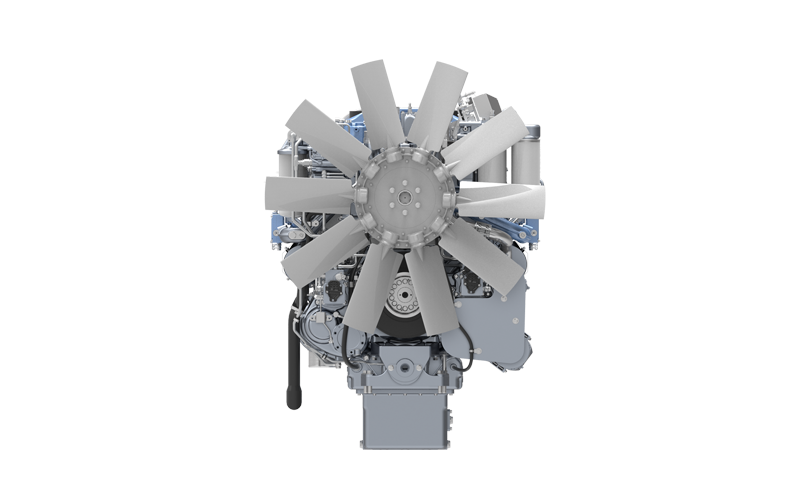

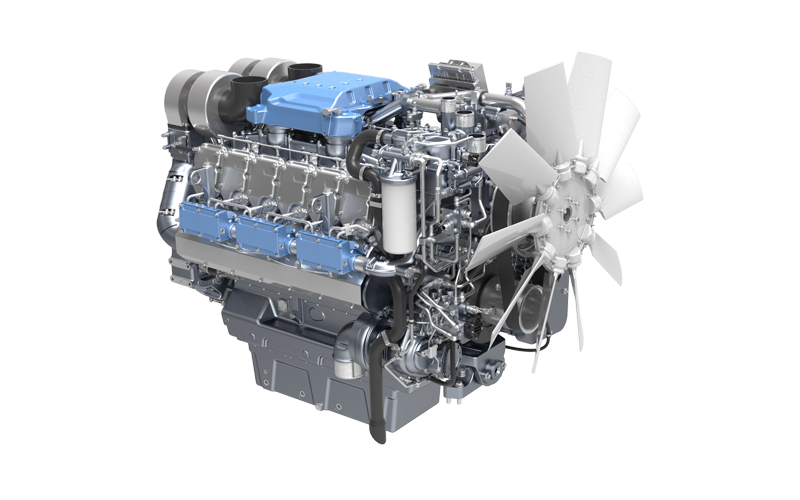

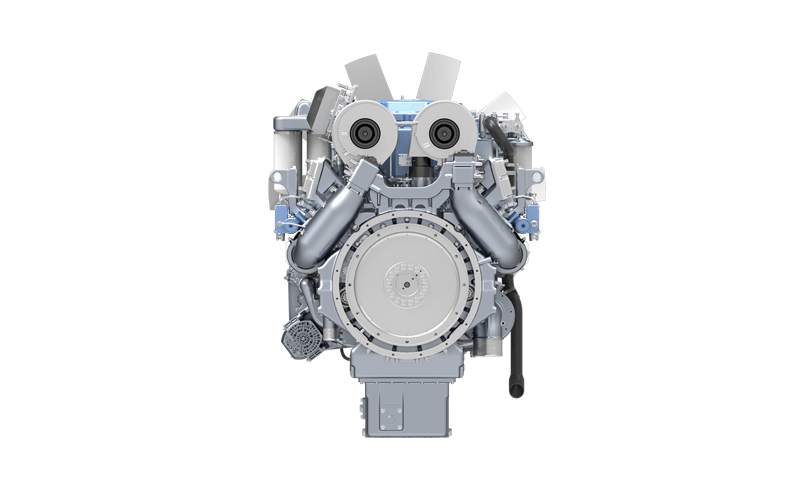

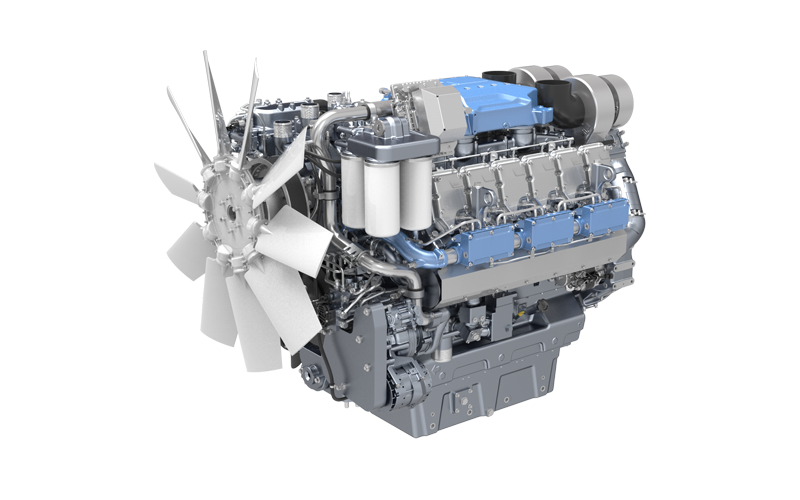

The 12M25 diesel engine is a product with independent intellectual property rights from Weichai. The 12M25 diesel engine adopts a V-type, 12-cylinder, four-stroke configuration, with a displacement of 30.4 L, a rated power of 900 kW, a rated speed of 2100 rpm, and a maximum torque/speed of 5116 N·m / 1400 rpm. Utilizes a high-pressure common rail system and a turbocharged and intercooled intake system, meeting China Non-road Stage III emission regulations.
产品优势
Superior power performance: Rated power of 900 kW, exceeding the 895 kW of competing products.
Superior economy: Rated fuel consumption of 205 g/(kW·h), which is better than the 218 g/(kW·h) of competing products.
Strong environmental adaptability: Stable operation in extreme cold and high-temperature environments ranging from -50℃ to 50℃.
High reliability: Inherently robust, ready for challenges: High-strength vermicular graphite iron cylinder block and steel pistons, with an overhaul interval of 20,000 h and a maintenance interval of 500 h.
Strong high-altitude performance: No power derating at altitudes up to 3,000 meters, and development for 5,000 meters available upon customer request.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
12M25G1224E302 |
900/2000 |
5100/1600 |
30.4 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
850 kW locomotive |
4 |
