产品概述

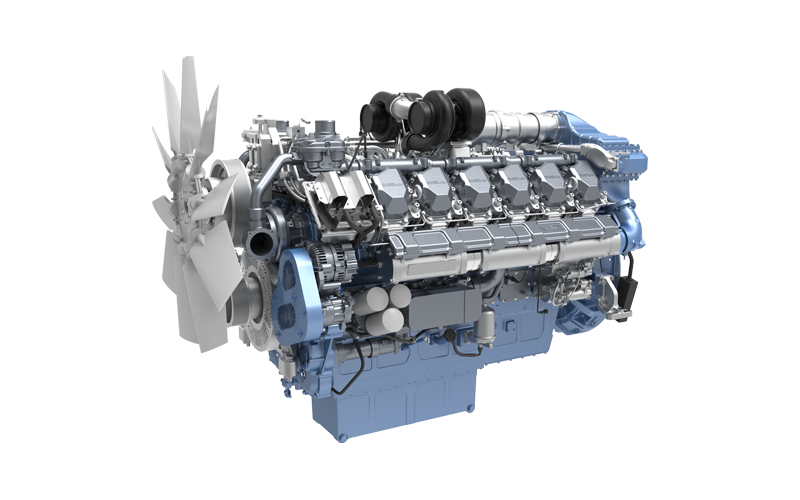

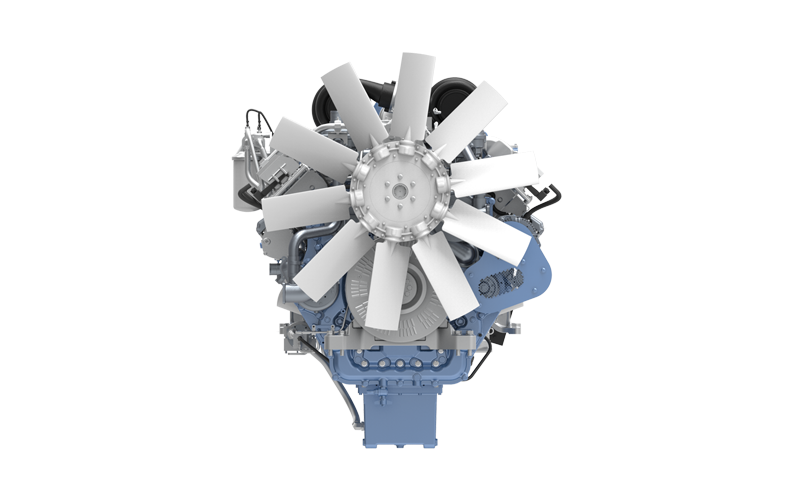

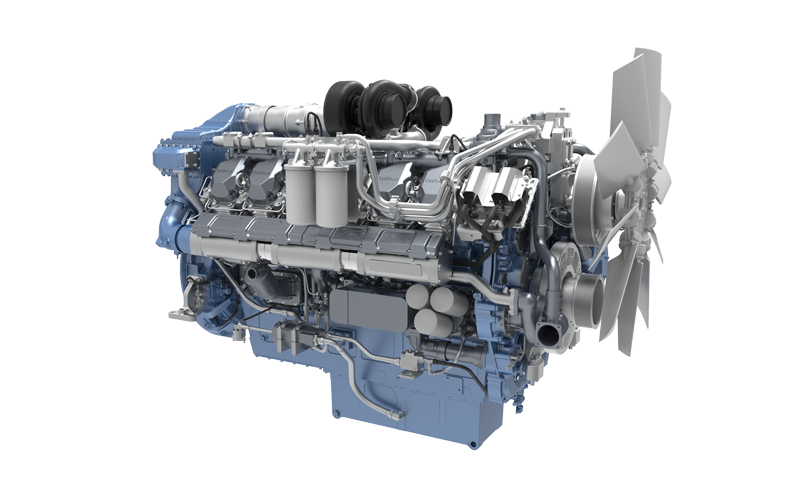

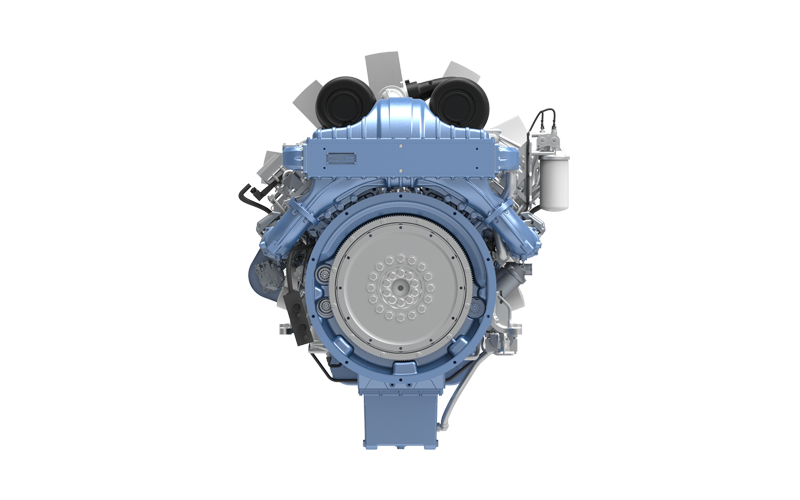

V-type, 12-cylinder, four-stroke, turbocharged, water-air intercooled, displacement of 39.2 L, rated power of 1066 kW, rated speed 1900 rpm, maximum torque/speed of 6200 N·m / 1500 rpm.
产品优势
Comprehensive fuel consumption is 10 g/kW·h lower than competing products, reducing operating costs.
High-strength cast iron cylinder block and steel piston design, overhaul interval of 20000 h, and maintenance interval of 500 h.
High and low temperature dual-stage cooling, operating ambient temperature of ±50℃.
High level of product serialization, standardization, and modularization, with a machine modularization rate of 90%.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
12M33G1070E304 |
785/1900 |
4340/1300 |
39.2 |
China Non-road Stage III |
Common rail |
90–110t dump truck |
4 |
|
12M33G1225E304 |
900/1900 |
4980/1300 |
39.2 |
China Non-road Stage III |
Common rail |
130–180t dump truck |
4 |
|
12M33G1450E304 |
1066/1900 |
6200/1500 |
39.2 |
China Non-road Stage III |
Common rail |
130–180t dump truck |
4 |
