产品概述

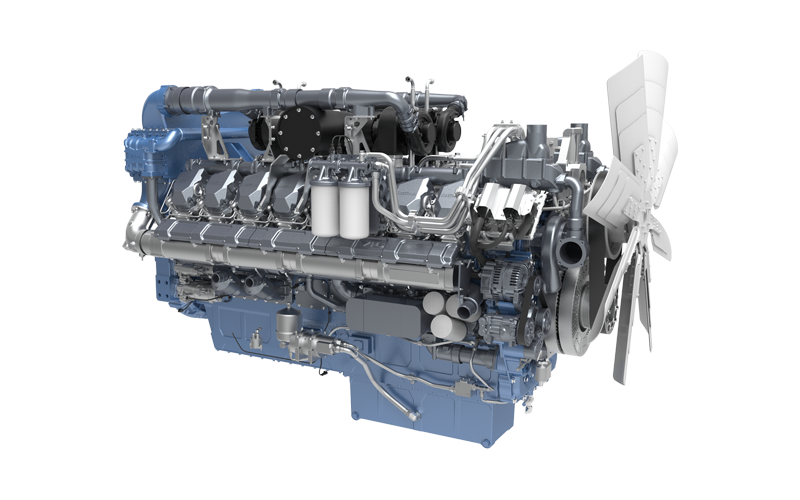

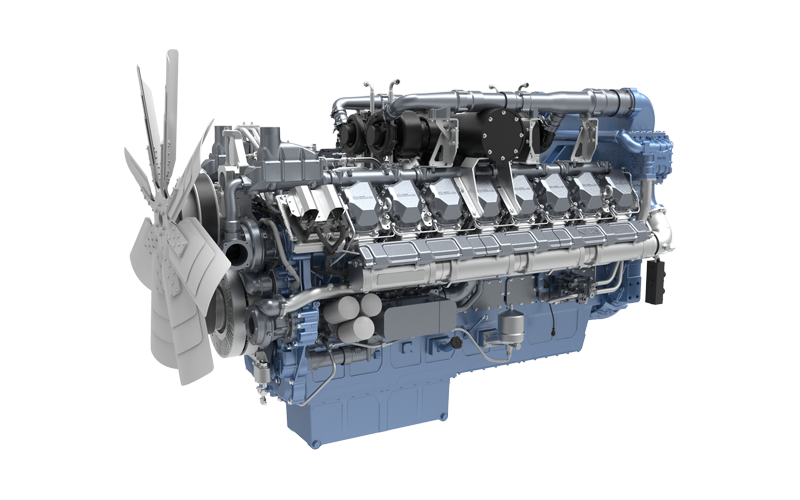

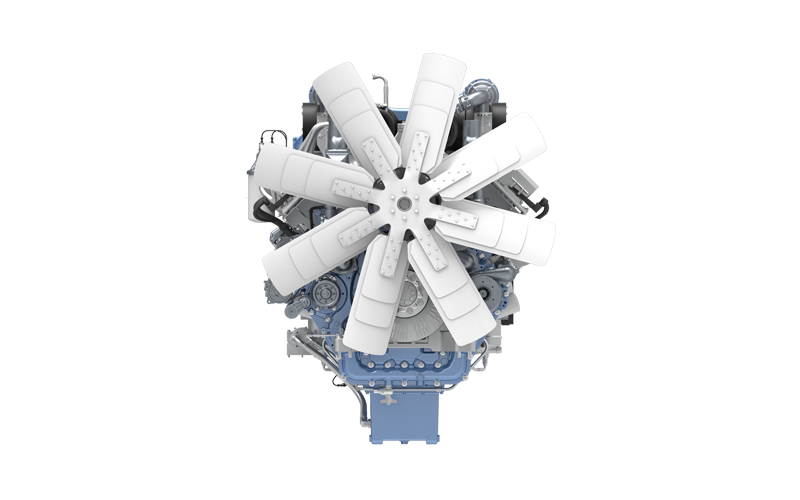

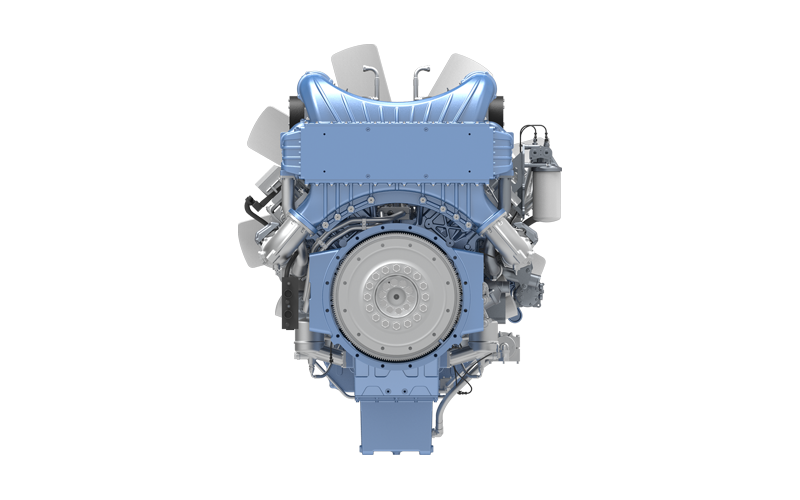

V-type, 16-cylinder, four-stroke, turbocharged, water-air intercooled, displacement of 52.3 L, rated power of 1492 kW, rated speed 1900 rpm, maximum torque/speed of 8000 N·m / 1500–1700 rpm.
产品优势
Comprehensive fuel consumption is 7% lower than competing products, effectively reducing operating costs.
High-strength cast iron cylinder block and steel piston design, overhaul interval of 20000 h, and maintenance interval of 500 h.
High and low temperature dual-stage cooling, supporting stable operation in the full temperature range of -50℃ to 50℃.
High level of product serialization, standardization, and modularization, with a machine modularization rate of 90%.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
16M33G1625E304 |
1194/1900 |
6500/1500-1700 |
52.3 |
China Non-road Stage III |
Common rail |
130–180t dump truck |
4 |
|
16M33G2000E304 |
1492/1900 |
8000/1500-1700 |
52.3 |
China Non-road Stage III |
Common rail |
320t dump truck, dual-engine |
4 |
