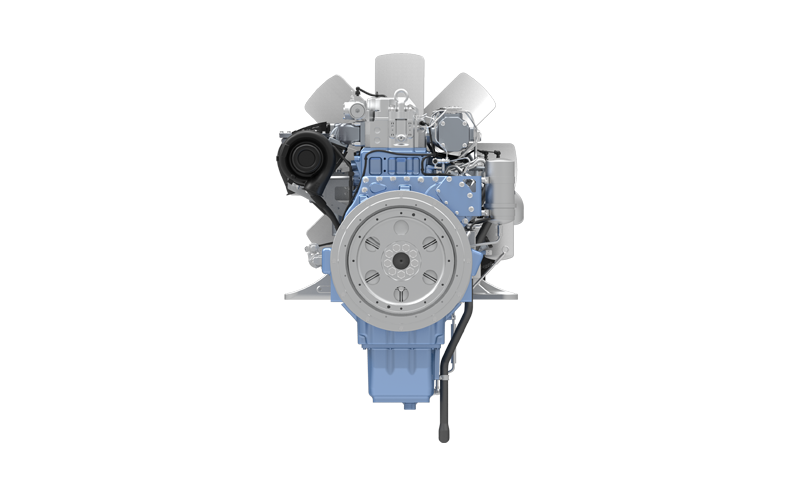

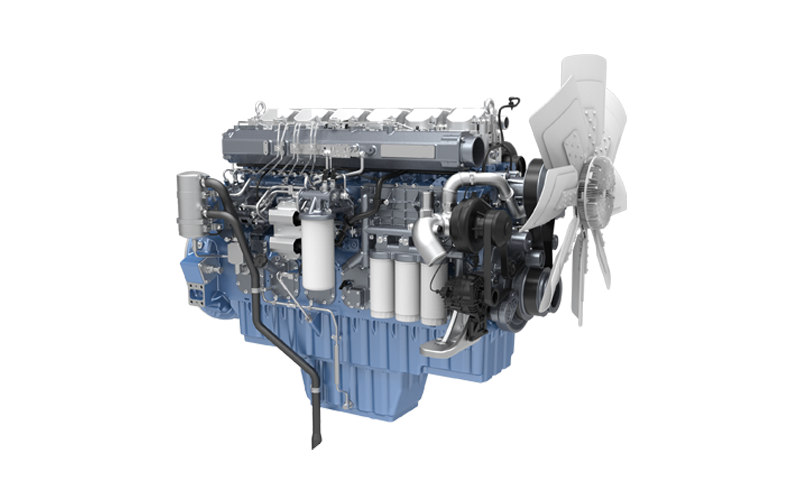

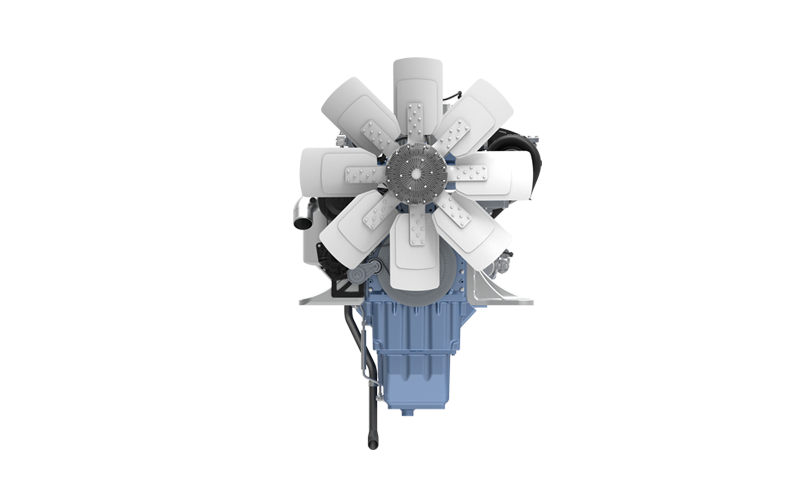

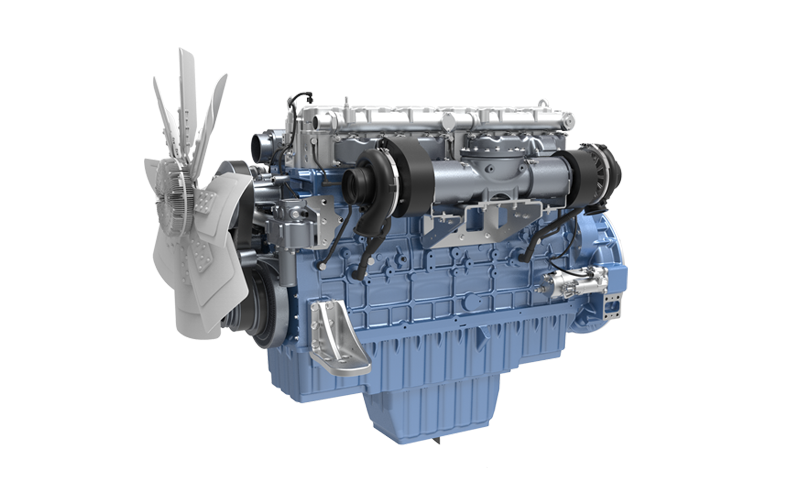

产品概述
In-line, 6-cylinder, four-stroke, turbocharged and intercooled, displacement of 19.6 L, rated power up to 566 kW, rated speed 1800 rpm, maximum torque/speed of 3418 N·m / 1400 rpm.
产品优势
Fuel consumption in typical operating ranges is 15–30 g/kW·h lower than competing products, reducing operating costs.
Efficiency is 22% better than competing products.
Supports operating ambient temperatures of ±50℃, compatible with B35–B100 biodiesel.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
6M33G710E304 |
522/1900 |
3200/1200-1500 |
19.6 |
China Non-road Stage III |
Common rail |
55–60t dump truck |
4 |
|
6M33G770E304 |
566/1900 |
3418/1400 |
19.6 |
China Non-road Stage III |
Common rail |
55–60t dump truck |
4 |
