产品概述

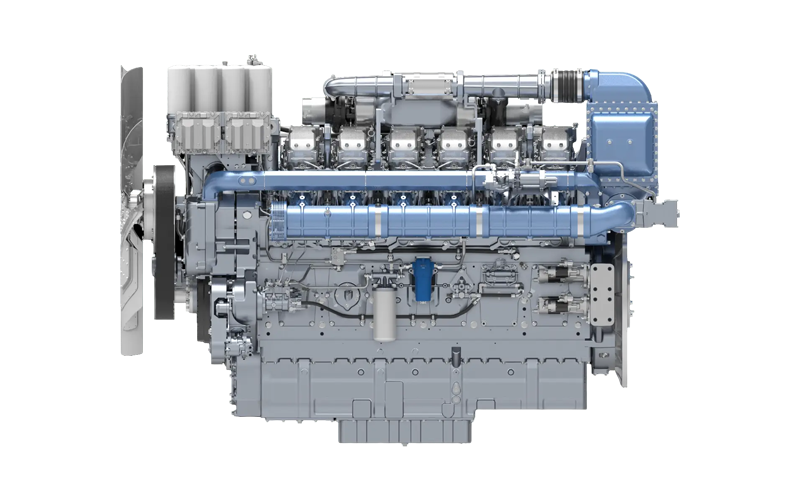

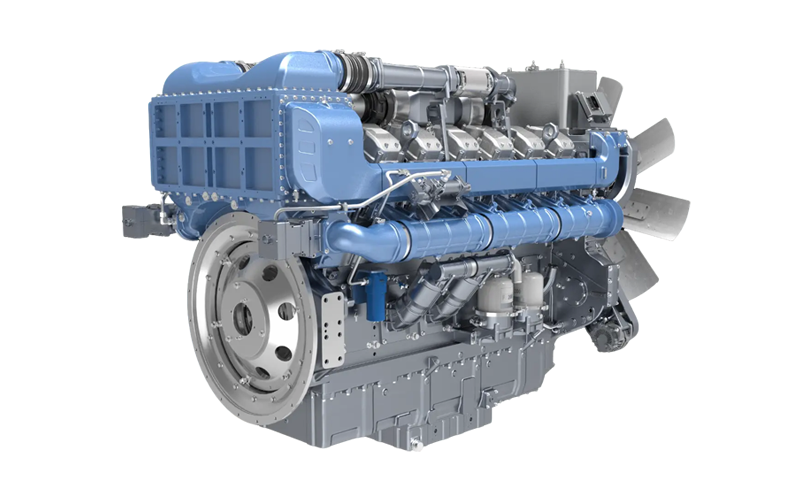

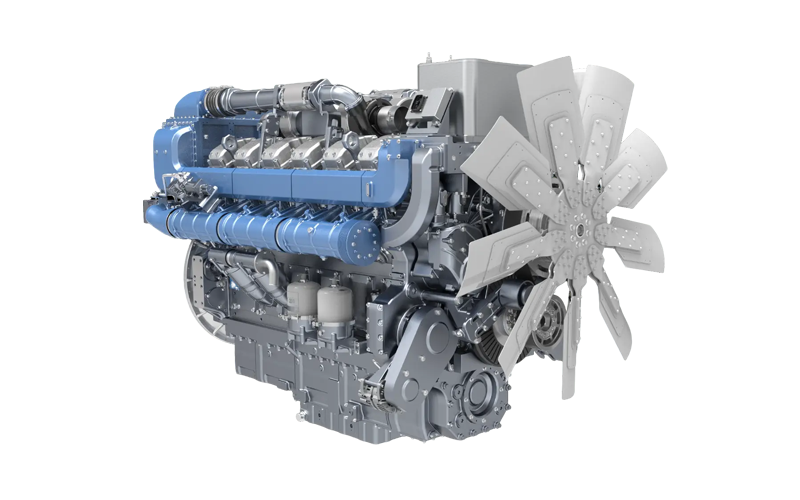

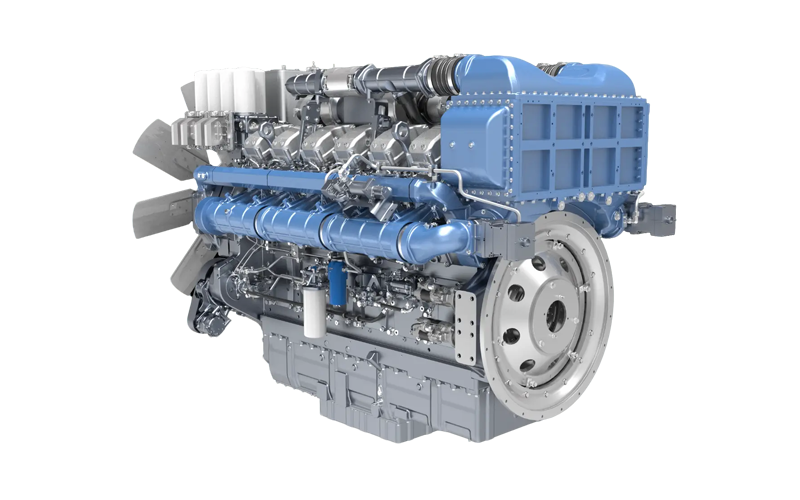

V-type, 12-cylinder, four-stroke, turbocharged, water-air intercooled, displacement of 65.7 L, rated power of 1716 kW, rated speed 1800 rpm, maximum torque/speed of 11700 N·m / 1400 rpm.
产品优势
Lower noise levels compared to diesel engines.
Adaptive correction strategy for ambient humidity and gas quality; Precision boost pressure control, maintaining stable power output within ±50℃.
A high-power gas engine capable of adapting to large-scale mining trucks, with unit interfaces identical to those of diesel engines.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
12M55G2335A0NG |
1716/1800 |
10014/1400 |
65.65 |
Overseas version with no emission requirements |
Micro-pilot ignition, single-point injection, Common rail |
220t dump truck |
4 |
