产品概述

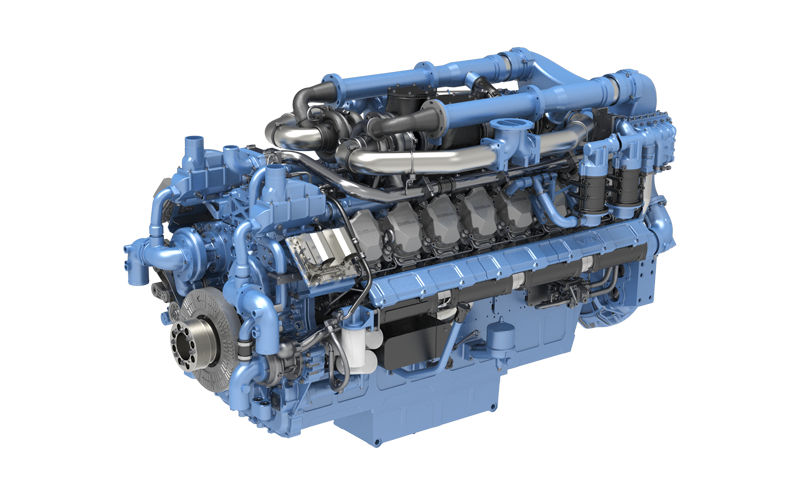

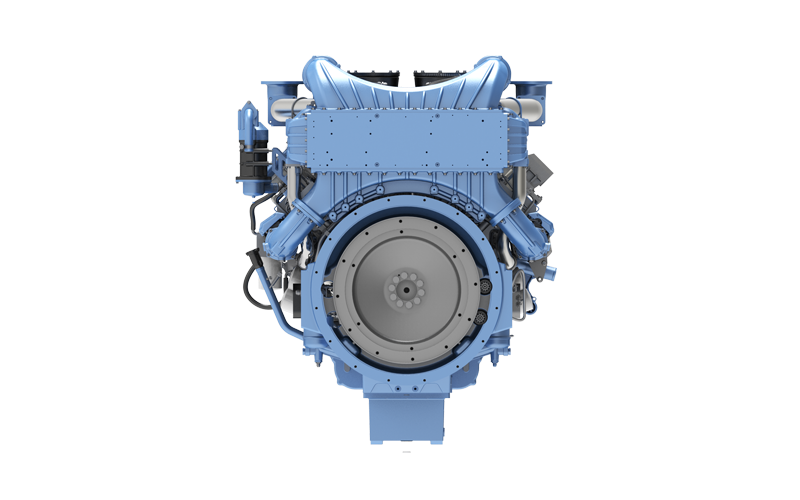

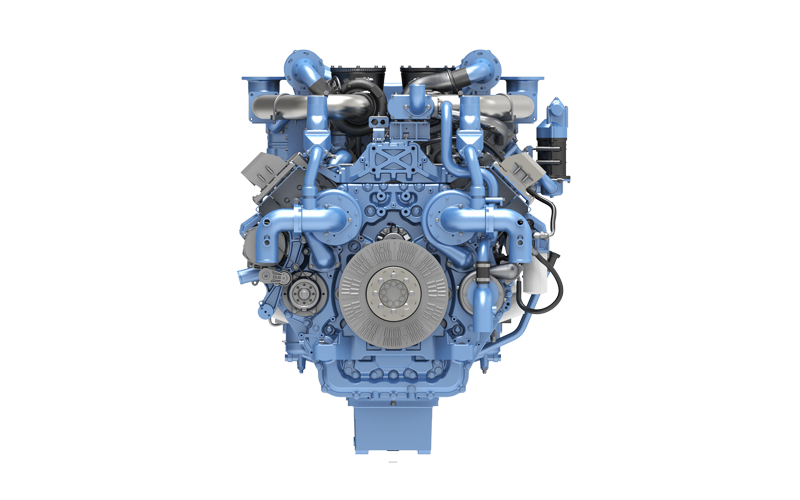

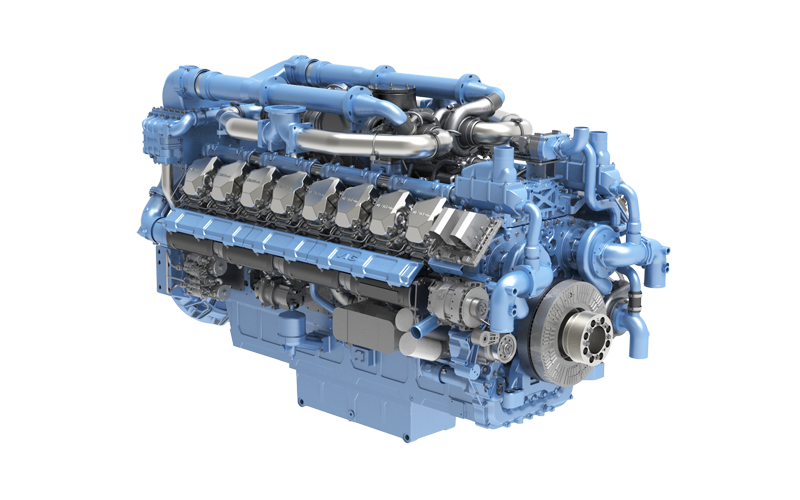

16-cylinder, V-type, four-stroke, electronically controlled high-pressure common rail, turbocharged and intercooled, displacement of 52.3L, rated power of 1360 kW, rated speed 1800 rpm, maximum torque/speed of 8900 N·m / 1300 rpm.
产品优势
Powerful performance: Maximum power of 1360 kW, maximum torque of 8900 N·m.
Excellent fuel economy: with fuel consumption in typical operating ranges 15 g/kW·h lower than competing products.
Superior NVH performance.
Capable of high-altitude operation at 5000m: with an allowable ambient temperature range of -50–50℃.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
16M33G1850E305 |
1360/1800 |
8900/1300 |
52.3 |
China Non-road Stage III |
Electronically controlled high-pressure common rail |
40t loader |
4 |
