产品概述

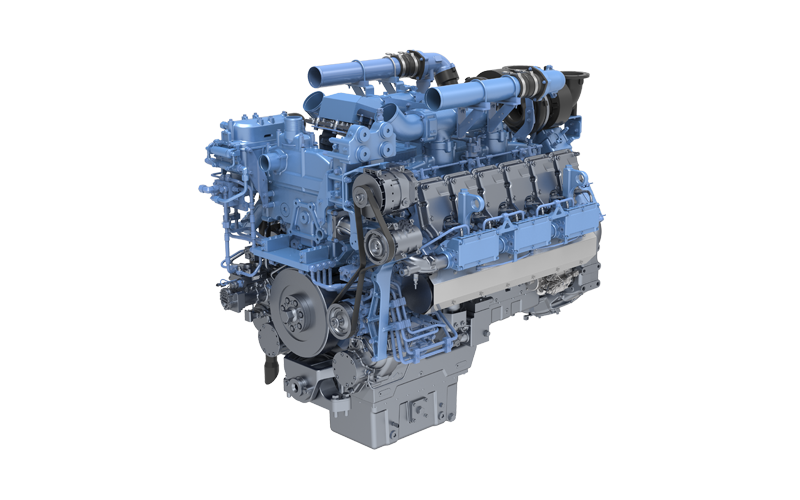

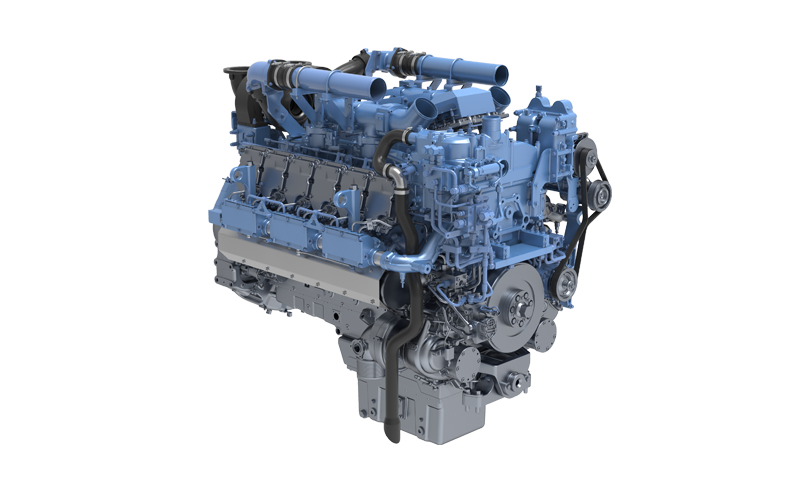

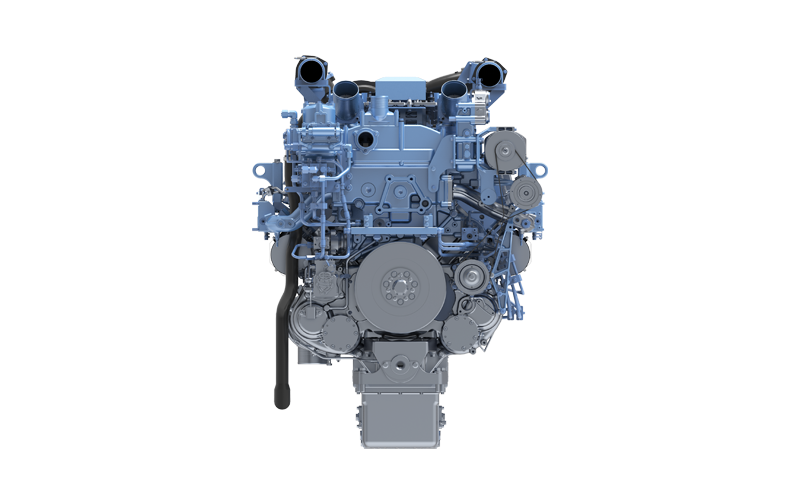

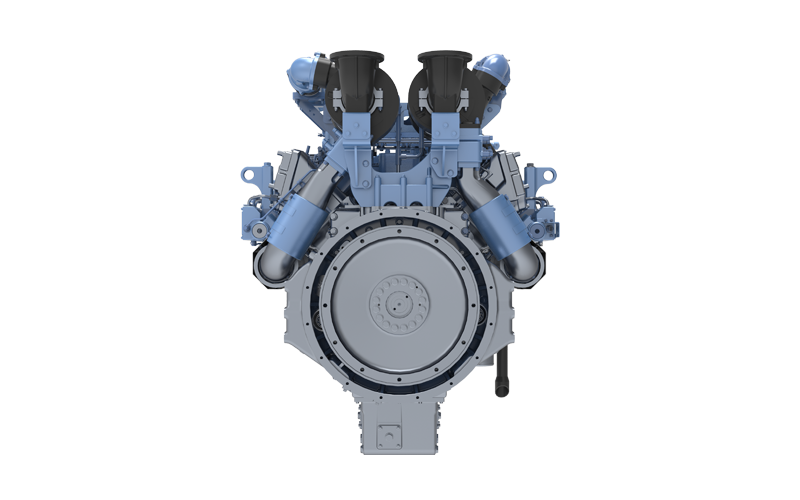

V-type, twelve-cylinder, four-stroke, turbocharged and intercooled; engine displacement 30.4 L; rated power/speed 735 kW / 2000 rpm and 845 kW / 1800 rpm, delivering 1000Ps–1149Ps, with a maximum torque of 5116 N·m.
产品优势
Inherently robust, ready for challenges: Gantry-style high-strength cylinder block and high-strength wear-resistant bearing shells, overhaul interval of 20000 h, and maintenance interval of 500 h.
Fearless of high altitudes, high adaptability: Power at 4000 m is higher than competing products; compatible with biodiesel.
Economical and energy-saving, efficient operation: Rated fuel consumption is superior to competitors; high-efficiency turbocharger ensures engine responsiveness.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
| Model | Rated power/speed (kW/rpm) | Peak torque/speed (N·m/rpm) | Displacement (L) | Emission standard | Technical route | Target applications | Number of valves |
| 12M25G1000E303 | 735/2000 | 4246/1500 | 30.4 | China Non-road Stage III | Electronically controlled high-pressure common rail | 900Ps bulldozer | 4 |
| 12M25G1149E305 | 845/1800 | 5116/1400 | 30.4 | China Non-road Stage III | Electronically controlled high-pressure common rail | 1000Ps bulldozer | 4 |
