产品概述

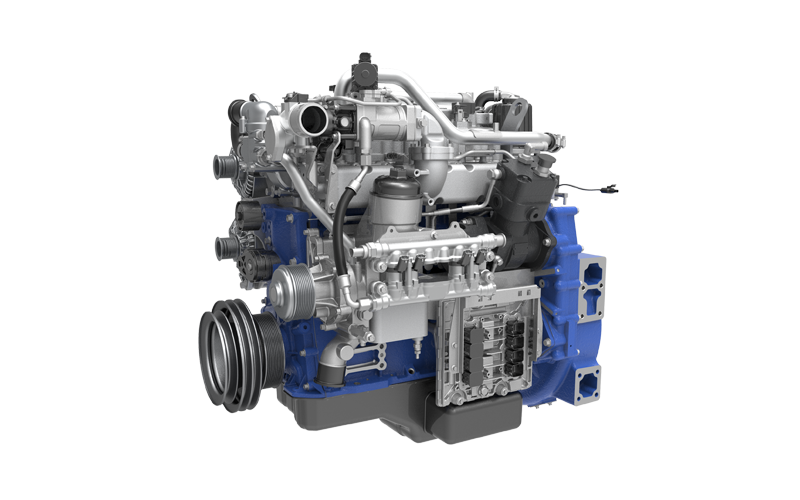

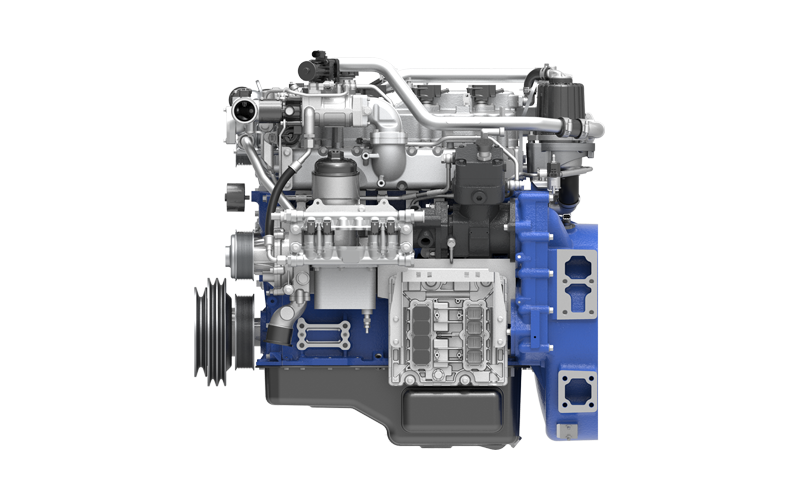

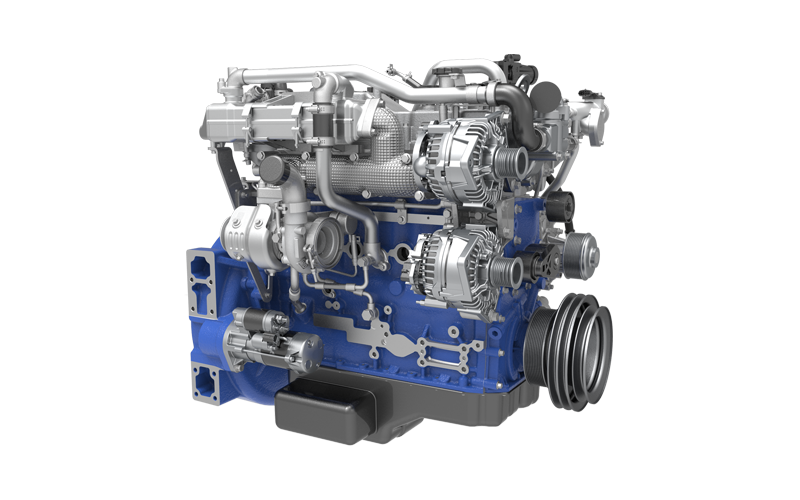

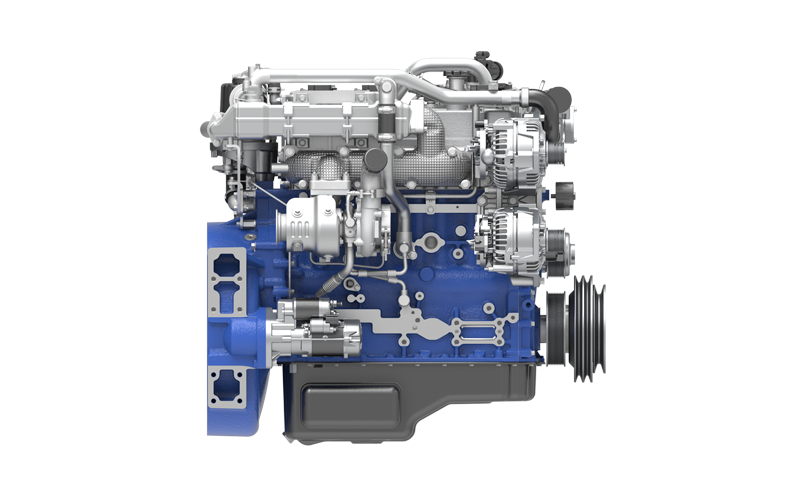

Developed based on the WP4.6N diesel engine, with a maximum power of 200 Ps, it meets the power requirements of natural gas city buses.
产品优势
High reliability: High-strength materials and refined fit clearances improve the safety factor and ensure product reliability.
High fuel economy: Optimized selection, improved efficiency, and reduced resistance further enhance economy; high-precision air-fuel ratio and micro-knock control technologies reduce engine gas consumption by 5–7 g/kW·h.
High comfort: Added secondary balancer, reducing vibration velocity intensity from 43.1 mm/s to 27.0 mm/s, with autonomous control to prevent common issues such as misfires and knocking.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP4.6NNG150E60 |
110/2300 |
550/1200-1800 |
4.58 |
P8 |
TWC |
Urban City Buses |
4 |
|
WP4.6NNG170E60 |
125/2300 |
600/1200-1800 |
4.58 |
P8 |
TWC |
Urban City Buses |
4 |
|
WP4.6NNG200E60 |
147/2300 |
650/1200-1800 |
4.58 |
P8 |
TWC |
Urban City Buses |
4 |
|
WP4.6NNG200E51 |
147/2300 |
660/1300-1700 |
4.58 |
Euro V |
Lean burn |
Urban City Buses |
4 |
|
WP4.6NNG170E51 |
125/2300 |
600/1200-1800 |
4.58 |
Euro V |
Lean burn |
Urban City Buses |
4 |
|
WP4.6NNG200E50 |
147/2300 |
660/1300-1700 |
4.58 |
Euro V |
Lean burn |
Urban City Buses |
4 |
|
WP4.6NNG170E50 |
125/2300 |
600/1200-1800 |
4.58 |
Euro V |
Lean burn |
Urban City Buses |
4 |
|
WP4.6NNG150E50L |
110/2300 |
550/1200-1800 |
4.58 |
Euro V |
Lean burn |
Urban City Buses |
4 |
|
WP4.6NNG150E51L |
110/2300 |
550/1200-1800 |
4.58 |
Euro V |
Lean burn |
Urban City Buses |
4 |
|
WP4.6NNG150E50C |
110/2300 |
550/1200-1800 |
4.58 |
Euro V |
Lean burn |
Urban City Buses |
4 |
|
WP4.6NNG150E51C |
110/2300 |
500/1200-1800 |
4.58 |
Euro V |
Lean burn |
Urban City Buses |
4 |
