产品概述

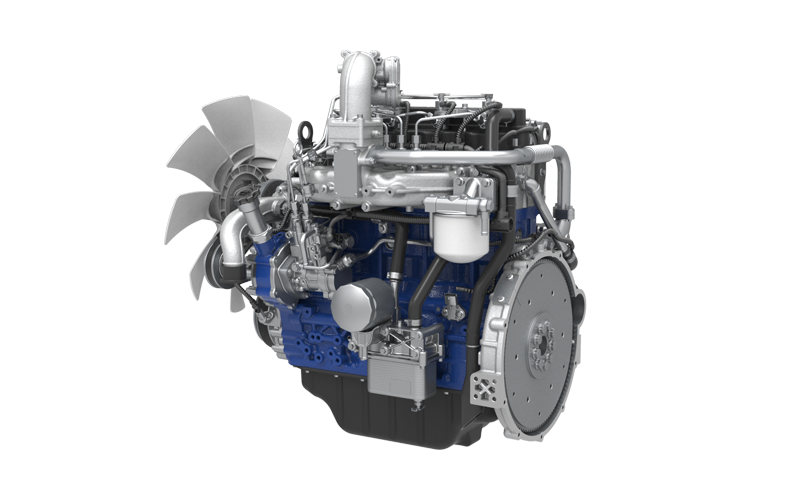

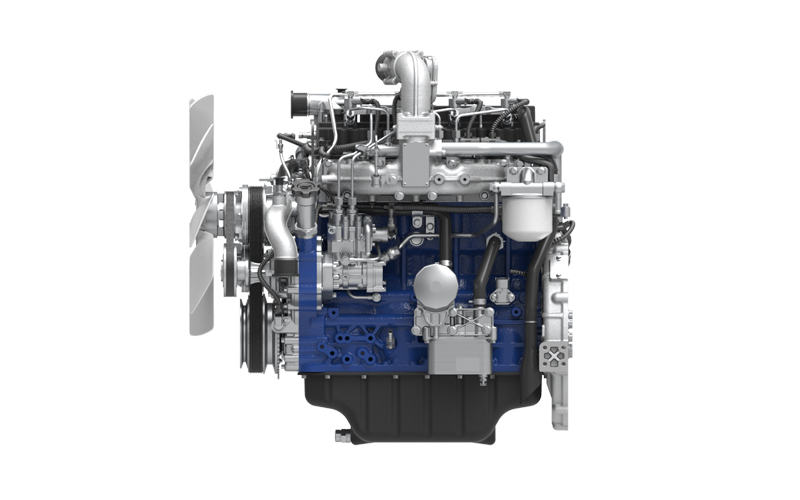

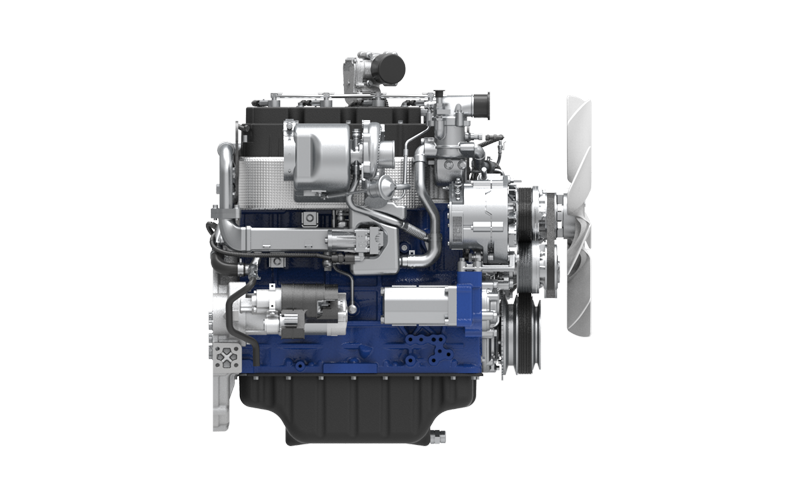

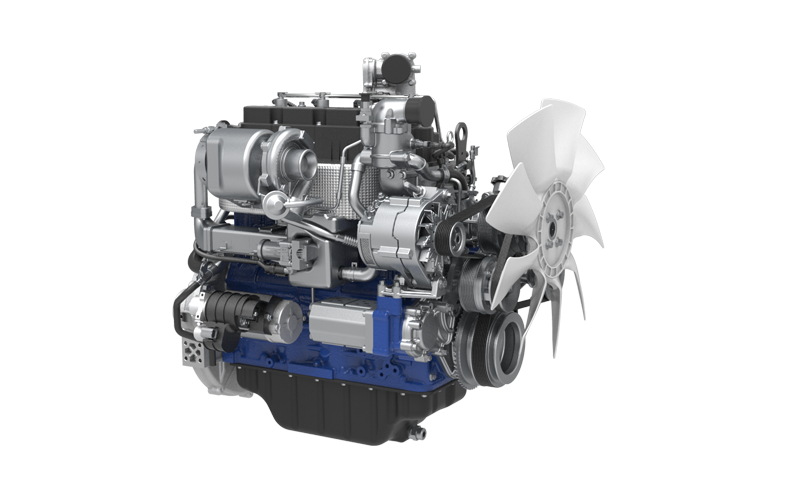

The WP3.6N is a dedicated power unit developed by Weichai for sprayers. Complies with EU Stage IIIA emission standards. Designed for sprayers with a spray width of ≤ 28 m.
产品优势
Power performance: Rapid power response, strong burst capability, and higher torque reserve.
Economy: Proprietary electronic high-pressure common rail system provides high injection pressure and superior atomization for lower comprehensive fuel consumption.
Comfort: Utilizes pilot injection technology and a high-precision meshing gear train to achieve low engine vibration and noise.
Adaptability: Standardized with dual PTO structures and an air compressor, reducing installation space requirements for the vehicle.
Emission compliance: Meets EU Stage IIIA standards.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Rated power/speed (kW/rpm) |
Peak torque/speed (N·m/rpm) |
Displacement (L) |
Emission standard |
Technical route |
Target applications |
Number of valves |
|
WP3.6NG96E301 |
70/2200 |
410/1600 |
3.58 |
Stage IIIA |
High-pressure common rail + Turbocharged and intercooled |
Sprayer |
4 |
|
WP3.6NG102E301 |
75/2200 |
435/1600 |
3.58 |
Stage IIIA |
High-pressure common rail + Turbocharged and intercooled |
Sprayer |
4 |
|
WP3.6NG112E301 |
82.5/2200 |
465/1600 |
3.58 |
Stage IIIA |
High-pressure common rail + Turbocharged and intercooled |
Sprayer |
4 |
|
WP3.6NG122E301 |
90/2200 |
500/1600 |
3.58 |
Stage IIIA |
High-pressure common rail + Turbocharged and intercooled |
Sprayer |
4 |
|
WP3.6NG136E301 |
100/2200 |
550/1600 |
3.58 |
Stage IIIA |
High-pressure common rail + Turbocharged and intercooled |
Sprayer |
4 |
|
WP3.6NG160E306 |
118/2400 |
610/1800 |
3.58 |
Stage IIIA |
High-pressure common rail + Turbocharged and intercooled |
Sprayer |
4 |
