产品概述

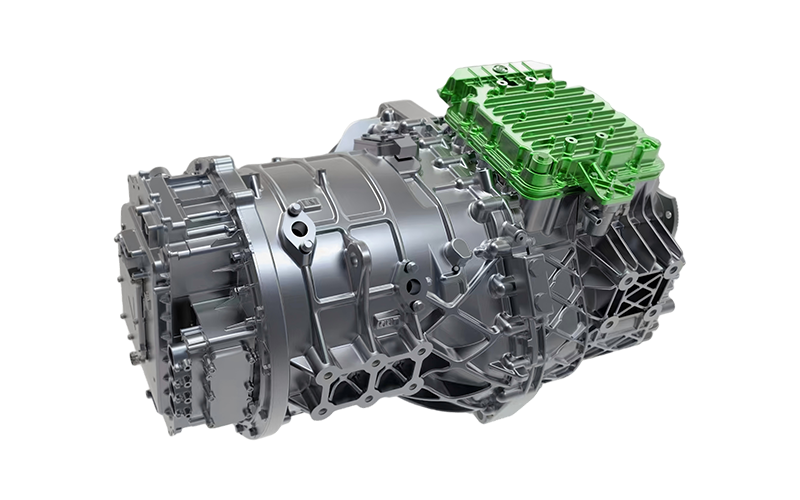

Integrated system including motor, electronic control unit (ECU), and reduction gearbox, utilizing a 4-speed configuration with a dual-countershaft design and integrated gear-shifting actuator for high reliability.
产品优势
Integrated system including motor, electronic control unit (ECU), and reduction gearbox, utilizing a 4-speed configuration with a dual-countershaft design and integrated gear-shifting actuator for high reliability.
Compact assembly profile, low cost, and high product value-added.
All-aluminum alloy housing for reduced weight and high torque density.
Full helical and crowned gear design with precision gear grinding for low-noise operation.
Forced lubrication system integrated into the front auxiliary gearbox for improved lubrication efficiency.
Wide gear ratio range with optional ratios available to suit various operating conditions.
产品规格
|
Motor Rated/Peak Power (kW) |
286/450 |
|
Motor Rated/Peak Torque (N·m) |
750/1500 |
|
Max. motor speed (rpm) |
7000 |
|
Gear ratios |
17.126/1.000 |
|
Electric drive assembly weight (kg) |
410 |
|
Oil capacity (L) |
16.5 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
