产品概述

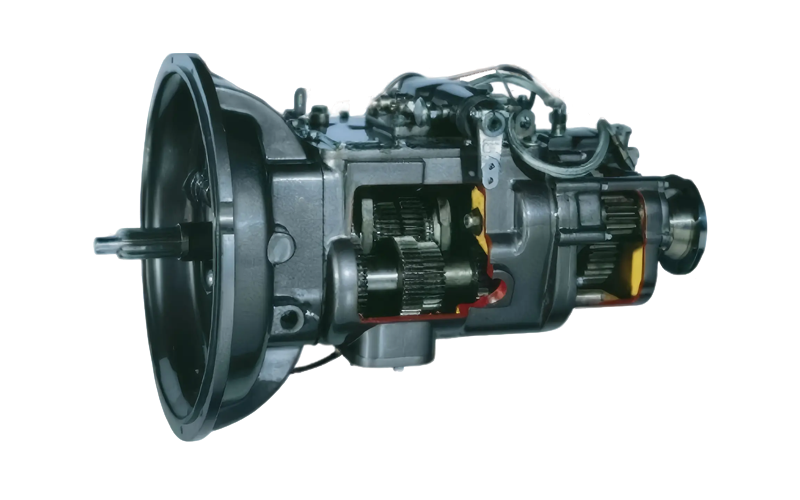

Twin-countershaft structure for power splitting, resulting in a shorter axial dimension for the same torque output; Reinforced design for critical gears, suitable for diverse and complex working conditions.
产品优势
Twin-countershaft structure for power splitting, resulting in a shorter axial dimension for the same torque output.
Reinforced design for critical gears, suitable for diverse and complex working conditions.
Increased center distance in the auxiliary section for higher load-bearing capacity.
Optional shift booster for optimized operating feel.
Optional helical gears for smooth engagement and improved vehicle ride comfort.
Various gear ratios for optimized matching; all-aluminum construction reduces weight by an average of 85-100 kg.
B10 life up to 1.2 million kilometers with world-leading reliability.
Compatible with power take-offs (PTOs) and retarders, meeting the requirements for dump trucks, special-purpose vehicles, and construction vehicles.
产品规格
|
Input torque (N·m) |
1180 |
|
Maximum speed (rpm) |
2600 |
|
Gear ratio |
1.000-10.307 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
