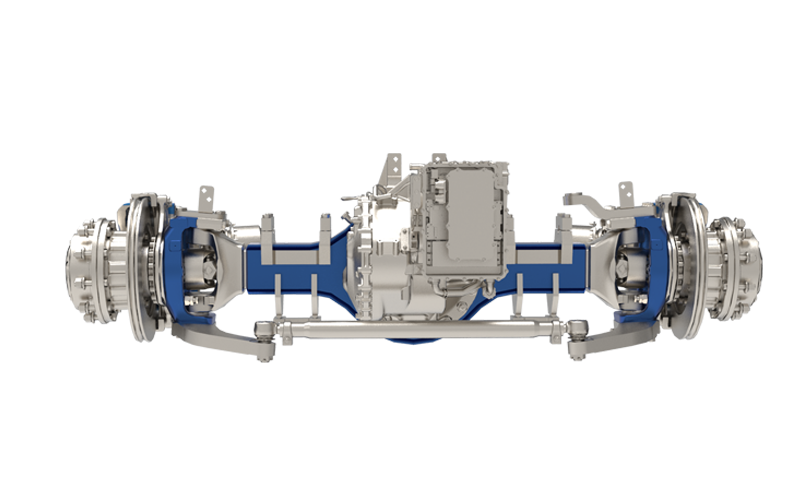

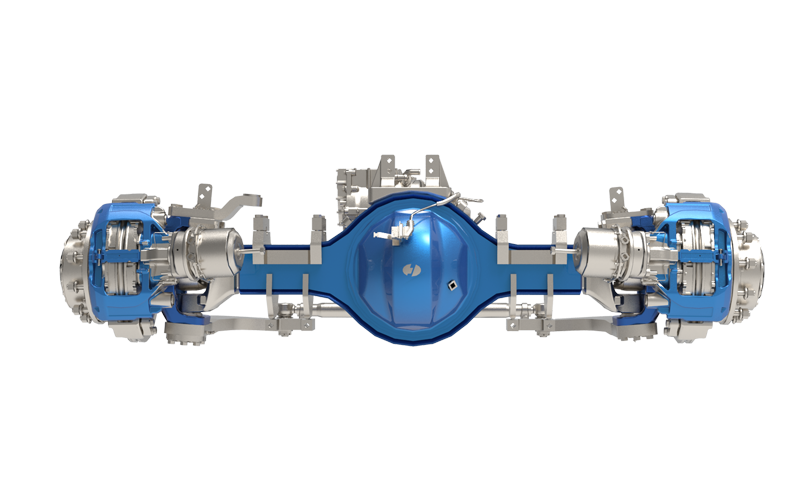

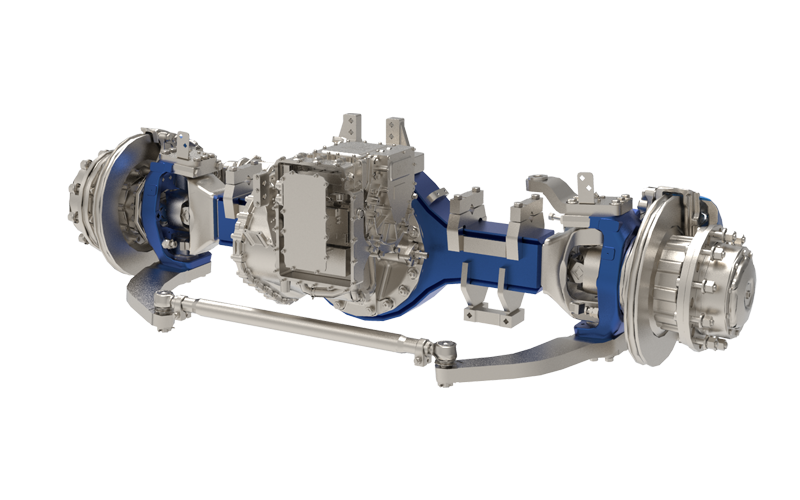

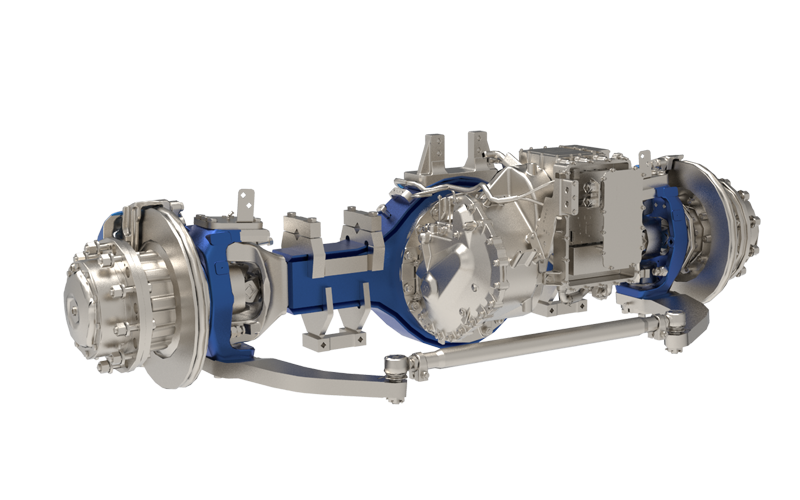

产品概述
Hande drive axles offer leading advantages in reliability and lightweight design, with core components featuring maintenance-free configurations to deliver maximum value to users.
产品优势
Low noise: micro tooth surface modification technology reduces noise by 3-5 dB
Long range: low-friction multi-element profile and property control improves transmission efficiency by 4-6%
Lightweight: lightweight design reduces curb weight, 180 kg lighter than the direct-drive solution
产品规格
| Ratio | Gear I: 98.268 Gear I: 25.498 |
| Maximum Output Torque (N·m) | 50000 |
| Rated axle load (kg) | 12000 |
| End-face mounting distance (mm) | 2284 |
| Wheel bolts | 20xM22x1.5 |
| Motor Peak Speed (r/min) | 11000 |
| Motor Peak Torque (N·m) | 550 |
| Motor Peak Power (KW) | 230 |
| Braking Torque (N·m) | 100000 |
| Applicable vehicle models | 50-80 t truck crane |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
