产品概述

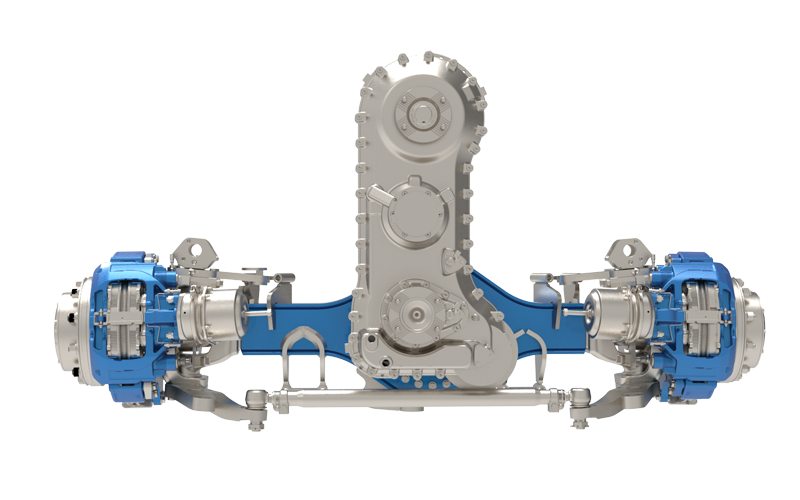

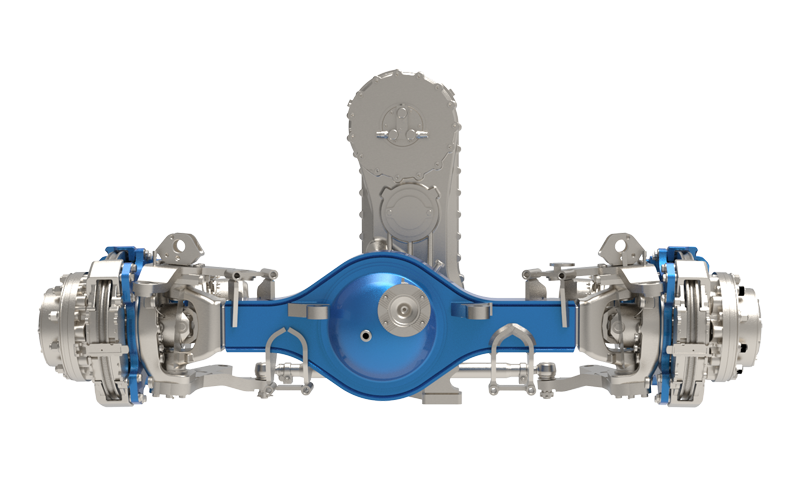

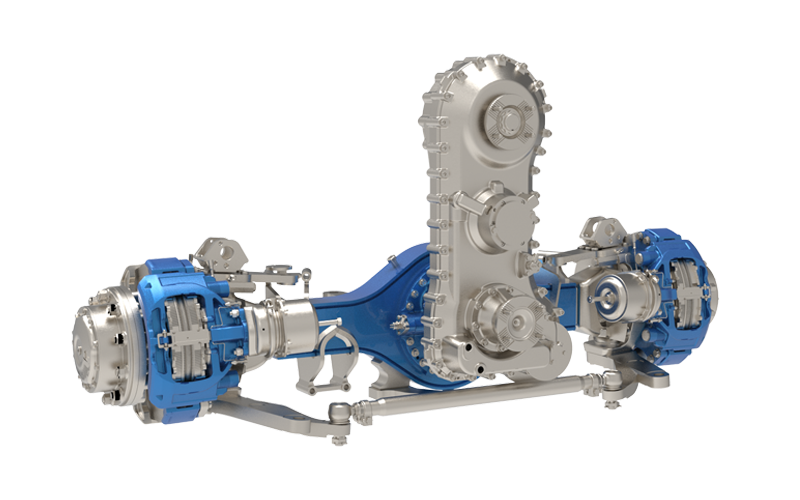

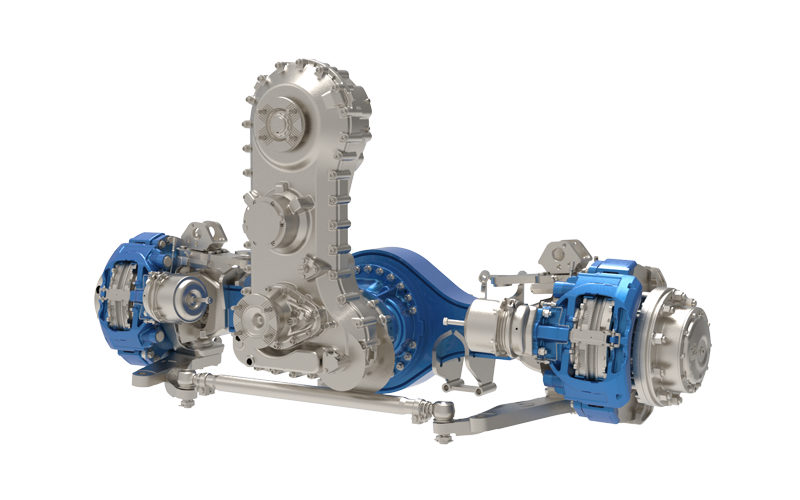

Hande drive axles offer leading advantages in reliability and lightweight design, with core components featuring maintenance-free configurations to deliver maximum value to users.
产品优势
Lightweight: adopts a high-intensity lightweight axle housing design to reduce vehicle weight and improve fuel economy.
High performance: matched with an electromagnetic retarder to solve the layout issue of the multi-axle drive powertrain.
Ultra-compact: integrated design of the transfer case and axle saves vehicle space and reduces the turning radius.
产品规格
| Ratio | 8.88, 9.21 |
| Maximum Output Torque (N·m) | 75000 |
| Rated axle load (kg) | 12000 |
| End-face mounting distance (mm) | 2273 |
| Wheel weight (kg) | 1271 |
| Maximum Input Speed (r/min) | 3200 |
| Transfer case ratio | Low gear: 3.052 High gear: 0.982 |
| Braking Torque (N·m) | 100000(0.8MPa/24 in brake chamber, 25 in dual calipers) |
| Applicable vehicle models | 3-axle all-terrain crane |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
