产品概述

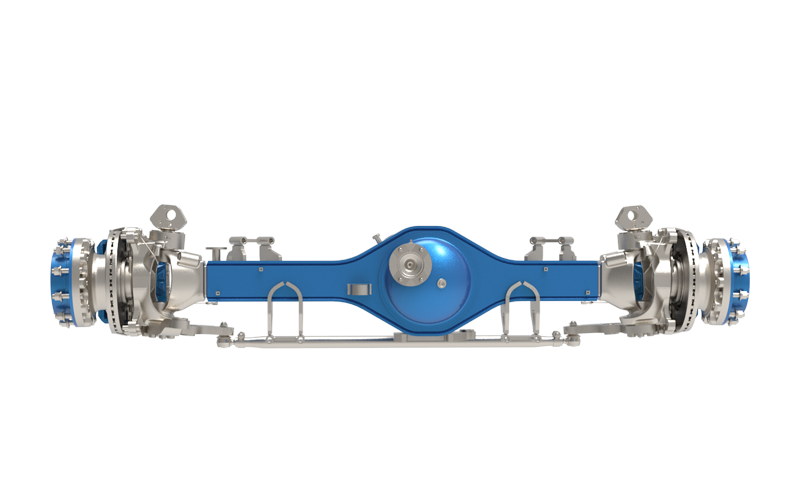

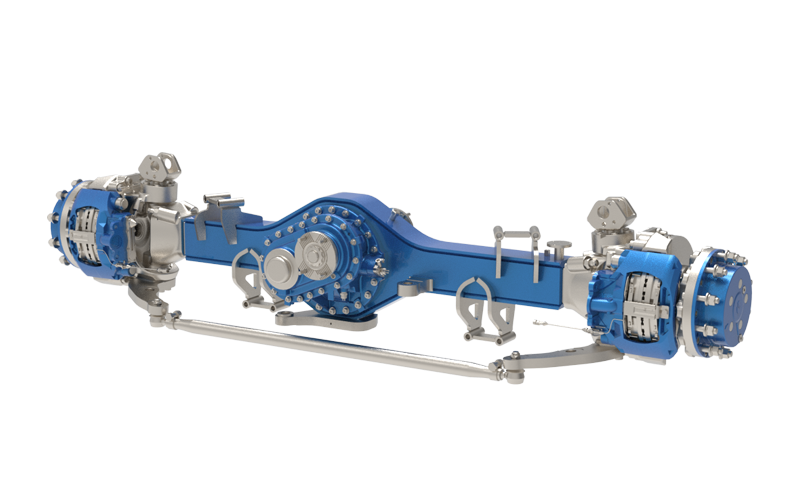

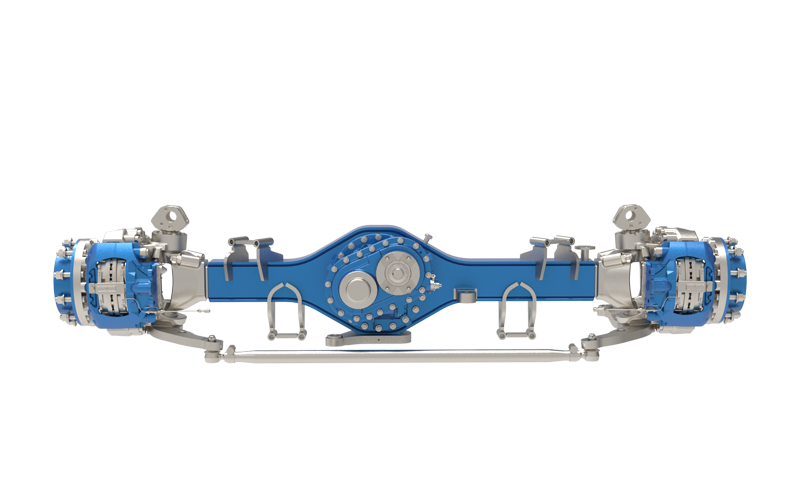

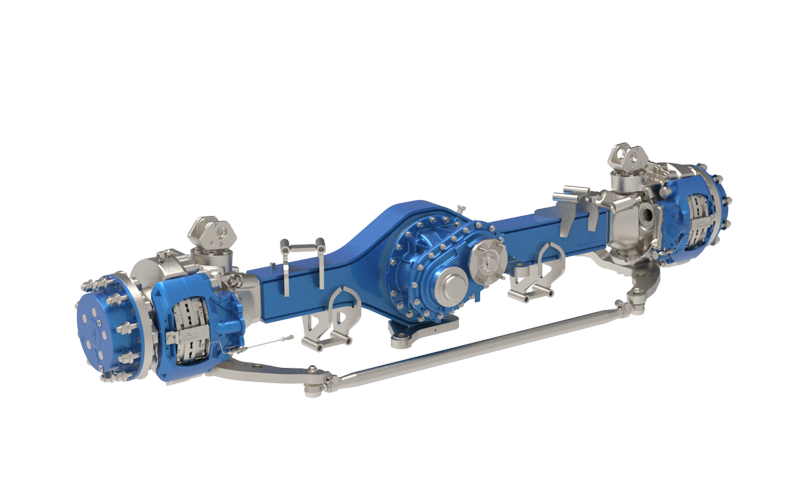

Hande drive axles offer leading advantages in reliability and lightweight design, with core components featuring maintenance-free configurations to deliver maximum value to users.
产品优势
Lightweight: optimized axle housing and suspension design, with weight reduction design for the axle fork, reducing weight by 34 kg and the rear axle by 30 kg.
More convenient: fewer types of components enable efficient and convenient service, with the wheel end weight reduced by 23 kg.
High adaptability: a disconnectable final drive module can be adopted to improve adaptability to complex operating conditions.
产品规格
| Ratio | 9.21 |
| Maximum Output Torque (N·m) | 75000 |
| Rated axle load (kg) | 12000 |
| End-face mounting distance (mm) | 2712 |
| Wheel bolts | 20xM22x1.5 |
| Wheel weight (kg) | 877 |
| Maximum Input Speed (r/min) | 3500 |
| Braking Torque (N·m) | 88000Nm(0.8MPa/24 in brake chamber, 22.5 in dual calipers) |
| Applicable vehicle models | 60-300 t, 2-6-axle all-terrain cranes |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
