产品概述

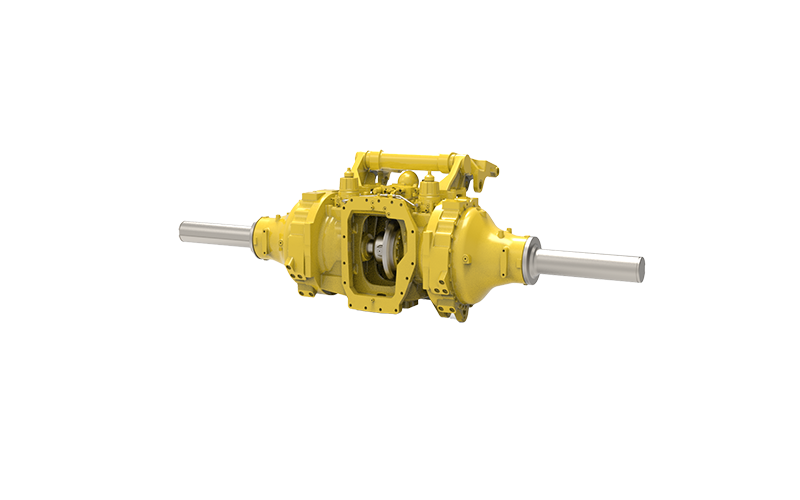

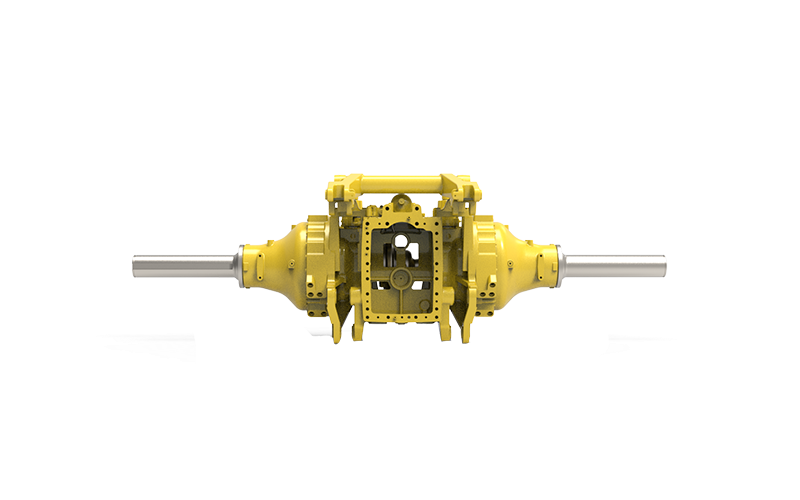

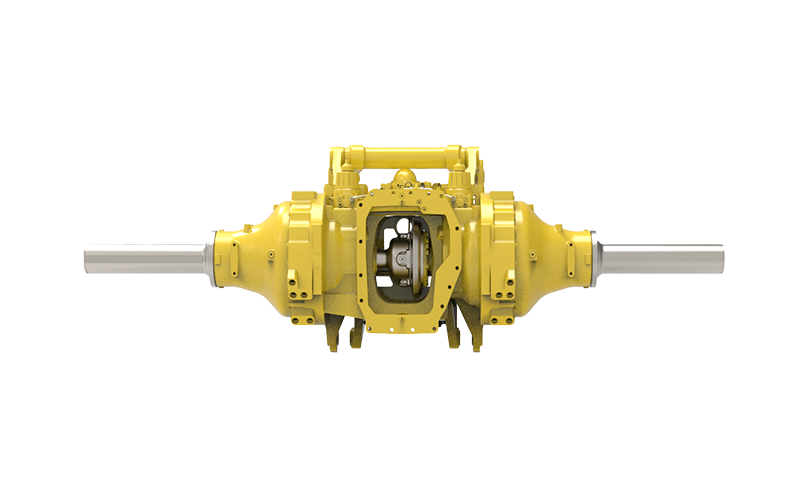

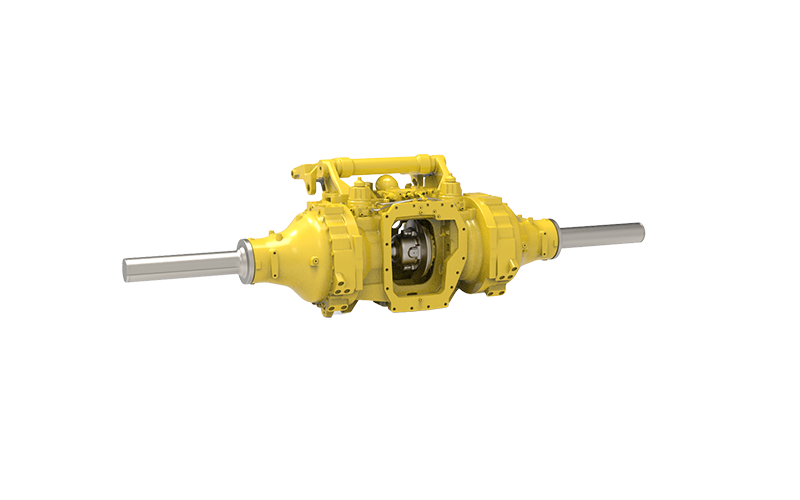

Hande agricultural machinery axles offer leading advantages in reliability, efficiency, and sealing performance, delivering maximum value to customers.
产品优势
High Reliability: Manufactured with high-strength ductile iron, improving load-bearing performance by 10–12%. Features equal-height tooth design for a 10% increase in reliability, and a 4% larger differential sphere diameter, making it ideal for low-speed, high-torque applications.
High Sealing: The main reduction input oil seal and hub oil seal utilize imported cassette seals, while the dual universal joint shaft oil seal employs a high-strength double-lip oil seal.
产品规格
|
Rated Dynamic Load (t) |
10.8 |
|
Total Ratio |
42.052 |
|
Maximum output torque (N·m) |
138000 |
|
Service Braking Torque (N·m) |
At 8 MPa, the axle braking torque is 69,000 N·m; maximum pressure ≤ 12 MPa |
|
Parking Braking Torque (N·m) |
69000 |
|
Target applications |
240–340 PS agricultural equipment |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
