产品概述

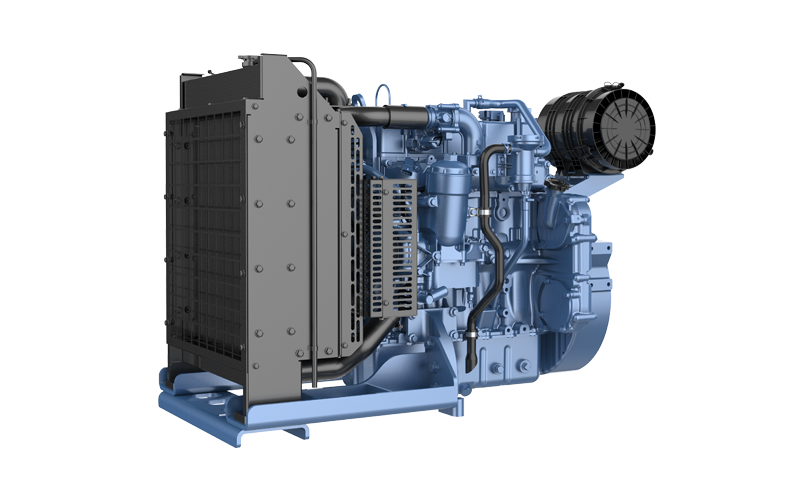

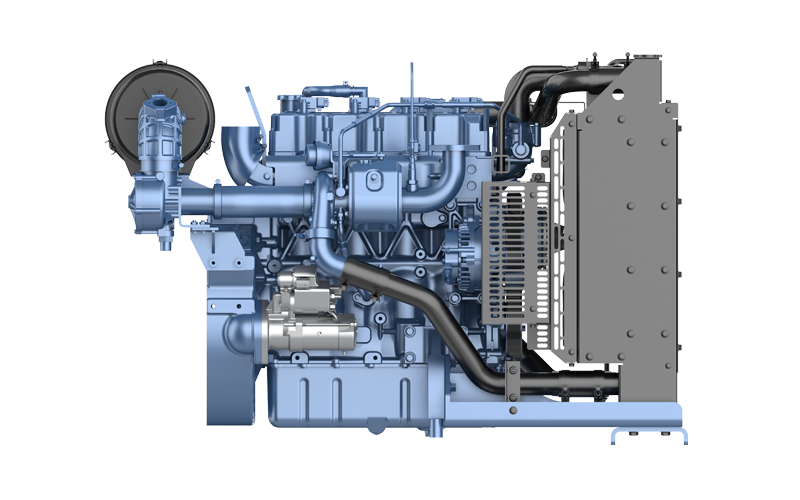

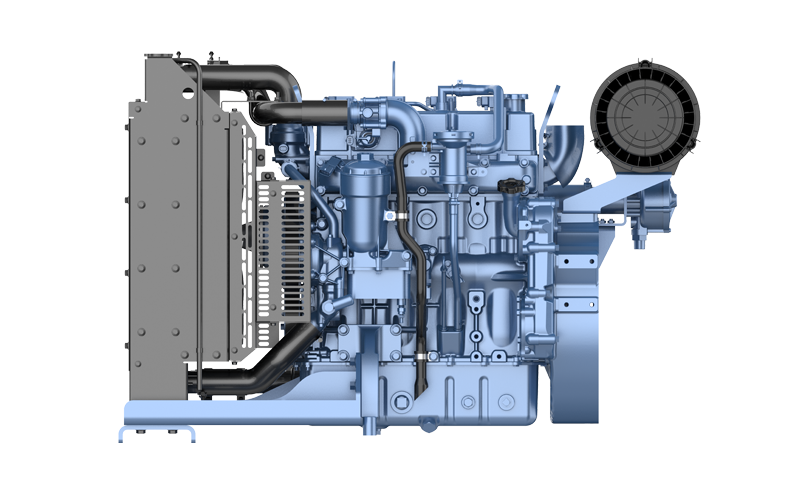

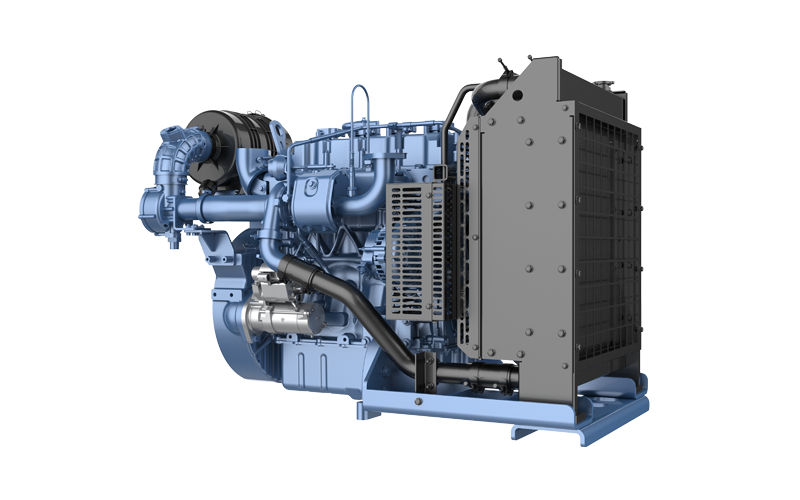

The next-generation gas engine independently developed by Weichai, featuring high reliability, superior economy, robust environmental adaptability, and low maintenance costs; Continuous power output ranges from 20 to 30 kWm, suitable for 16–24 kWe generator sets.
产品优势
Superior economy: Weichai's proprietary control system and turbocharged intercooled air intake system effectively improve the air-fuel ratio and reduce gas consumption
Superior power performance: Compatible with 24 kWe generator sets, meets two-step load acceptance requirements, and offers excellent transient response
Compact design: Small footprint, lightweight, high power density, and space-saving
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Fuel |
|
4M07G0N0/5 |
2.97 |
2 |
20/1500 |
/ |
16 |
/ |
Natural gas |
|
4M07G2N0/5 |
2.97 |
2 |
20/1500 |
/ |
24 |
/ |
Natural gas |
