产品概述

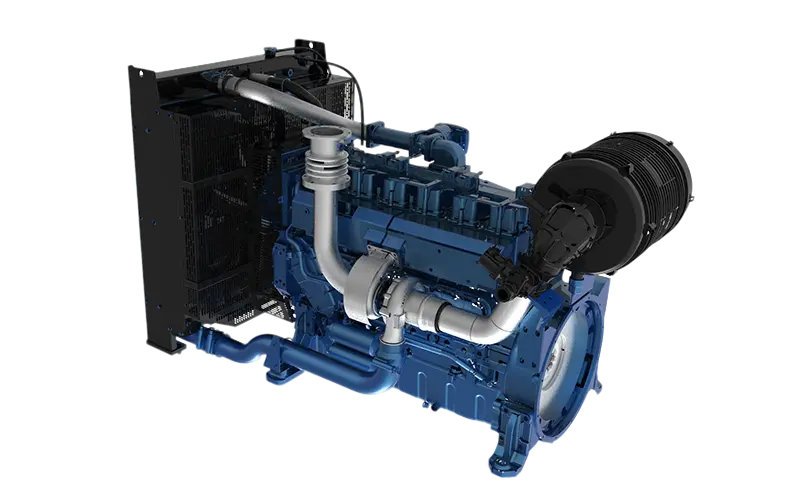

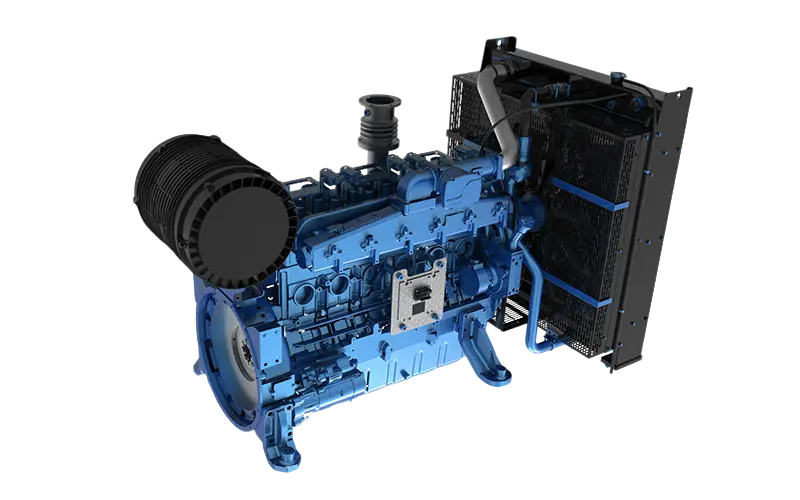

The 6M16NG series engine is a next-generation gas engine independently developed by Weichai, featuring high reliability, superior economy, robust environmental adaptability, and low maintenance costs; The 6M16NG gas engine has a continuous power output of 155 kWm, suitable for 120 kWe generator sets.
产品优势
Superior economy: World-class gas control system ensures precise air-fuel ratio management, resulting in an 8% increase in combustion efficiency and over 10% lower gas consumption costs compared to similar products
Superior power performance: Rapid response, specifically designed to meet the rigorous requirements of the power generation industry, with excellent load acceptance capability
Simplified maintenance: Clean natural gas combustion reduces carbon deposits, extending the major overhaul interval to 15,000 hours and reducing maintenance frequency and downtime losses
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Fuel |
|
6M16G4N0/5 |
9.73 |
2 |
155/1500 |
182/1500 |
205 |
250 |
Natural gas |
|
6M16G4N0/6 |
9.73 |
2 |
184/1800 |
216/1800 |
145 |
180 |
Natural gas |
