产品概述

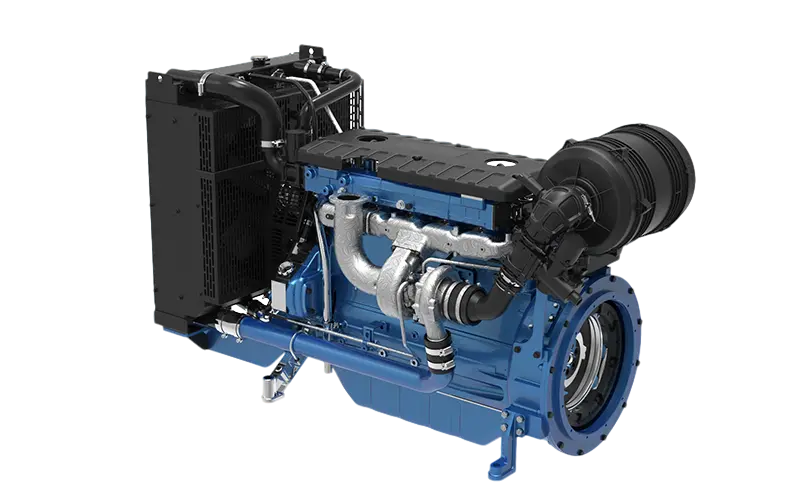

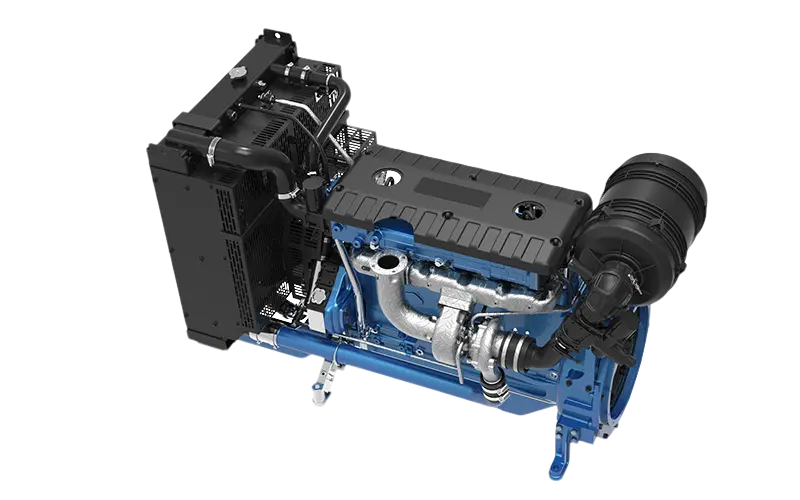

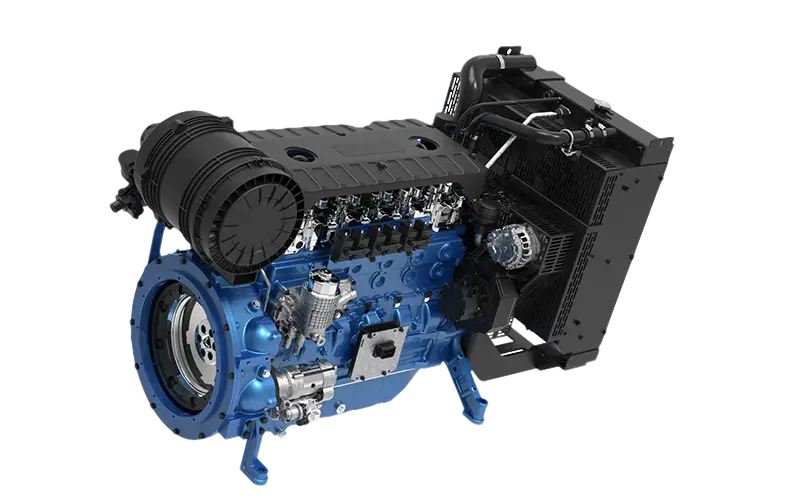

The 6M11NG series engine is a next-generation gas engine independently developed by Weichai, featuring high reliability, superior economy, robust environmental adaptability, and low maintenance costs; The 6M11NG gas engine has a continuous power output of 102 kWm, suitable for 80 kWe generator sets.
产品优势
Superior economy: World-class gas control system ensures precise air-fuel ratio management, resulting in an 8% increase in combustion efficiency and over 10% lower gas consumption costs compared to similar products
Superior power performance: Rapid response, specifically designed to meet the rigorous requirements of the power generation industry, with excellent load acceptance capability
Simplified maintenance: Clean natural gas combustion reduces carbon deposits, extending the major overhaul interval to 15,000 hours and reducing maintenance frequency and downtime losses
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Fuel |
|
6M11G4N0/5 |
6.75 |
2 |
102/1500 |
120/1500 |
80 |
100 |
Natural gas |
|
6M11G4N0/6 |
6.75 |
2 |
102/1800 |
120/1800 |
80 |
100 |
Natural gas |
