产品概述

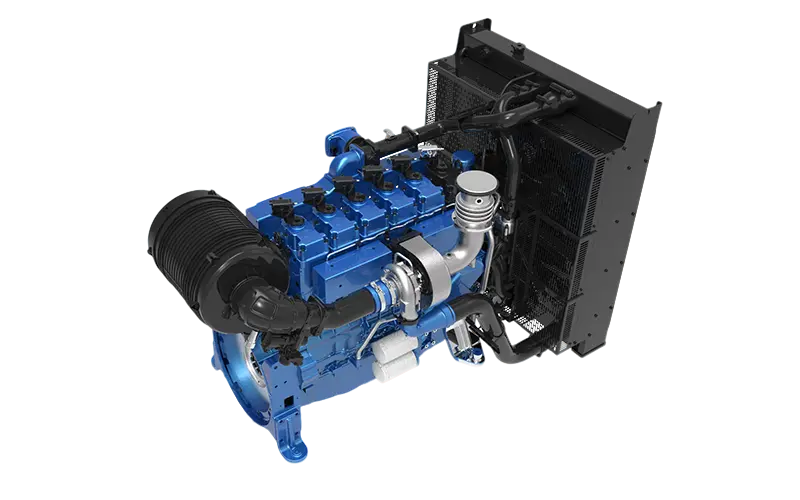

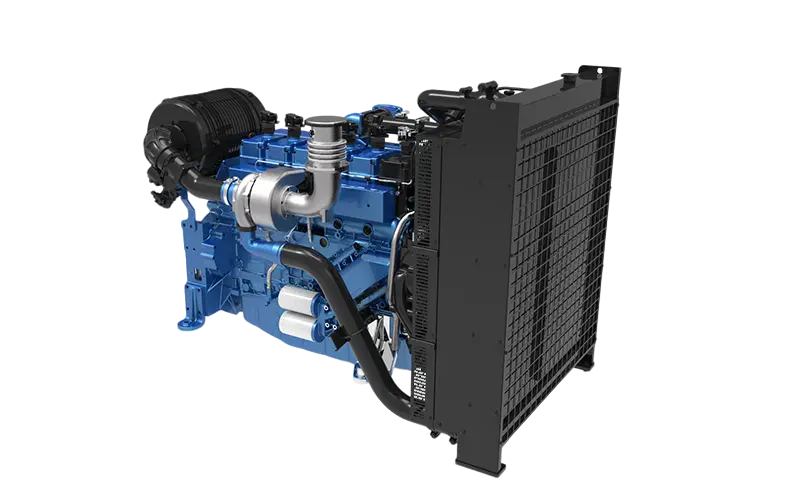

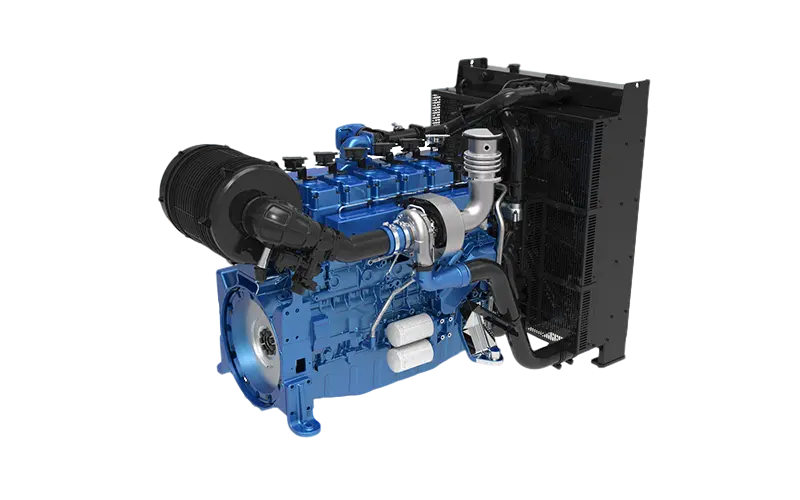

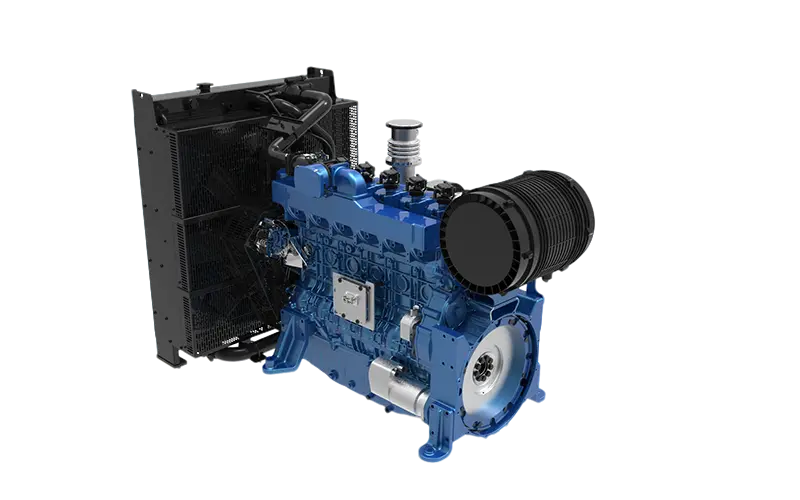

The 6M21NG series engine is a next-generation gas engine independently developed by Weichai, featuring high reliability, superior economy, robust environmental adaptability, and low maintenance costs; The 6M21NG gas engine has a continuous power output of 245 kWm, suitable for 205 kWe generator sets.
产品优势
High-strength design with optimized key components to better adapt to the high thermal load characteristics of gas engines; Equipped with an internationally advanced electronic control system, featuring a mature and reliable architecture for precise control across all operating conditions
Superior economy: Advanced ignition system and optimized combustion chamber design ensure more reliable ignition and reduced misfire rates; Closed-loop air-fuel ratio control and cylinder-to-cylinder uniformity control enable more precise air-fuel management, fully optimized combustion, and lower gas consumption
Strong environmental adaptability: Capable of stable operation within an ambient temperature range of -30℃ to 50℃
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Fuel |
|
6M21G4N0/5 |
12.54 |
4 |
245/1500 |
288/1500 |
205 |
250 |
Natural gas |
|
6M21G4N0/6 |
12.54 |
4 |
245/1800 |
288/1800 |
205 |
250 |
Natural gas |
