Highly integrated control system for comprehensive monitoring of engine operating status and high reliability.
Suitable for oil & gas field and power plant applications
功率范围 kW/Ps
最大扭矩/转速 N·m / r/min
产品概述

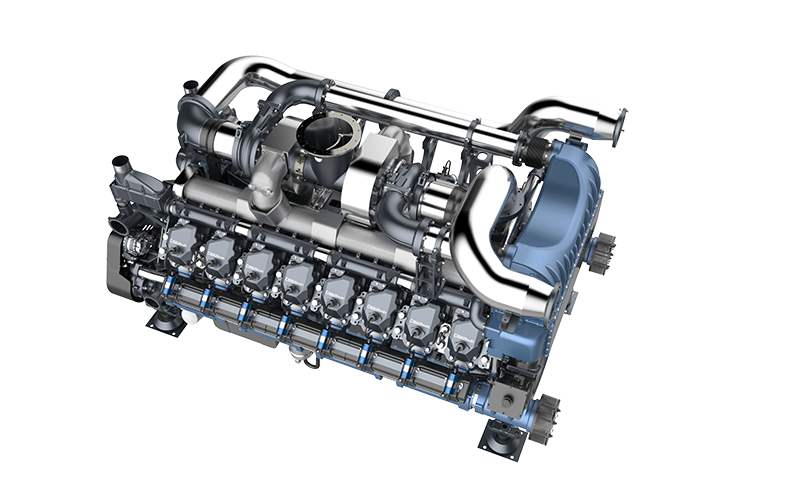

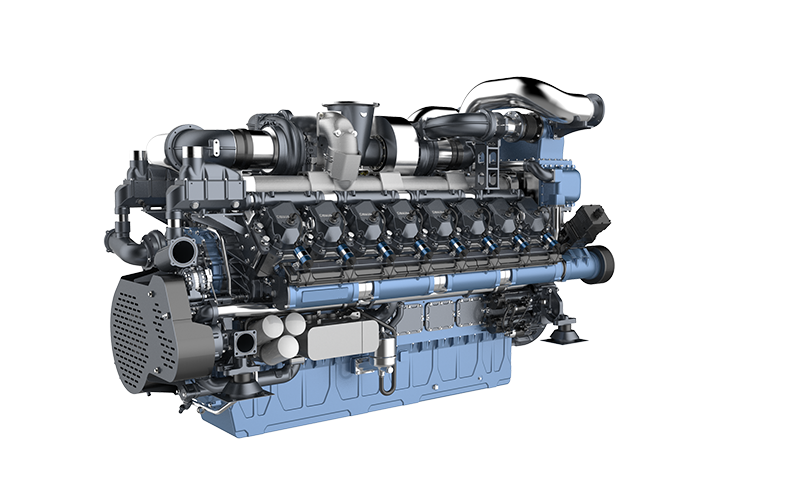

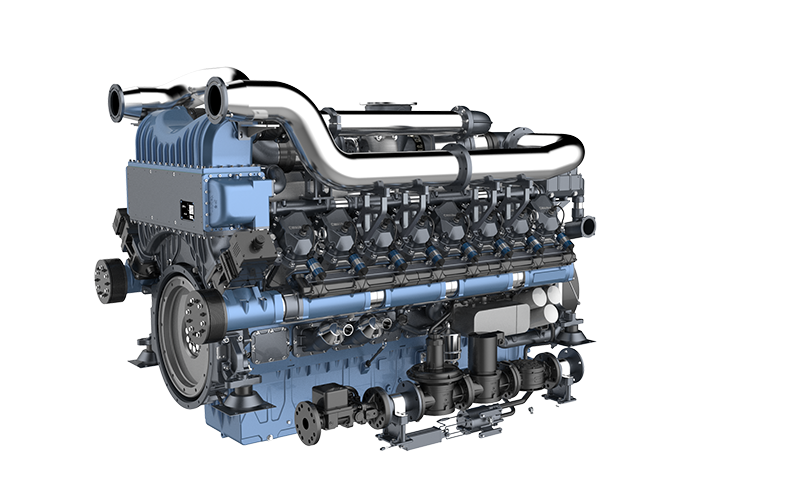

The 16M33 gas engine is a new-generation product of the high-end M33 engine platform; Power output ranges from 1150 to 1280 kWm, suitable for 1000–1100 kWe generator sets.
产品优势
High reliability: Intelligent fault diagnosis, misfire monitoring, and knock protection ensure more reliable engine operation and enable unmanned monitoring.
Superior economy: Advanced ignition system and optimized combustion chamber design ensure more reliable ignition; Specialized valve seals and piston rings are used to reduce lube oil consumption, achieving a specific oil consumption rate of less than 0.2 g/(kW·h).
Strong environmental adaptability: The engine can operate on various combustible gases such as natural gas, oilfield associated gas, and biogas.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Engine Model |
Displacement (L) |
Valves per Cylinder |
Prime Power/Speed (kWm/rpm) |
Standby Power/Speed (kWm/rpm) |
Recommended Prime Power of the genset (kWe) |
Recommended Standby Power of the genset (kWe) |
Fuel |
|
16M33G6B0/5 |
52.3 |
4 |
1150/1500 |
/ |
1000 |
/ |
Biogas |
|
16M33G6N0/5 |
52.3 |
4 |
1280/1500 |
/ |
1100 |
/ |
Natural gas |
|
16M33G6A0/5 |
52.3 |
4 |
1280/1500 |
/ |
1100 |
/ |
Associated gas |
|
16M33G4A0/5 |
52.3 |
4 |
1150/1500 |
/ |
1000 |
/ |
Associated gas |
|
16M33G6N0/6 |
52.3 |
4 |
1280/1800 |
/ |
1100 |
/ |
Natural gas |
|
16M33G6B0/6 |
52.3 |
4 |
1150/1800 |
/ |
1000 |
/ |
Biogas |
