WEICHAI

4M11 Series Industrial Engine

Rugged, durable, and versatile, suitable for various industrial power segments.

Suitable for low-pressure water pumps, air compressors, and drilling rigs

60-118

功率范围 kW/Ps

600/1600-1800

最大扭矩/转速 N·m / r/min

产品概述

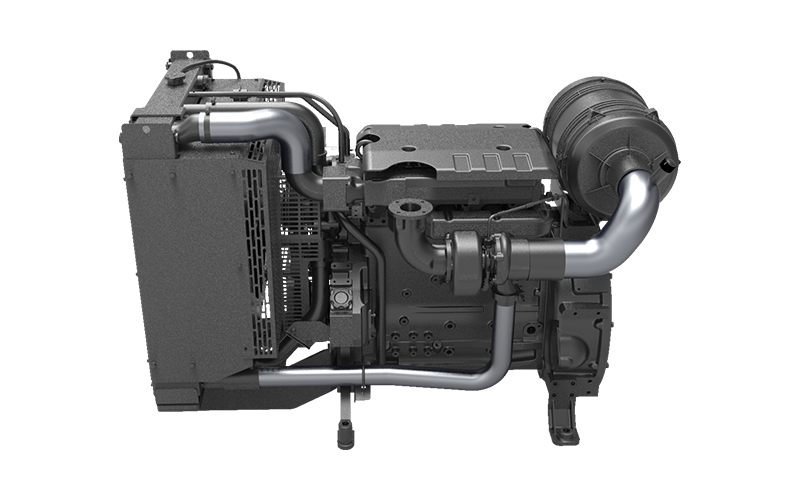

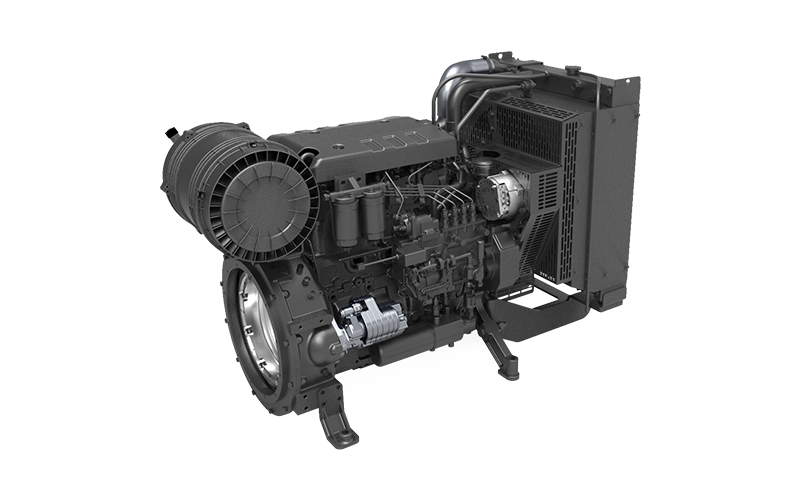

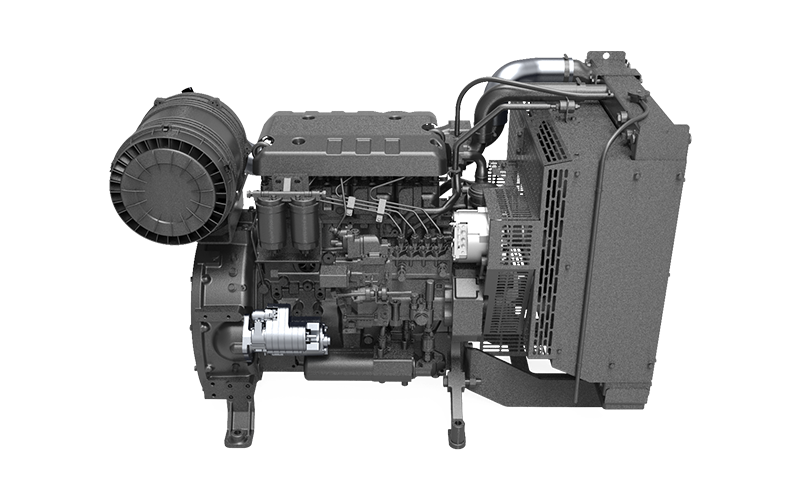

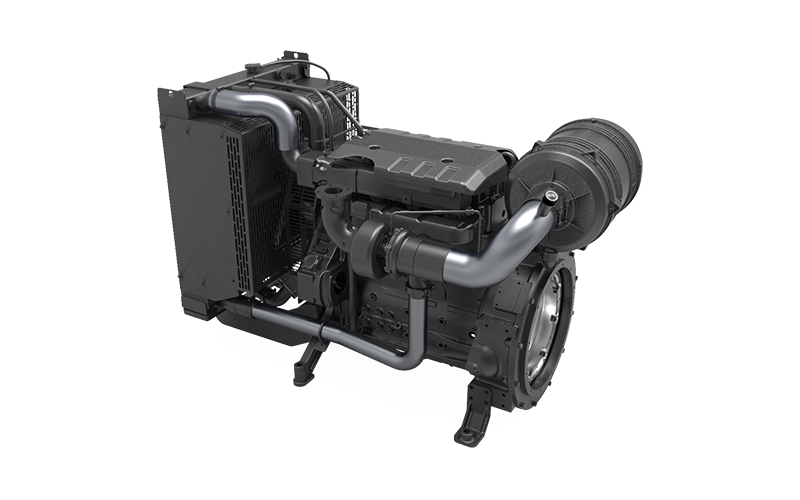

The 4M11 engine features a 4.5L displacement with a power range of 60-118 kW. It meets non-emission requirements and is applicable to industries such as low-pressure water pumps, air compressors, and drilling rigs.

产品优势

Fuel System: Designed for complex and variable industrial operating conditions to meet various control and speed regulation requirements.

Air Intake System: High-efficiency turbocharger for optimized air intake and more efficient combustion.

Cooling System: Features low noise levels, high environmental adaptability, and an integrated radiator for superior heat dissipation.

After-sales Service: We have established a multi-language factory support system, leveraging a global service network and spare parts supply to provide customers with comprehensive and efficient support. Providing application engineering and on-site installation services to ensure smooth product deployment and optimal performance. Through our marketing partner program, multi-language service training, and industry-leading warranty policies, we provide full-lifecycle technical support and partnership value to enhance customer experience and operational reliability.

产品规格

功率范围 kW/Ps
60-118
最大扭矩转速 N·m / r/min
600/1600-1800
排放标准
Zero emission
产品系列
燃料
Diesel
发动机型式
In-line
气缸数/气门数
4/2
缸径 × 行程mm
排量 L
4.5
进气方式
Turbocharged and air-to-air intercooled
压缩比
燃烧系统
发动机尺寸(长X宽X高) mm
1216.5×825.1×976
G重量 kg
580

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Model

Displacement (L)

Rated power/speed (kW/rpm)

Peak torque/speed (N·m/rpm)

Governing System

Emission standard

4M11V2D0

4.5

60/2200

325/1300-1700

Mechanical governor

Zero emission

4M11V4D0

4.5

100/2200

540/1300-1700

Mechanical governor

Zero emission

4M11V6D0

4.5

118/2300

600/1600-1800

Mechanical governor

Zero emission
