产品概述

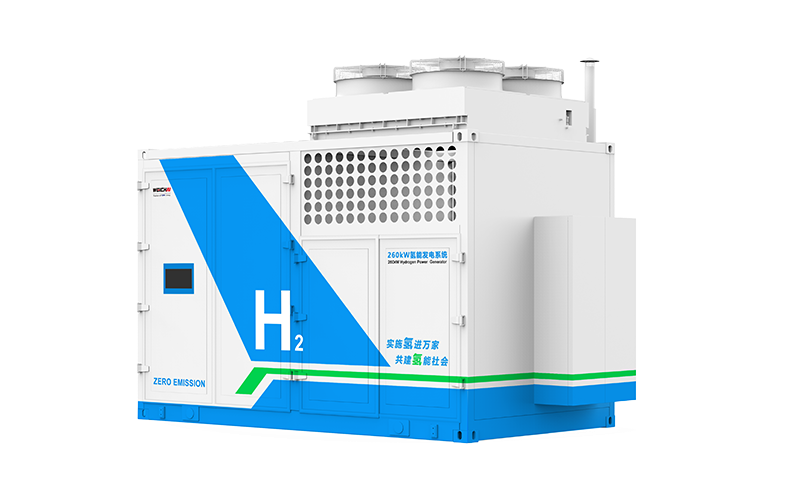

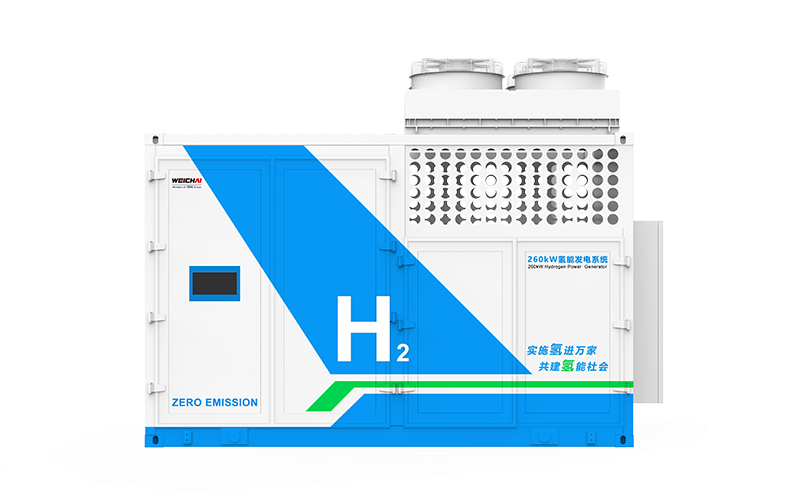

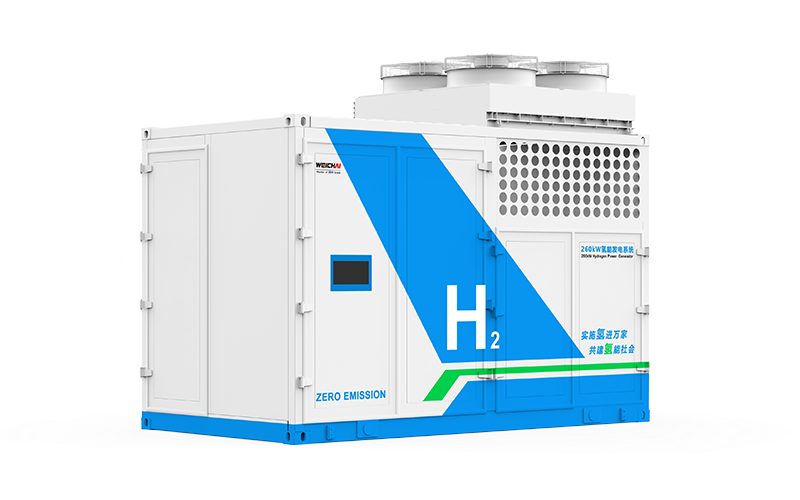

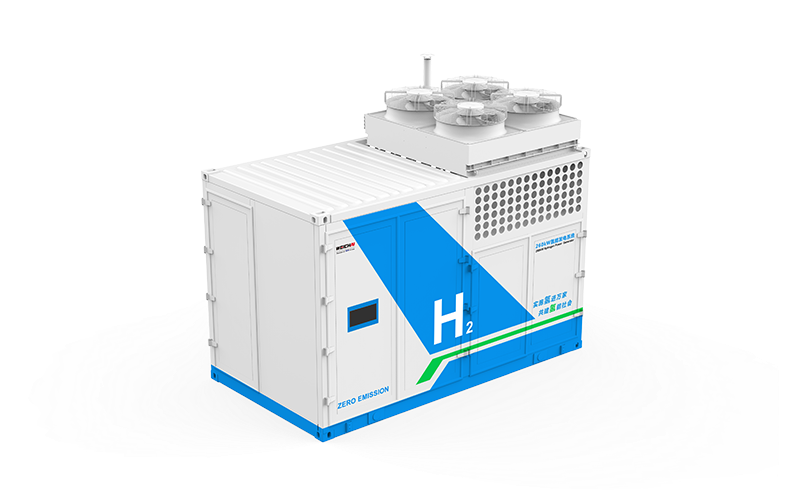

Developed based on mature engine technology with a power output up to 260 kW, suitable for multiple application scenarios, featuring high efficiency, environmental friendliness, intelligent management, fast response, and low noise.
产品优势
High Safety: Adopts a hydrogen-electric-thermal isolated distributed layout, combined with explosion-proof zoning and protection design for critical components. Features forced ventilation and active/passive fire protection interlocking mechanisms to prevent safety risks at the source and ensure inherent system safety.
High Reliability: Validated through extensive long-duration and multi-scenario testing. Features a string-type electrical architecture to enhance fault tolerance, coupled with real-time health monitoring and intelligent diagnostics to provide early warnings and ensure long-term stable operation.
High Adaptability: Modular design supports rapid assembly and flexible configuration, allowing for quick integration of waste heat recovery and off-grid functions. Capable of full-power operation in wide temperature ranges from -35 °C to 45 °C and at high altitudes, suitable for diverse application scenarios.
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Model |
Power Supply Mode |
Control & Monitoring |
Rated Electrical Power Output (kW) |
Total Efficiency |
Power Generation Efficiency |
Water Supply Temperature (°C) |
Power Output (V AC) |
Hydrogen Inlet Pressure (MPa) |
Operating Ambient Temperature (°C) |
Dimensions (L × W × H) |
Weight (t) |
Application Scenario |
|
WEFG260 |
Grid-tied / Off-grid |
Local / Remote |
260 |
≥ 80% |
≥ 50% |
55 – 60 |
400 |
1.4-1.8 |
-35 – 45 |
4.5 × 2.5 × 3.5 m |
12 |
Hydrogen-rich industrial parks, energy storage for wind and solar power stations, data centers, charging stations, emergency power supplies, and backup power |
