产品概述

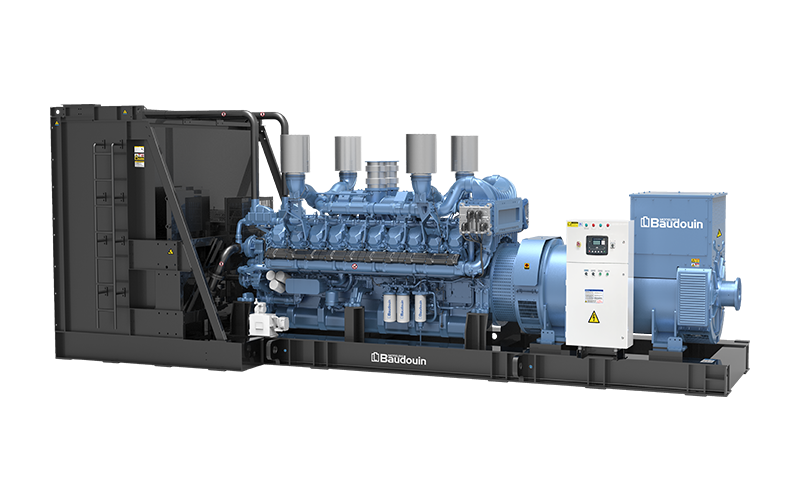

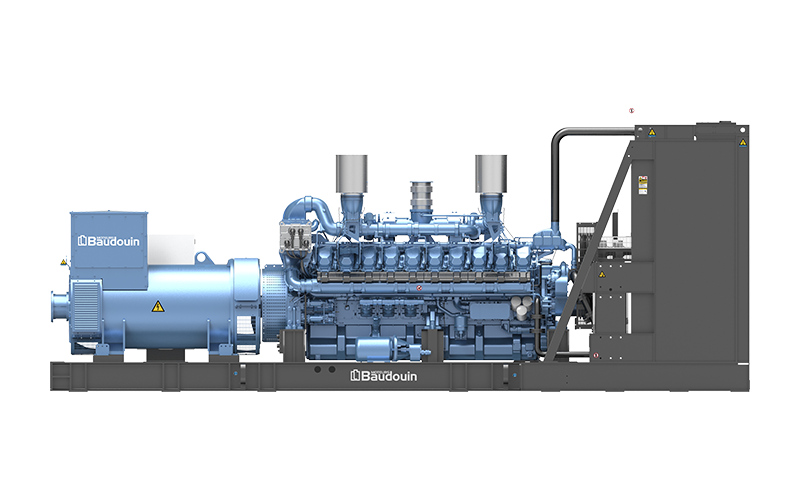

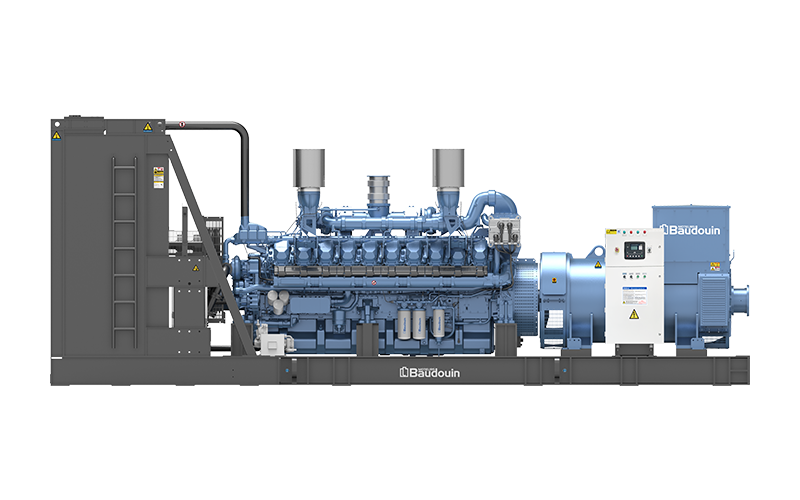

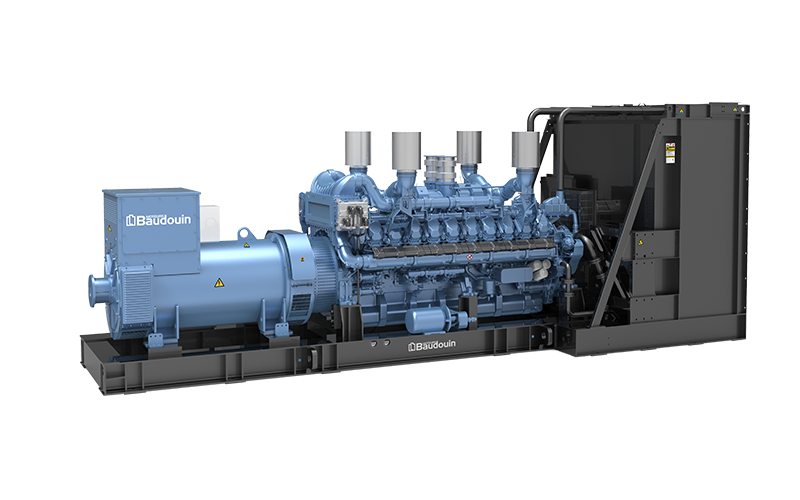

The 20M33 is a new product based on the next-generation premium M33 platform, with a power output ranging from 1850-2460 kWm, compliant with Non-emission/EPA Tier II standards, and suitable for 1600-2250 kWe generator sets.
产品优势
Emissions: Non-emission/EPA Tier II
High reliability: The cylinder block features a cast iron, grid-type structure for enhanced strength; Crankshaft made of high-strength alloy steel
High operating economy: Equipped with high-precision fuel filters and centrifugal rotor oil filters as standard to ensure superior filtration precision, providing cleaner fuel and oil; filter replacement interval reaches 500 hours; Reduced operating costs
High ease of maintenance: Inspection windows are located on both sides of the engine block to facilitate the replacement of connecting rods and rod bearings
Superior environmental adaptability: Equipped with 50℃ radiators, water heating, and intake air heating, it can adapt to various environmental conditions
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Genset Model |
Rated speed (rpm) |
Standby Power (kVA/kW) |
Prime Power (kVA/kW) |
Weichai Engine Model |
Cylinders |
Bore × Stroke (mm) |
Governing System |
Emission standard |
|
WPG2250*7 |
1500 |
2250/1800 |
2000/1600 |
20M33G2250/5 |
20 |
150×185 |
Electronic control |
Zero emission |
|
WPG2500*7 |
1500 |
2500/2000 |
2250/1800 |
20M33G2500/5 |
20 |
150×185 |
Electronic control |
Zero emission |
|
WPG2750*7 |
1500 |
2750/2200 |
2500/2000 |
20M33G2750/5 |
20 |
150×185 |
Electronic control |
Zero emission |
|
WPG2250*7 |
1500 |
2250/1800 |
2000/1600 |
20M33G2D2/5 |
20 |
150×185 |
Electronic control |
Non-emission/EPA Tier II |
|
WPG2500*7 |
1500 |
2500/2000 |
2250/1800 |
20M33G4D2/5 |
20 |
150×185 |
Electronic control |
Non-emission/EPA Tier II |
|
WPG2750*7 |
1500 |
2750/2200 |
2500/2200 |
20M33G6D2/5 |
20 |
150×185 |
Electronic control |
Non-emission/EPA Tier II |
|
WPG2000*76 |
1800 |
2500/2000 |
2250/1800 |
20M33G2000/6 |
20 |
150×185 |
Electronic control |
Zero emission |
|
WPG2250*76 |
1800 |
2813/2250 |
2500/2000 |
20M33G2200/6 |
20 |
150×185 |
Electronic control |
Zero emission |
|
WPG2000*76 |
1800 |
2500/2000 |
2250/1800 |
20M33G4D2/6 |
20 |
150×185 |
Electronic control |
Non-emission/EPA Tier II |
|
WPG2250*76 |
1800 |
2813/2250 |
2500/2000 |
20M33G6D2/6 |
20 |
150×185 |
Electronic control |
Non-emission/EPA Tier II |
