产品概述

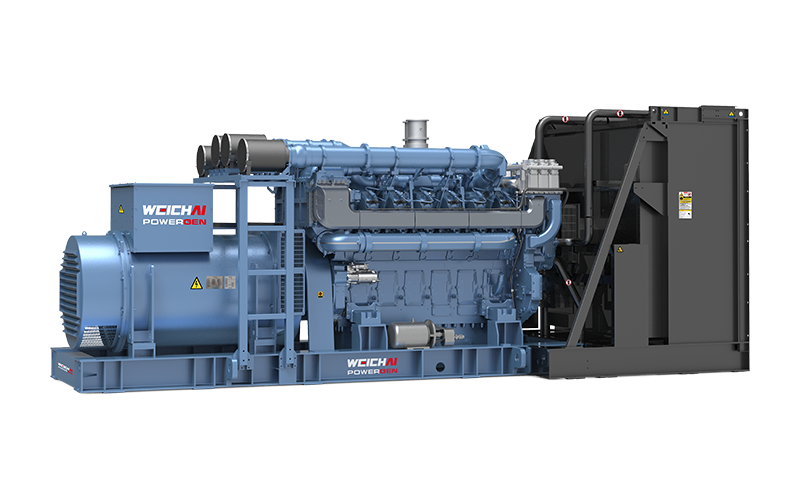

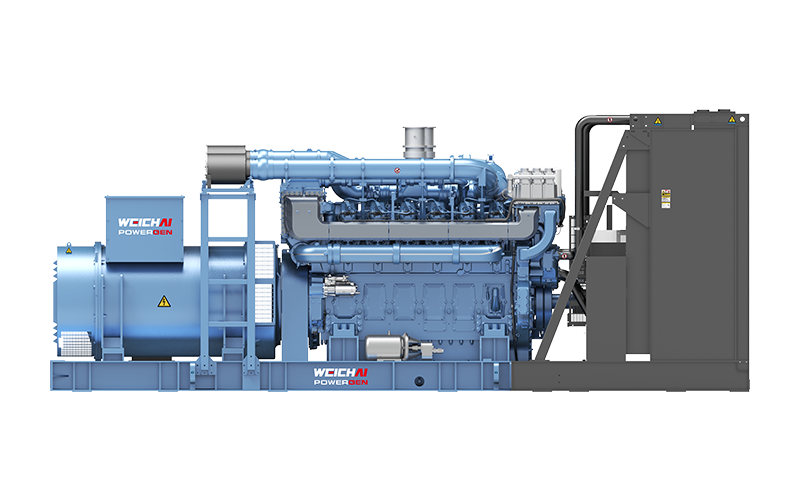

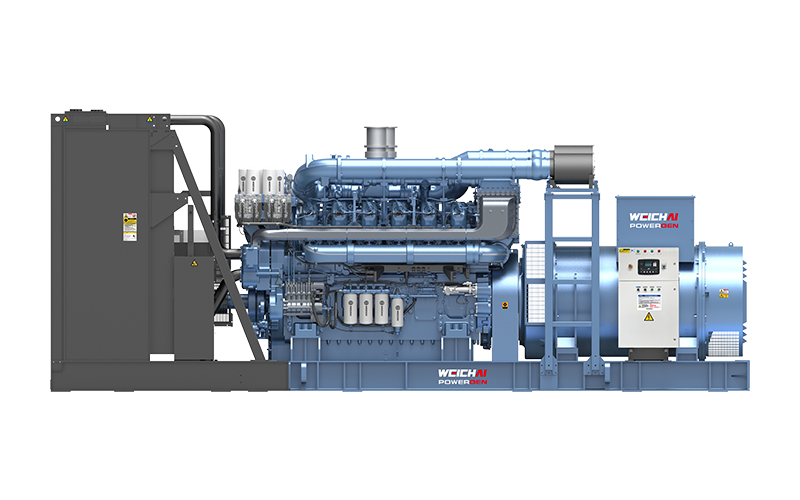

The 16M55 is a new product based on the next-generation premium M55 platform, with a power output ranging from 2646-3600 kWm, compliant with Non-emission/EPA Tier II standards, and suitable for 2400-3300 kWe generator sets.
产品优势
Emissions: Non-emission/EPA Tier II
High reliability: Cylinder block and cylinder head are made of compacted graphite iron (CGI) for high strength; Design life of 32000 h
High fuel economy: Equipped with a high-pressure common rail (HPCR) system featuring injection pressures up to 2200 bar, it enables multiple-injection strategies for improved fuel atomization and reduced fuel consumption
Excellent serviceability: Full-series modular design ensures high parts commonality and convenient spare parts availability
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Genset Model |
Rated speed (rpm) |
Standby Power (kVA/kW) |
Prime Power (kVA/kW) |
Weichai Engine Model |
Cylinders |
Bore × Stroke (mm) |
Governing System |
Emission standard |
|
WPG3300*7 |
1500 |
3300/2640 |
3000/2400 |
16M55G3300/5 |
16 |
180×215 |
Electronic control |
Zero emission |
|
WPG3750*7 |
1500 |
3750/3000 |
3250/2600 |
16M55G3750/5 |
16 |
180×215 |
Electronic control |
Zero emission |
|
WPG4125*7 |
1500 |
4125/3300 |
3750/3000 |
16M55G4000/5 |
16 |
180×215 |
Electronic control |
Zero emission |
|
WPG3300*7 |
1500 |
3300/2640 |
3000/2400 |
16M55G4D2/5 |
16 |
180×215 |
Electronic control |
Non-emission/EPA Tier II |
|
WPG3750*7 |
1500 |
3750/3000 |
3250/2600 |
16M55G6D2/5 |
16 |
180×215 |
Electronic control |
Non-emission/EPA Tier II |
|
WPG4125*7 |
1500 |
4125/3300 |
3750/3000 |
16M55G8D2/5 |
16 |
180×215 |
Electronic control |
Non-emission/EPA Tier II |
|
WPG2640*76 |
1800 |
3300/2640 |
3000/2400 |
16M55G2640/6 |
16 |
180×215 |
Electronic control |
Zero emission |
|
WPG2800*76 |
1800 |
3520/2800 |
3200/2560 |
16M55G2800/6 |
16 |
180×215 |
Electronic control |
Zero emission |
|
WPG3000*76 |
1800 |
3750/3000 |
3300/2640 |
16M55G3000/6 |
16 |
180×215 |
Electronic control |
Zero emission |
|
WPG3300*76 |
1800 |
4125/3300 |
3750/3000 |
16M55G3300/6 |
16 |
180×215 |
Electronic control |
Zero emission |
|
WPG2640*76 |
1800 |
3300/2640 |
3000/2400 |
16M55G2D2/6 |
16 |
180×215 |
Electronic control |
Non-emission/EPA Tier II |
|
WPG2800*76 |
1800 |
3520/2800 |
3200/2560 |
16M55G4D2/6 |
16 |
180×215 |
Electronic control |
Non-emission/EPA Tier II |
|
WPG3000*76 |
1800 |
3750/3000 |
3300/2640 |
16M55G6D2/6 |
16 |
180×215 |
Electronic control |
Non-emission/EPA Tier II |
|
WPG3300*76 |
1800 |
4125/3300 |
3750/3000 |
16M55G8D2/6 |
16 |
180×215 |
Electronic control |
Non-emission/EPA Tier II |
