产品概述

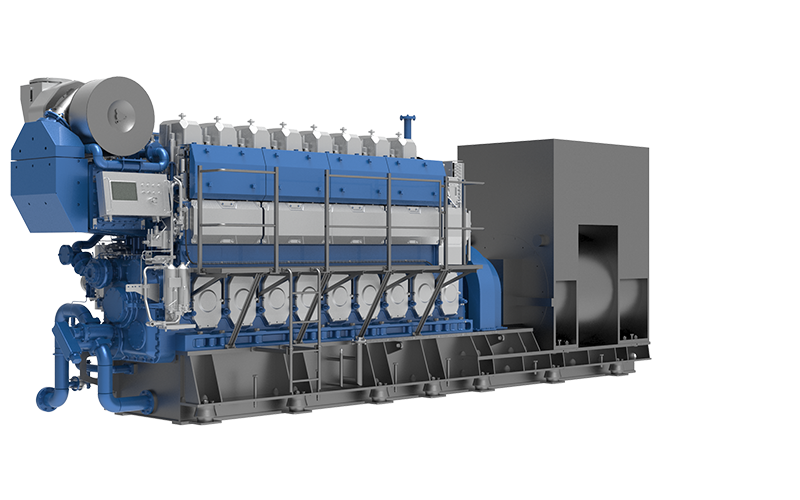

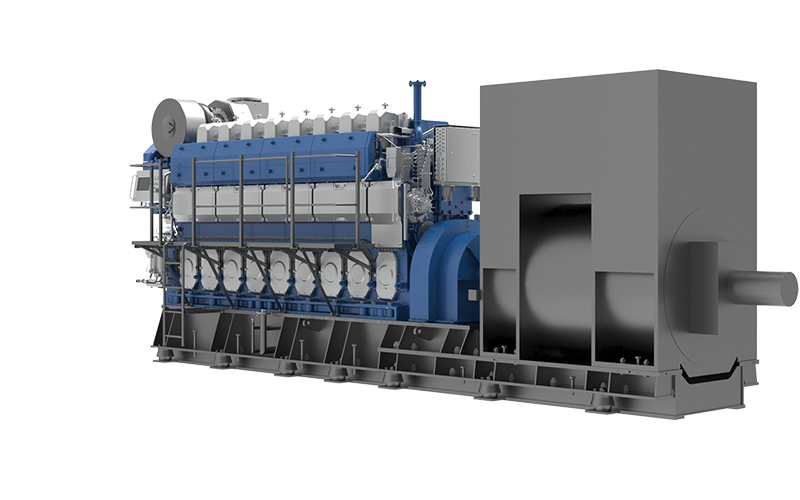

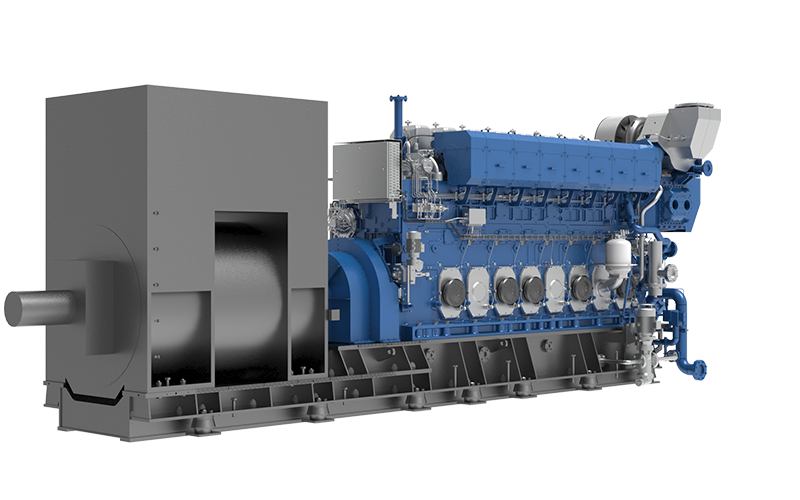

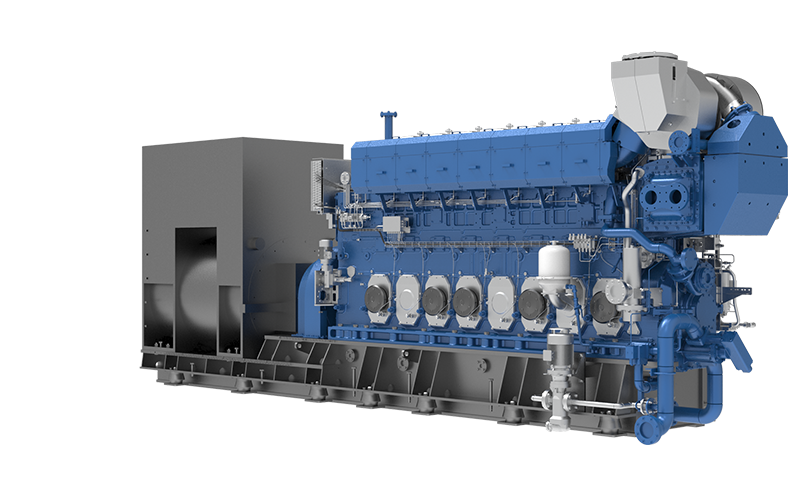

The WH28 series is a new generation of large-bore engines developed by Weichai, adopting cutting-edge global design concepts.
产品优势
Safe and reliable: Brand-new engine design concept featuring high-strength engine block, cylinder head, crankshaft, and connecting rods, ensuring a long diesel engine overhaul period
Powerful performance: High peak cylinder pressure design, delivering superior power density in its class
High practicality: Integrated design featuring individual cylinder heads for easy assembly/disassembly and reduced maintenance costs
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Genset Model |
Engine Model |
Displacement (L) |
Valves per Cylinder |
Continuous Power/Speed (kWm/rpm) |
Continuous Power (kVA/kW) |
Technical route |
|
WPGC3225B4 |
8WH28D2720-7.5 |
202 |
4 |
2720/750 |
3225/2580 |
Mechanical unit pump |
|
WPG3563B4 |
8WH28D3000-7.5 |
202 |
4 |
3000/750 |
3563/2850 |
Mechanical unit pump |
|
WPGC2580B46 |
8WH28D2720-7.2 |
202 |
4 |
2720/720 |
3225/2580 |
Mechanical unit pump |
|
WPGC2850B46 |
8WH28D3000-7.2 |
202 |
4 |
3000/720 |
3563/2850 |
Mechanical unit pump |
