产品概述

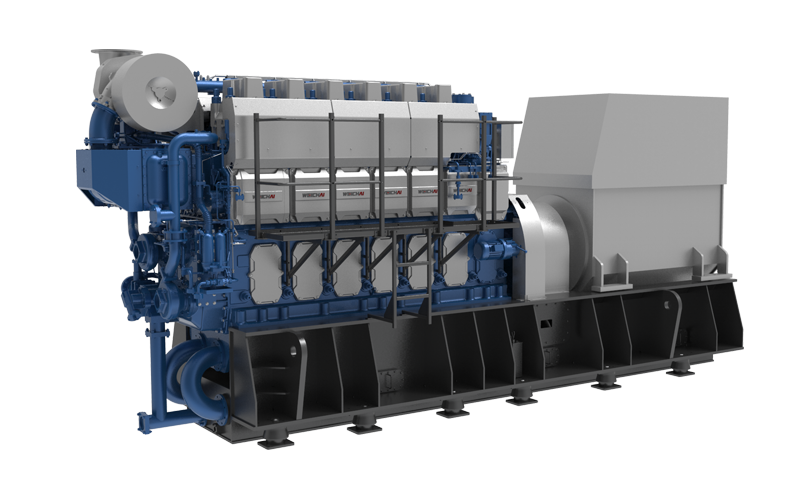

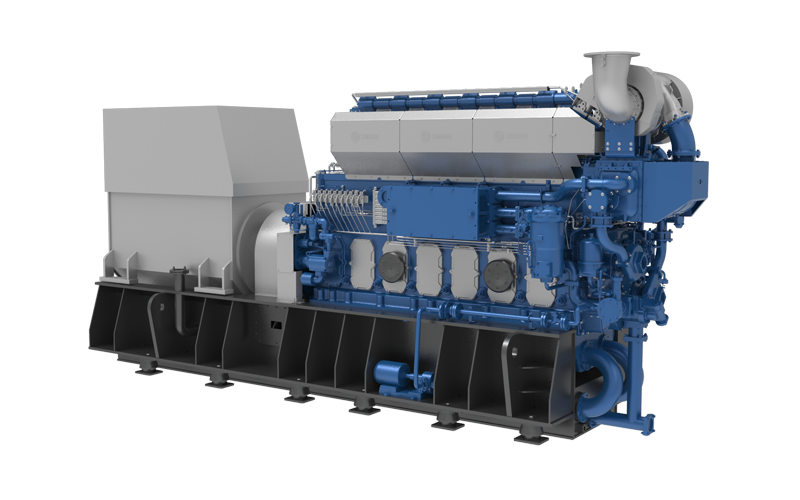

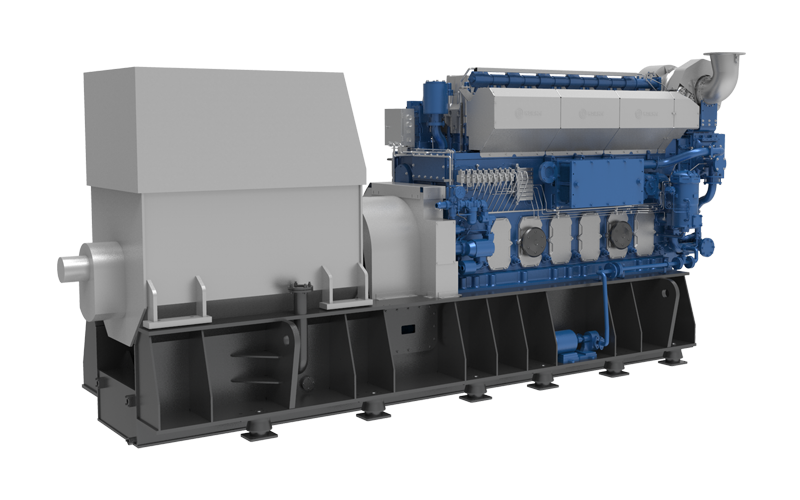

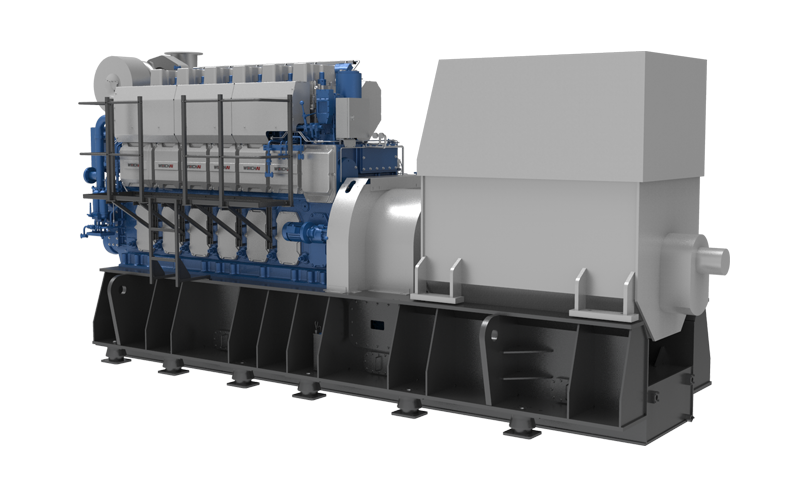

The WH25 series engine is a new generation of large-bore engine crafted by Weichai using cutting-edge design concepts.
产品优势
Safe and reliable: Advanced engine design concept, high-strength engine block, cylinder head, crankshaft, and connecting rod, with a long diesel engine overhaul interval.
Good fuel economy: Efficient combustion balancing power output, superior performance, and low fuel consumption.
High practicality: Integrated design with individual cylinder heads allows easy assembly and disassembly of complete units with low maintenance cost.
Highlights
Large-bore strong power output, heavy fuel oil compatibility, mature and stable technology
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Generator set model |
Engine Model |
Displacement (L) |
Number of valves per cylinder |
Continuous power / speed(kWm/rpm) |
Generator set continuous power (kVA/kWe) |
Technology roadmap |
|
WPGC2250B3 |
8WH25LD2000-7.5 |
129.5 |
4 |
2000/750 |
2250/1800 |
Mechanical unit pump |
|
WPGC2750B3 |
8WH25LD2450-1 |
129.5 |
4 |
2450/1000 |
2750/2200 |
Mechanical unit pump |
|
WPGC1600B36 |
8WH25LD1800-7.2 |
129.5 |
4 |
1800/720 |
2000/1600 |
Mechanical unit pump |
|
WPGC2000B36 |
8WH25LD2200-9 |
129.5 |
4 |
2200/900 |
2500/2000 |
Mechanical unit pump |
