WEICHAI

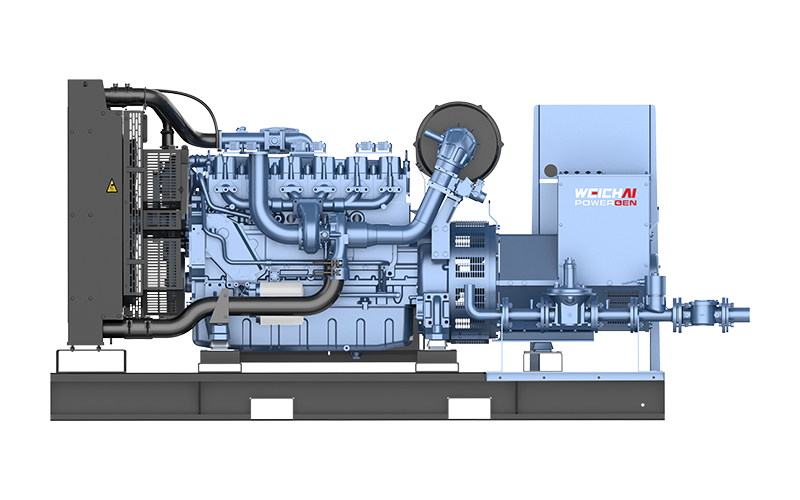

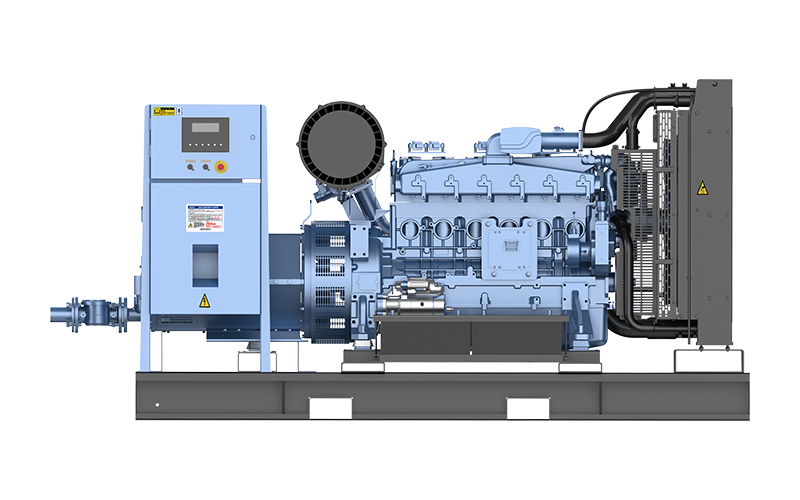

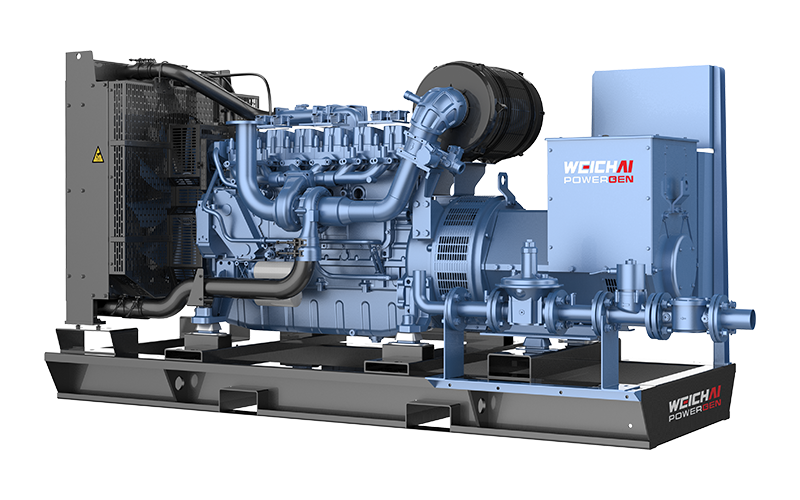

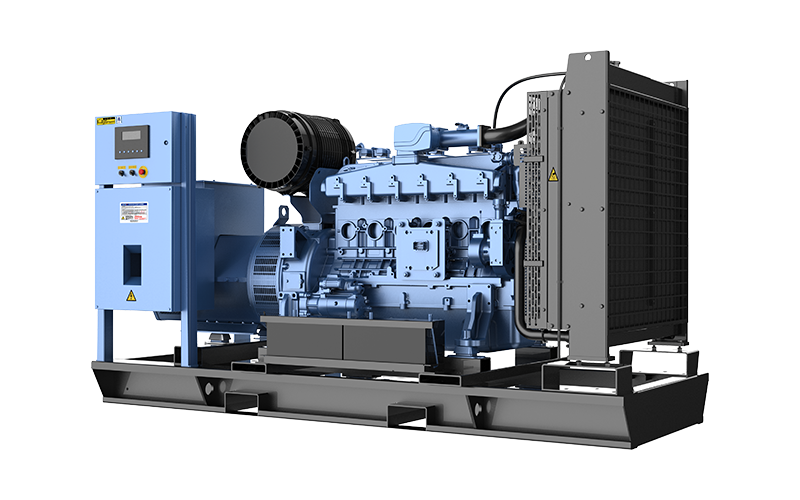

180 kVA – 225 kVA Standard Land-based Generator Set

Suitable for industrial warehousing, public utilities, oil fields, and mining applications

150, 180

功率范围/持续功率

Open, Silent

结构形式

产品概述

High reliability, excellent economy, strong environmental adaptability, and low maintenance costs, supporting customers in achieving energy transition and sustainability goals.

产品优势

Power Performance: High structural strength and mature electronic control system ensure stable operation across all working conditions

Intelligent Control: Equipped with a microcomputer-based intelligent controller and international brand circuit breakers to achieve automated genset control

High Reliability: Standard equipped with electromagnetic shut-off valves and multiple gas leakage protections, capable of operating in complex environments such as high temperatures, extreme cold, high altitudes, high humidity, and dusty conditions

High Economy: Reliable ignition, precise air-fuel ratio control, thorough combustion in each cylinder, low gas consumption, and low total lifecycle costs

产品规格

持续功率kWe
150, 180
产品系列
燃料
Natural gas
发动机型式
Inline
气缸数
6
缸径 × 行程mm
排量 L
9.7
机组尺寸(敞开式)mm
2999 × 1170 × 1780 (Open type)
重量(敞开式带散热器)kg
2140 (Open type with radiator)
重量(敞开式不带散热器)kg
Zero emission
结构形式
Open, Silent

备注:产品参数及图片仅供参考;如有变动,不另行通知。

型谱表

Genset Model

Engine Model

Displacement (L)

Speed (rpm)

Continuous Power (kVA/kW)

Prime Power (kVA/kW)

PG188*8NG

WP10D200E300NG

9.7

1500

150/120

180/150

PG180*86NG

WP10D238E301NG

9.7

1800

180/145

225/180
