产品概述

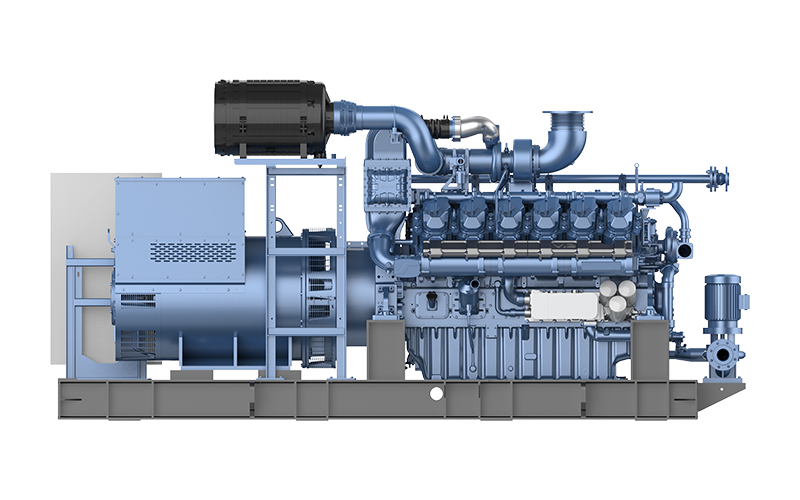

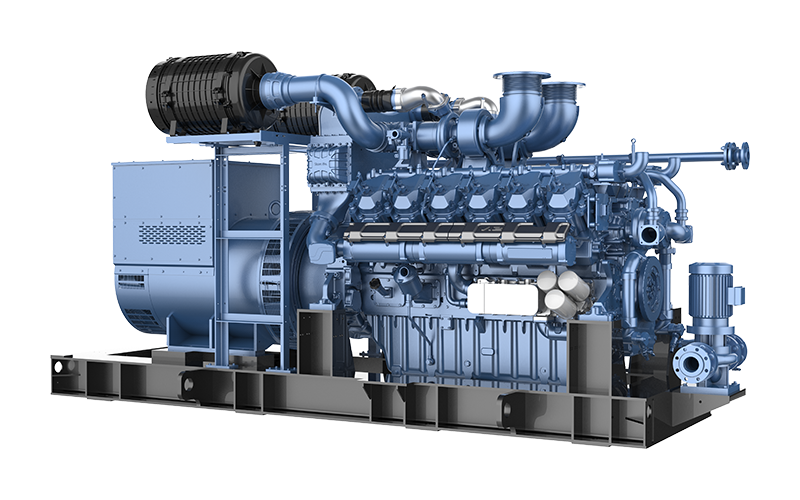

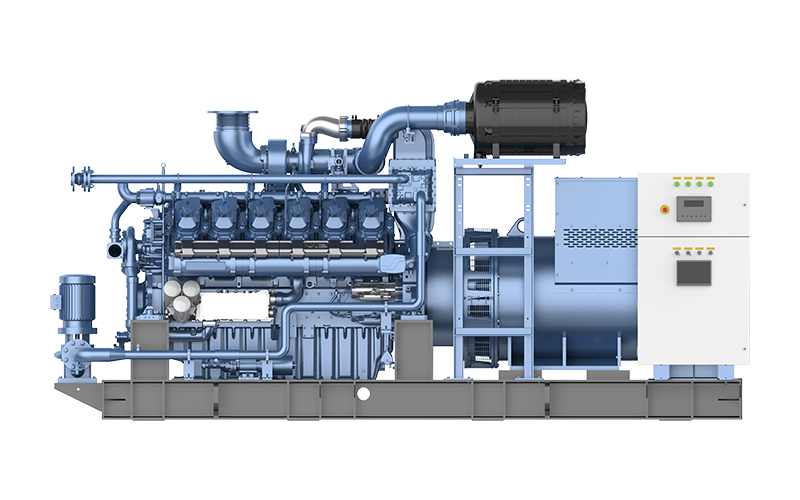

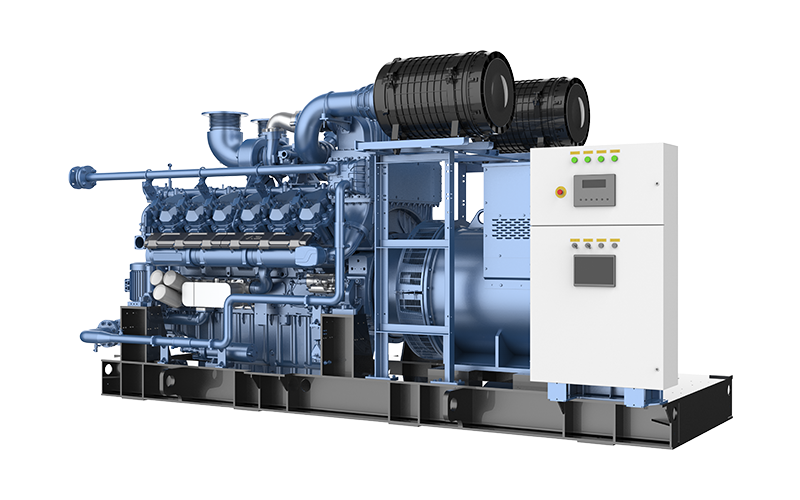

The 12M33NG series is a new generation of high power density engines independently developed by Weichai, featuring a compact structure and superior economy; The 12M33 gas engine has a power range of 550–900 kWm, suitable for 500–858 kWe generator sets.
产品优势
Combustion System: Utilizes open-chamber spark plug technology, resulting in high engine thermal efficiency
Air Intake System: High-efficiency turbocharger for optimized air intake and more efficient combustion
Superior NVH Performance: Utilizes a high-precision meshing gear train to achieve low engine vibration and noise
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Genset Model |
Engine Model |
Displacement (L) |
Speed (rpm) |
Continuous Power (kVA/kW) |
Prime Power (kW) |
|
PG1000*7NG |
12M33G10N0/5 |
39.2 |
1500 |
1060/850 |
/ |
|
PG900*76NG |
12M33G14N0/6 |
39.2 |
1800 |
1130/900 |
/ |
