产品概述

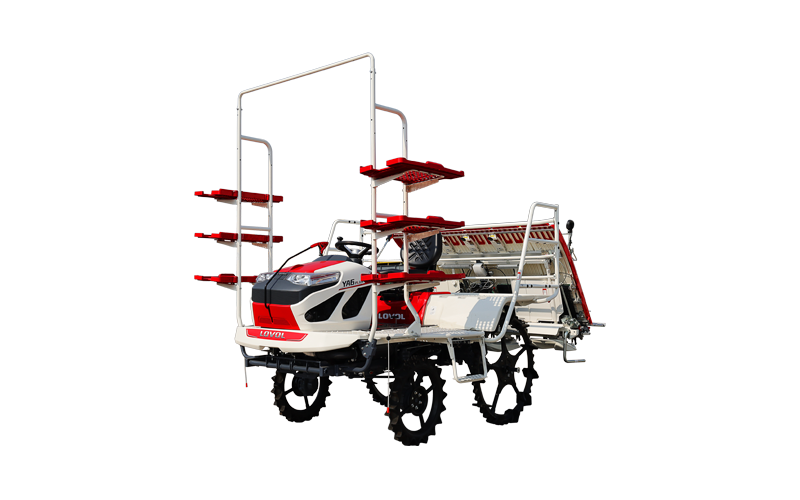

Lovol rice transplanters deliver high operating efficiency and stable and reliable performance. They are mainly used for the transplanting of mat-type and pot seedlings of rice, and can achieve multi-functional applications such as fertilization and land leveling. The machine is equipped with a 25 hp engine, a 1.5 m² working platform, Danfoss HST, and a reinforced chassis.Featuring four-wheel shock absorption and a shock-absorbing seat for comfortable operation;The guardrail of the seedling-loading pedal features reduced rail spacing to ensure the safety of personnel loading seedlings, and mounting holes for protective netting are reserved on the guardrail for user convenience;The large working platform facilitates seedling-loading operations while accommodating a large volume of seedlings for continuous long-duration operation.The machine is equipped with a 25-horsepower engine, a 1.5 m² working platform, Danfoss HST and an enhanced chassis. Four-wheel shock absorption and shock-absorbing seats deliver superior riding comfort. The guardrails on the seedling loading step are densely arranged to protect operators during seedling feeding. Pre-drilled holes for safety net installation are reserved on the guardrails for user convenience. The spacious working platform facilitates seedling loading and accommodates a large volume of seedlings, enabling long-duration continuous operation.
产品优势
产品规格
|
Overall Dimensions(mm) |
Total Weight (kg) |
Engine Power(PS) |
Working Efficiency(h㎡/h) |
Fuel Tank Capacity(L) |
Front Wheel Diameter × Width(mm) |
Rear Wheel Diameter × Width (mm) |
Wheel Track (mm) |
Minimum Ground Clearance(mm) |
Working Rows(rows) |
Row Spacing(mm) |
Plant Spacing(mm) |
Transplanting Depth (mm) |
|
3350x2220x2580 |
845 |
25 |
0.5~0.78 |
34 |
∅650×95 |
∅950×150 |
1220 |
500 |
6 |
300 |
(*1)100,120,140,160,180,210,240 |
10~55(7 grades) |
备注:产品参数及图片仅供参考;如有变动,不另行通知。
