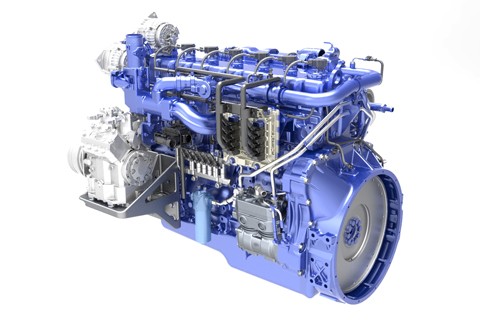

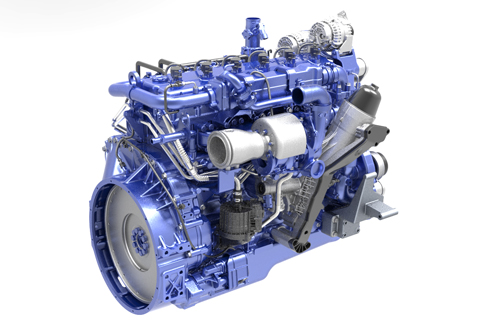

WP10.5HNG series engines for road buses
Compact structure, high reliability, high power performance and excellent economy.
Compact structure, high reliability, high power performance and excellent economy.
Weichai’s new generation gas engine products; power range 257-301kW, Euro VI emissions, and applied in luxury coach 12 meters and above.
| Maximum Power | 410 hp301 kW |
| Minimum Power | 350 hp257 kW |
| Maximum Torque / Speed | 1950/（1100-1300） N·m / r/min |
| Emissions | Euro VI |
| Series | WP10.5HNG |
| Fuel | CNG/LNG |
| Type | Inline 6-cylinder, four-stroke engine |
| Cylinder Number | 6 |
| Valve Number | 4 |
| Bore | 122 mm |
| Stroke | 150 mm |
| Displacement | 10.5 L |
| Aspiration | Turbocharged and intercooled |
| Compression Ratio | 11.5 ± 0.5:1 |
| Combustion System | Single point injection |
| Length | 1250 mm |
| Width | 1026 mm |
| Height | 1170 mm |
| Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 835 kg |
Remarks: Product parameters and pictures are for reference only; subject to change without notice.
