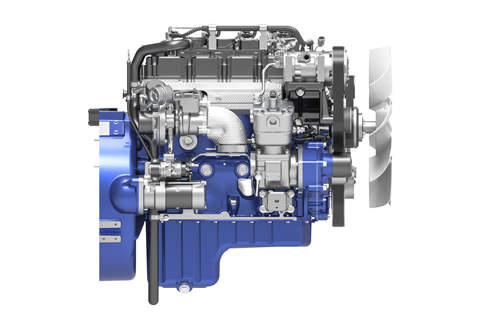

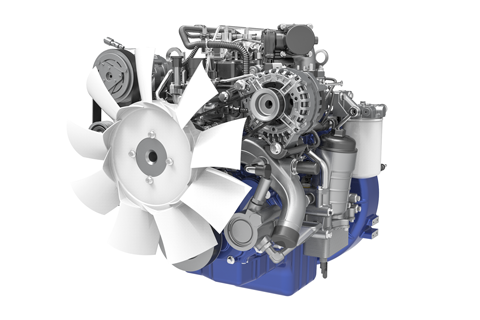

WP3.6N series engines for tractors
Compact structure, high reliability, high power performance and excellent economy.
Compact structure, high reliability, high power performance and excellent economy.
High power, great torque (great torque at low engine speed), customizable NVH performance design, low noise level, low vibration intensity, low energy consumption, and high reliability. Power range: 63-89kW. EU Stage3A emission standards. Application: 85-120Ps tractors.
| Maximum Power | 121 hp89 kW |
| Minimum Power | 86 hp63 kW |
| Maximum Torque / Speed | 380/(1600) N·m / r/min |
| Emissions | EU Stage 3A |
| Series | WP3.6N |
| Fuel | Diesel |
| Type | Inline 4-cylinder, four-stroke engine |
| Cylinder Number | 4 |
| Valve Number | 4 |
| Bore | 100 mm |
| Stroke | 114 mm |
| Displacement | 3.58 L |
| Aspiration | T/TAA |
| Compression Ratio | 17:1 |
| Combustion System | Electronically controlled high-pressure common-rail |
| Length | 916 mm |
| Width | 575 mm |
| Height | 931 mm |
| Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 400 kg |
Remarks: Product parameters and pictures are for reference only; subject to change without notice.
| Model | Rated Power / Speed （kW/rpm） |
Maximum Torque / Speed （N·m/rpm） |
Type | Displacement （L） |
Net Weight | Idling |
|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - |
