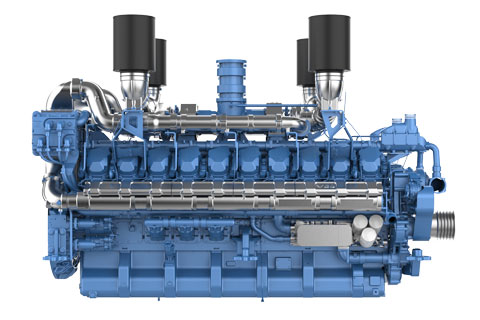

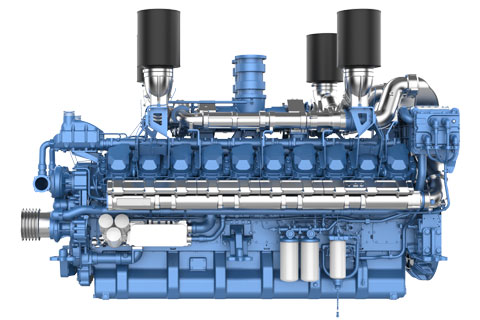

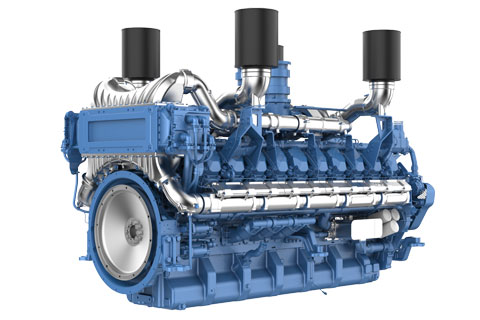

20M33 for Industrial power
The 20M33 series engine has the advantages of small size, light weight, high reliability, good economy, convenient maintenance and good environmental adaptability.
The 20M33 series engine has the advantages of small size, light weight, high reliability, good economy, convenient maintenance and good environmental adaptability.
The 20M33 is the next generation of the high-end engine M33 platform; the power is 2237kW, which meets China's non-road stage IⅢ emission requirements.
| Maximum Power | 3000 hp2237 kW |
| Minimum Power | 3000 hp2237 kW |
| Maximum Torque / Speed | 12100/1600 N·m / r/min |
| Emissions | China non-road Stage Ⅲ |
| Series | 20M33 |
| Fuel | Diesel |
| Type | V-type 20-cylinder, four-stroke engine |
| Cylinder Number | 20 |
| Valve Number | 4 |
| Bore | 150 mm |
| Stroke | 185 mm |
| Displacement | 65.4 L |
| Aspiration | Turbocharged and intercooled |
| Compression Ratio | 15:1 |
| Combustion System | Electronically controlled high pressure common rail |
| Length | 3278 mm |
| Width | 1501 mm |
| Height | 1716 mm |
| Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 6650 kg |
Remarks: Product parameters and pictures are for reference only; subject to change without notice.
| Model | PrimePower （kW） |
Speed （rpm） |
Application | Speed Regulation Mode | Emission | Standby Power （kW） |
|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - |
