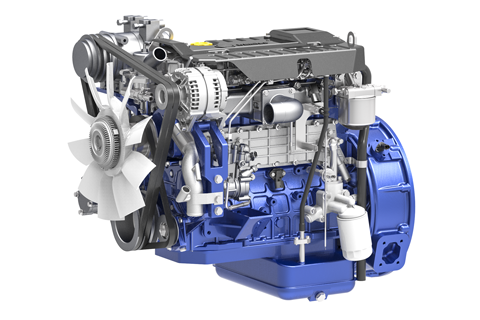

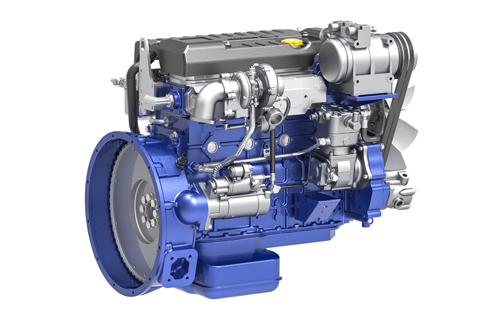

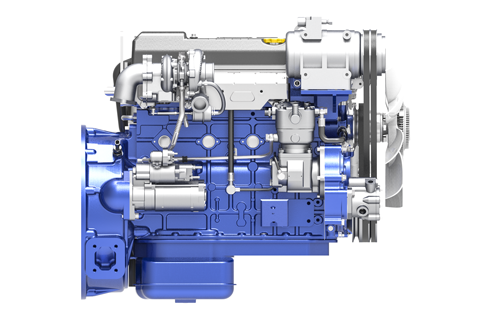

WP3.7 series engines for light-duty freight truck
Compact structure, high reliability, high power performance and excellent economy.
Compact structure, high reliability, high power performance and excellent economy.
Power range: 75-103kW. Euro IV/V emission standards. Application: light-duty trucks of category N2 and N3.
| Maximum Power | 140 hp103 kW |
| Minimum Power | 102 hp75 kW |
| Maximum Torque / Speed | 430/（1200-2200） N·m / r/min |
| Emissions | Euro IV/V |
| Series | WP3.7 |
| Fuel | Diesel |
| EngineType | Inline 4-cylinder, four-stroke engine |
| Cylinder Number | 4 |
| Valve Number | 2 |
| Bore | 102 mm |
| Stroke | 112 mm |
| Displacement | 3.66 L |
| Aspiration | Turbocharged and intercooled |
| Compression Ratio | 17:1 |
| Combustion System | Electronically controlled high-pressure common-rail |
| Length | 953 mm |
| Width | 661 mm |
| Height | 789 mm |
| Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 340 kg |
Remarks: Product parameters and pictures are for reference only; subject to change without notice.
| Model | Rated Power/ Speed （kW/rpm） |
Maximum Torque / Speed （N.m/rpm） |
Valve Number | Technique Route | Displacement （L） |
Adaptable Vehicle |
|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - |
