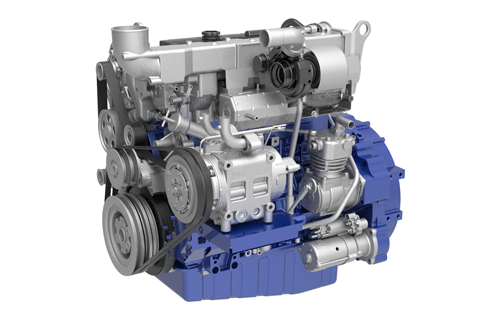

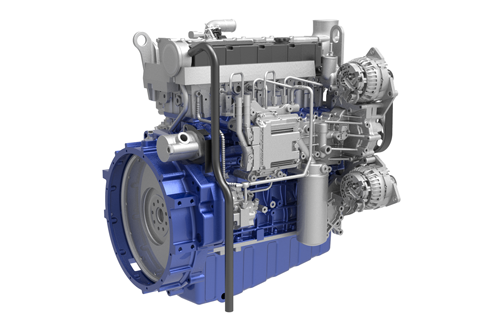

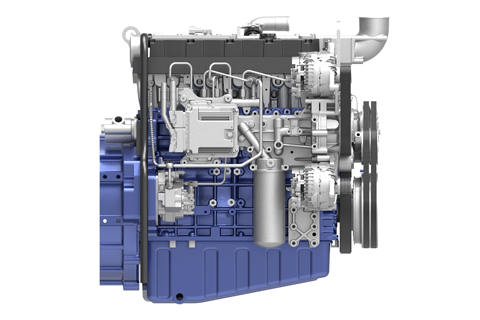

WP5 engines for special-purpose vehicles
Compact structure, high reliability, high power performance and excellent economy.
Compact structure, high reliability, high power performance and excellent economy.
Engine model within Weichai medium-duty engine platform. Power range: 132-162kW. Euro III/IV/V emission standards. Application: 10-11.5m school buses.
| Maximum Power | 220 hp162 kW |
| Minimum Power | 180 hp132 kW |
| Maximum Torque / Speed | 840/（1200-1700） N.m / r/min |
| Emissions | Euro III/IV/V |
| Series | WP5 |
| Fuel | Diesel |
| Type | Inline 4-cylinder, four-stroke engine |
| Cylinder Number | 4 |
| Valve Number | 4 |
| Bore | 108 mm |
| Stroke | 136 mm |
| Displacement | 4.98 L |
| Aspiration | Turbocharged and intercooled |
| Compression Ratio | 17.5:1 |
| Combustion System | Electronically controlled high-pressure common-rail |
| Length | 924.8 mm |
| Width | 780.8 mm |
| Height | 969.4 mm |
| Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 600 kg |
Remarks: Product parameters and pictures are for reference only; subject to change without notice.
| Model | Rated Power/ Speed （kW/rpm） |
Maximum Torque （N.m/rpm） |
Displacement （L） |
Emission | Technique Route | Adaptable Vehicle |
|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - |
