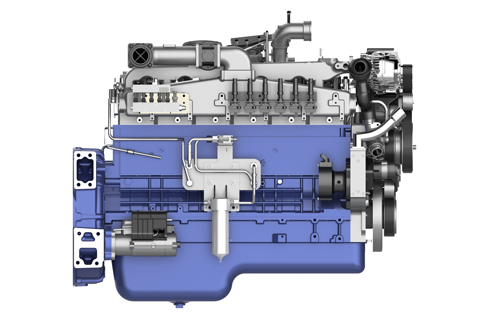

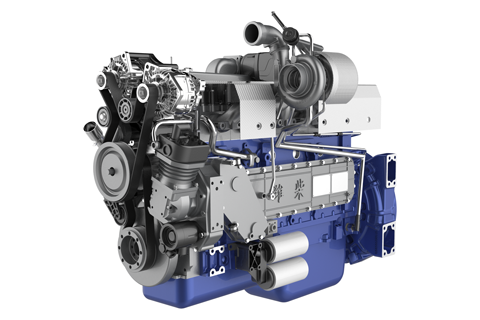

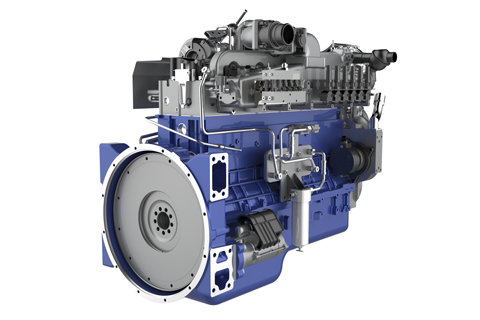

WP10NG series engines for road buses
High reliability, excellent economy and high adaptability.
High reliability, excellent economy and high adaptability.
Fuel gas-powered engines highly recommended by Weichai. Power range: 206-247kW. Euro V emission standard. Application: 11-12m buses.
| Maximum Power | 336 hp247 kW |
| Minimum Power | 280 hp206 kW |
| Maximum Torque / Speed | 1450/（1200-1500） N.m / r/min |
| Emissions | Euro V |
| Series | WP10NG |
| Fuel | Natural Gas |
| Type | Inline 6-cylinder, four-stroke engine |
| Cylinder Number | 6 |
| Valve Number | 2/4 |
| Bore | 126 mm |
| Stroke | 130 mm |
| Displacement | 9.726 L |
| Aspiration | Turbocharged and intercooled |
| Compression Ratio | 11.6:1 |
| Combustion System | Electronically controlled single-point injection |
| Length | 1384 mm |
| Width | 820 mm |
| Height | 1153 mm |
| Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 875 kg |
Remarks: Product parameters and pictures are for reference only; subject to change without notice.
| Model | Rated Power/ Speed （kW/rpm） |
Maximum Torque （N.m/rpm） |
Displacement （L） |
Emission | Technique Route | Adaptable Vehicle |
|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - |
