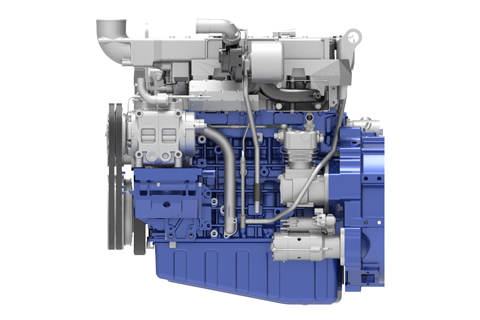

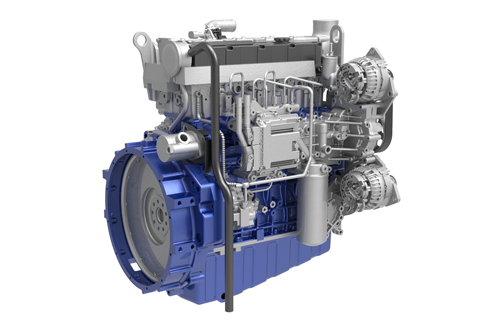

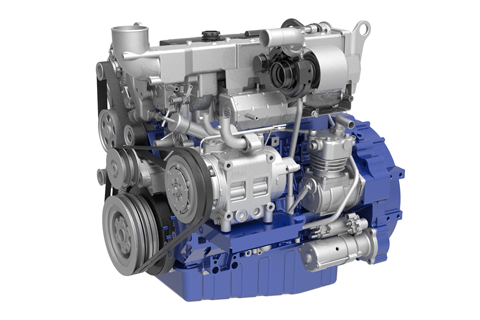

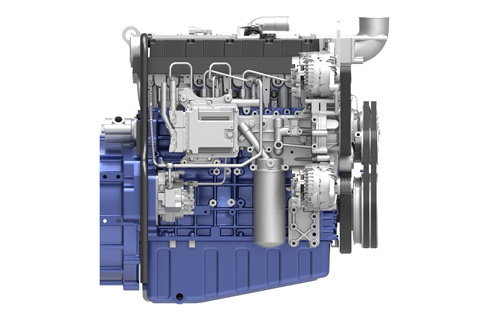

WP5 series engines for city buses
Compact structure, high reliability, high power performance and excellent economy.
Compact structure, high reliability, high power performance and excellent economy.
Engine model within Weichai medium-duty engine platform. Power range: 132-162kW. Euro III/IV/V emission standards. Application: 8-9m city buses.
| Maximum Power | 220 hp162 kW |
| Minimum Power | 180 hp132 kW |
| Maximum Torque / Speed | 840/（1200-1700） N.m / r/min |
| Emissions | Euro III/IV/V |
| Series | WP5 |
| Fuel | Diesel |
| Type | Inline 4-cylinder, four-stroke engine |
| Cylinder Number | 4 |
| Valve Number | 4 |
| Bore | 108 mm |
| Stroke | 136 mm |
| Displacement | 4.98 L |
| Aspiration | Turbocharged and intercooled |
| Compression Ratio | 17.5:1 |
| Combustion System | Electronically controlled high-pressure common-rail |
| Length | 924.8 mm |
| Width | 780.8 mm |
| Height | 969.4 mm |
| Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 600 kg |
Remarks: Product parameters and pictures are for reference only; subject to change without notice.
| Model | Rated Power/ Speed （kW/rpm） |
Maximum Torque （N.m/rpm） |
Displacement （L） |
Emission | Technique Route | Adaptable Vehicle |
|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - |
