产品概述

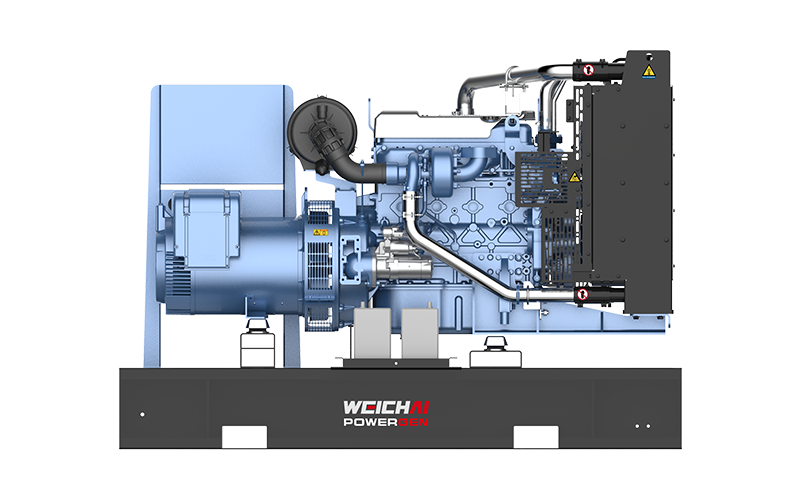

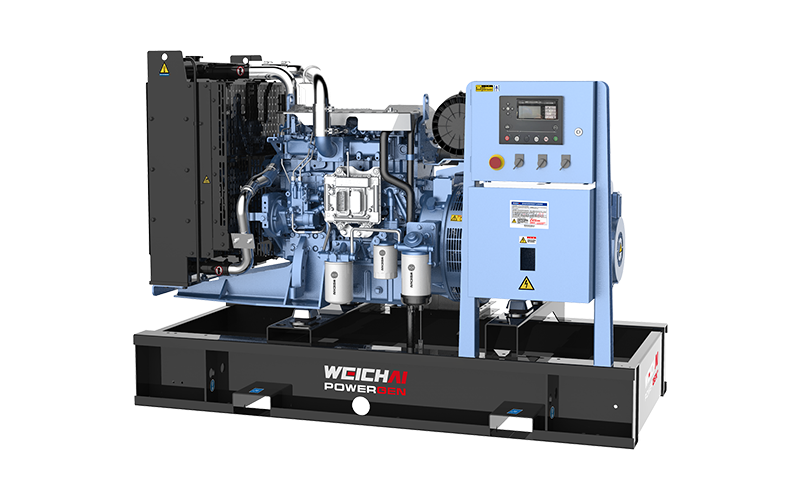

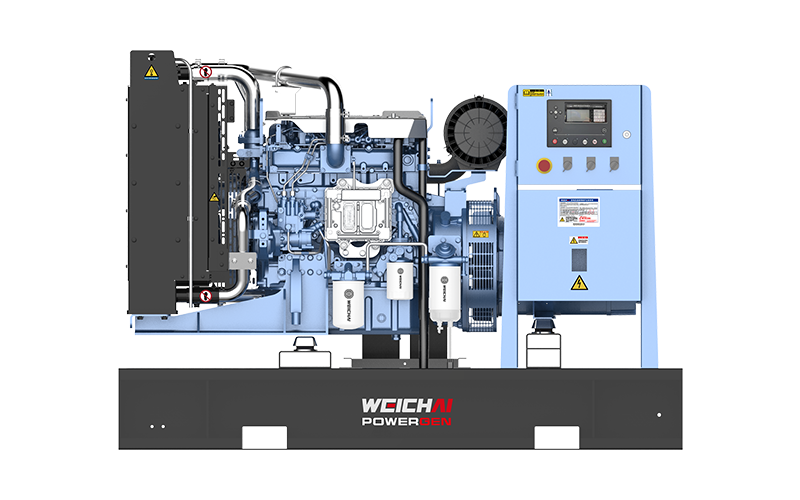

The 63-110 kVA series is equipped with the new-generation Weichai WP4.1 engine, featuring high power density, a stable power output of 50-100 kW, superior fuel efficiency, extended oil change intervals, and excellent economic performance.
产品优势
Fuel System: High injection pressure ensures high engine power and excellent fuel atomization for superior fuel economy
Air Intake System: High-efficiency turbocharger for optimized air intake and more efficient combustion
Superior NVH Performance: Utilizes pilot injection technology and a high-precision meshing gear train to achieve low engine vibration and noise
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
|
Rated speed (rpm) |
Standby Power (kVA/kW) |
Prime Power (kVA/kW) |
Weichai Engine Model |
Cylinders |
Bore × Stroke (mm) |
Governing System |
Emission standard |
|
1500 |
70/55 |
63/50 |
WP4.1D66E200 |
4 |
105×118 |
Electronic Governor |
Non-Road Emission Exempt |
|
1500 |
88/70 |
80/64 |
WP4.1D80E200 |
4 |
105×118 |
Electronic Governor |
Non-Road Emission Exempt |
|
1500 |
110/88 |
100/80 |
WP4.1D100E200 |
4 |
105×118 |
Electronic Governor |
Non-Road Emission Exempt |
|
1800 |
82/66 |
75/60 |
WP4.1D80E201 |
4 |
105×118 |
Electronic Governor |
Non-Road Emission Exempt |
|
1800 |
100/80 |
93/74 |
WP4.1D95E201 |
4 |
105×118 |
Electronic Governor |
Non-Road Emission Exempt |
|
1800 |
125/100 |
113/90 |
WP4.1D115E201 |
4 |
105×118 |
Electronic Governor |
Non-Road Emission Exempt |
