产品概述

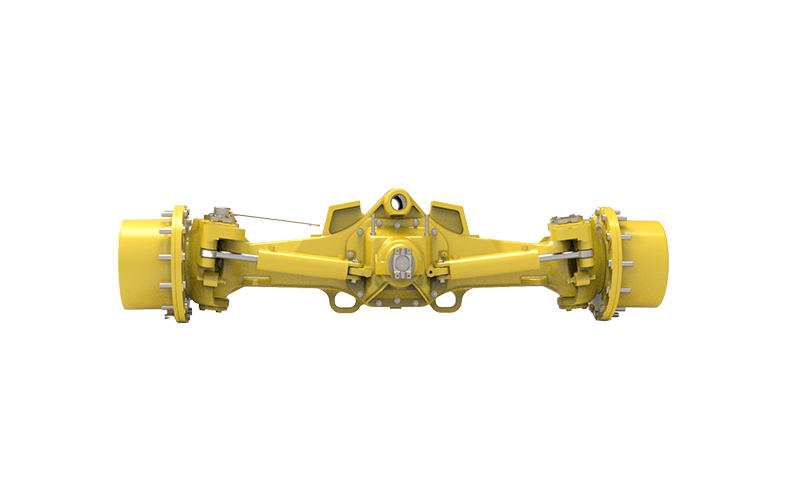

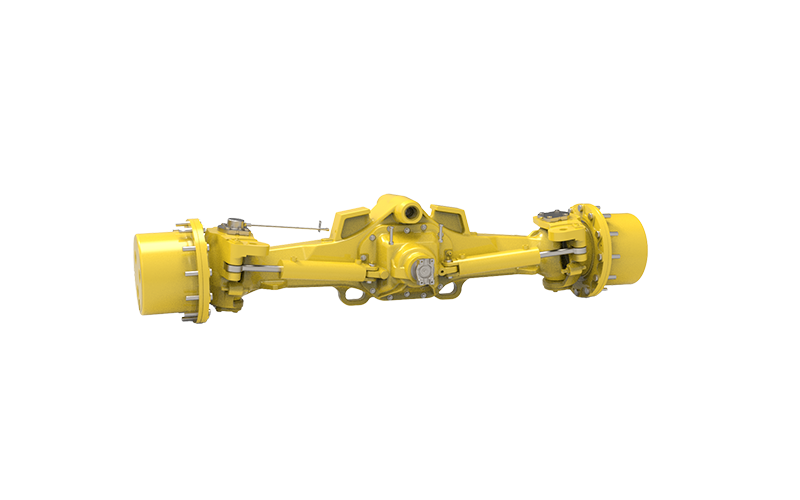

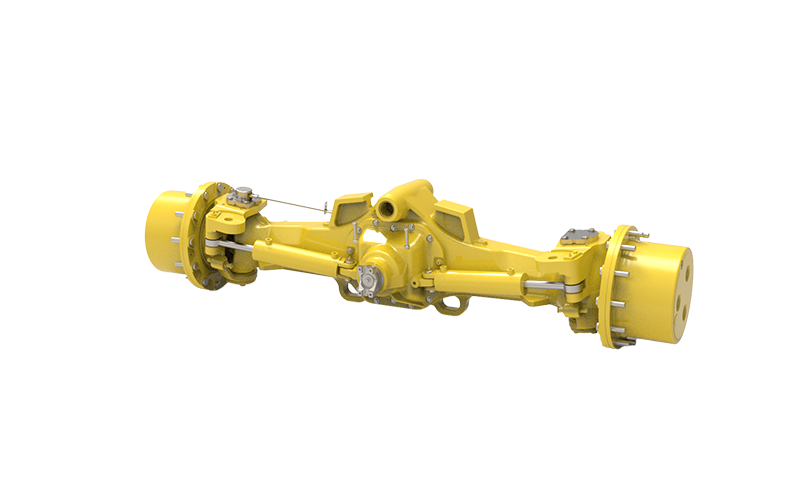

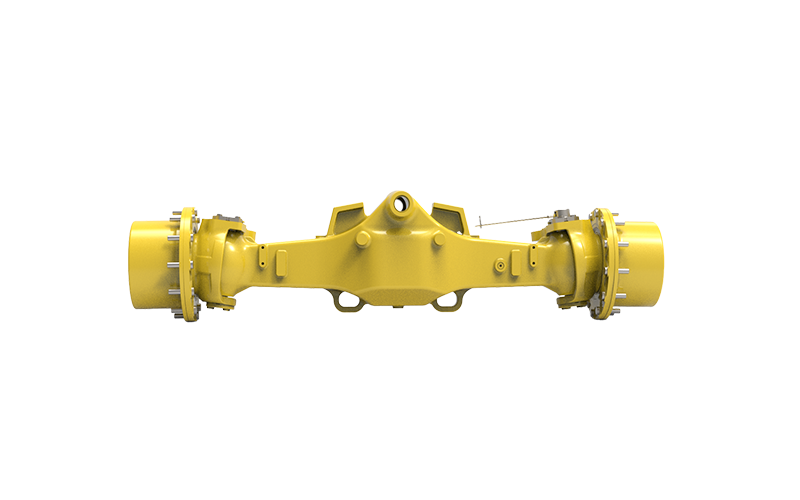

Hande agricultural machinery axles offer leading advantages in reliability, efficiency, and sealing performance, delivering maximum value to customers.
产品优势
High Reliability: Manufactured with high-strength ductile iron, improving load-bearing performance by 10–12%. Features equal-height tooth design for a 10% increase in reliability, and a 4% larger differential sphere diameter, making it ideal for low-speed, high-torque applications.
High Sealing: The main reduction input oil seal and hub oil seal utilize imported cassette seals, while the dual universal joint shaft oil seal employs a high-strength double-lip oil seal.
产品规格
|
Rated Dynamic Load (t) |
9 |
|
Developed Axle Ratios |
21.583 |
|
Rated Axle Output Torque (N·m) |
43000 |
|
Wheel Bolt Pitch Circle Diameter (mm) |
Φ425 |
|
Wheel Bolt Specification |
24×M22×1.5 |
|
Rim Mounting Face Distance (mm) |
1890 |
|
Target applications |
320–350 PS agricultural equipment |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
